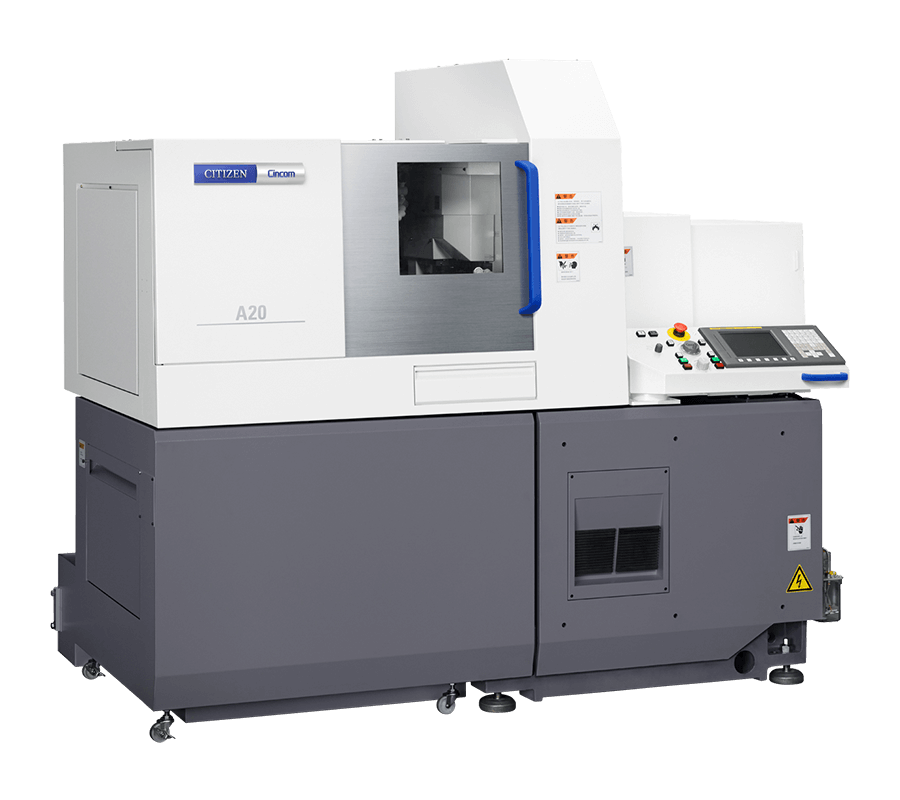

Sliding Headstock Type Automatic CNC Lathe
Machine Specifications

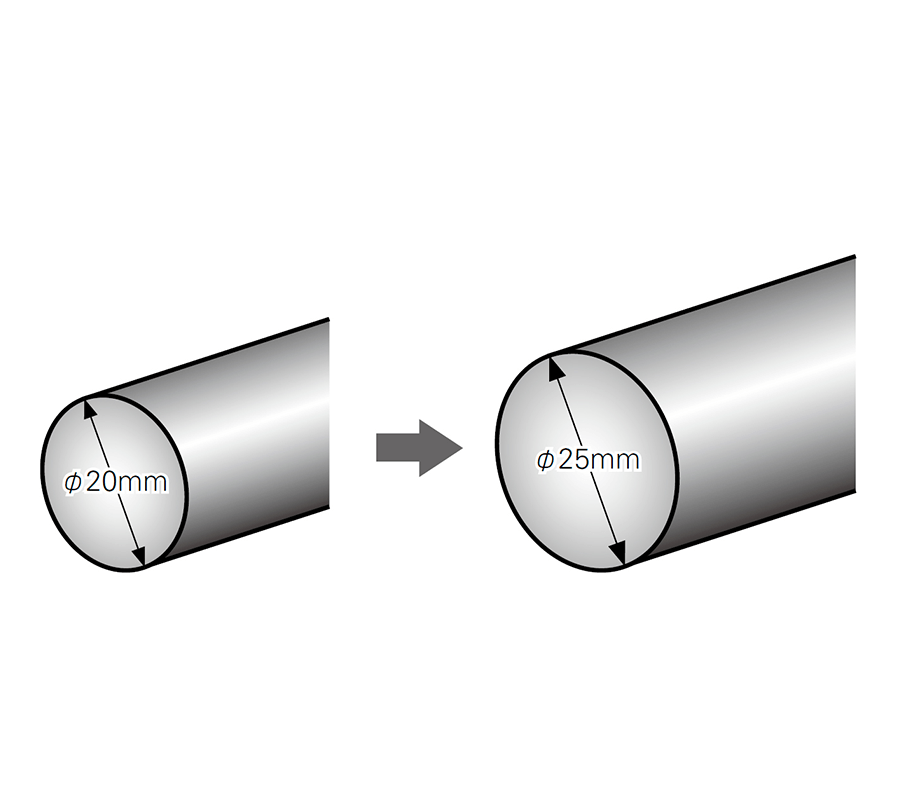

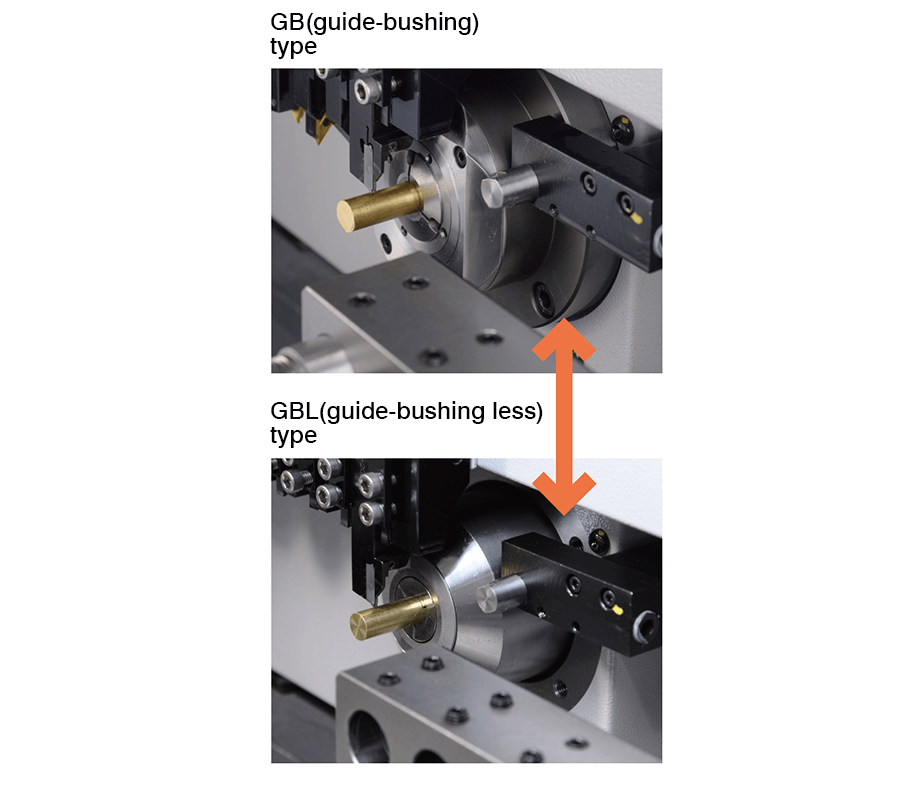

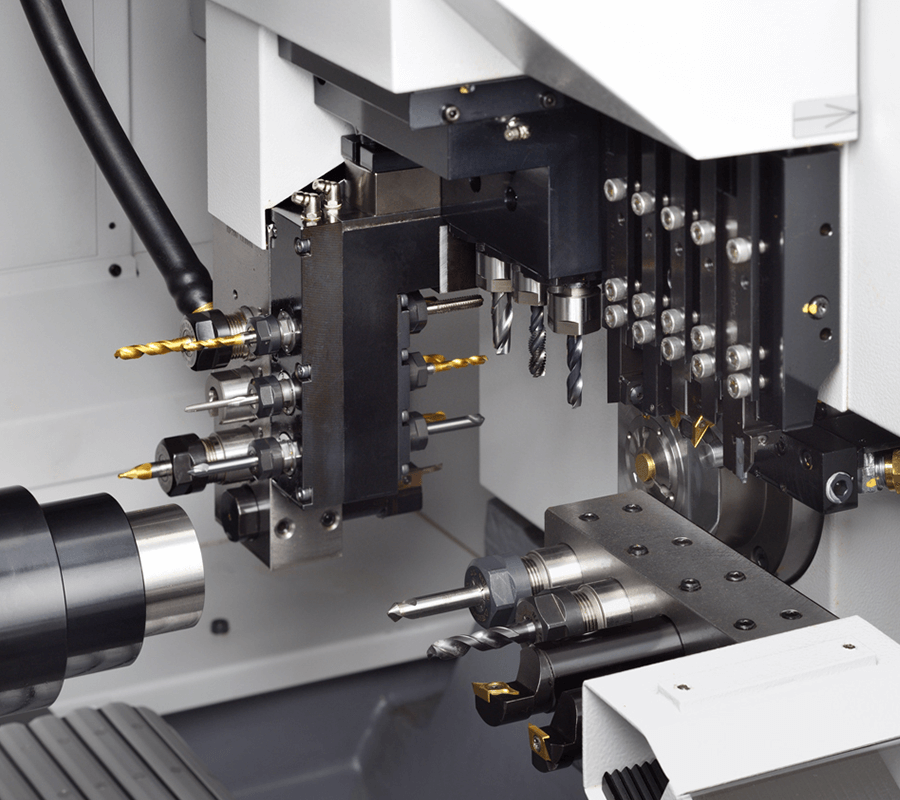

| Item | A20VII | |
|---|---|---|
| Maximum machining diameter | 20mm Dia. | |
| Maximum machining length | Guide-bushing | 200mm |
| Guide-bushing-less | 2.5D(Max. 55mm) | |
| Maximum drilling diameter for main spindle | 10mm Dia. | |
| Maximum tapping diameter for main spindle (tap,die) | M8 | |
| Spindle speed | Max.10,000min-1 | |
| Maximum drilling diameter for rotary tool | 7mm Dia. | |
| Maximum tapping diameter for rotary tool | M6 | |
| Spindle speed of the gang rotary tool | Max.6,000min-1(rating4,800min-1) | |
| Maximum chuck diameter of back spindle | 20mm Dia. | |
| Maximum protrusion length of the back spindle workpiece | 50mm | |
| Maximum drilling diameter in back machining process | 8mm Dia. | |
| Maximum tapping diameter in back machining process | M6 | |
| Back spindle speed | Max.8,000min-1 | |
| Number of tools to be mounted | 21 | |
| Tool size | Turning tool | 12mm Sq. (13mm Sq., 16mm Sq.) |
| Rapid feed rate | X1 axis | 18m/min |
| X2 axis | 32m/min | |
| Y axis | 32m/min | |
| Z1 axis | 32m/min | |
| Z2 axis | 32m/min | |
| Motors | For spindle drive | 2.2/3.7kW |
| For tool spindle drive | 0.75kW | |
| For back spindle drive | 1.1/1.5kW | |
| For cutting coolant oil | 0.4kW | |
| Rated power consumption | 7.1kVA | |
| Load operation average power | 4.1kVA | |
| Center height | 1,050mm | |
| Weight | 2,200kg | |
