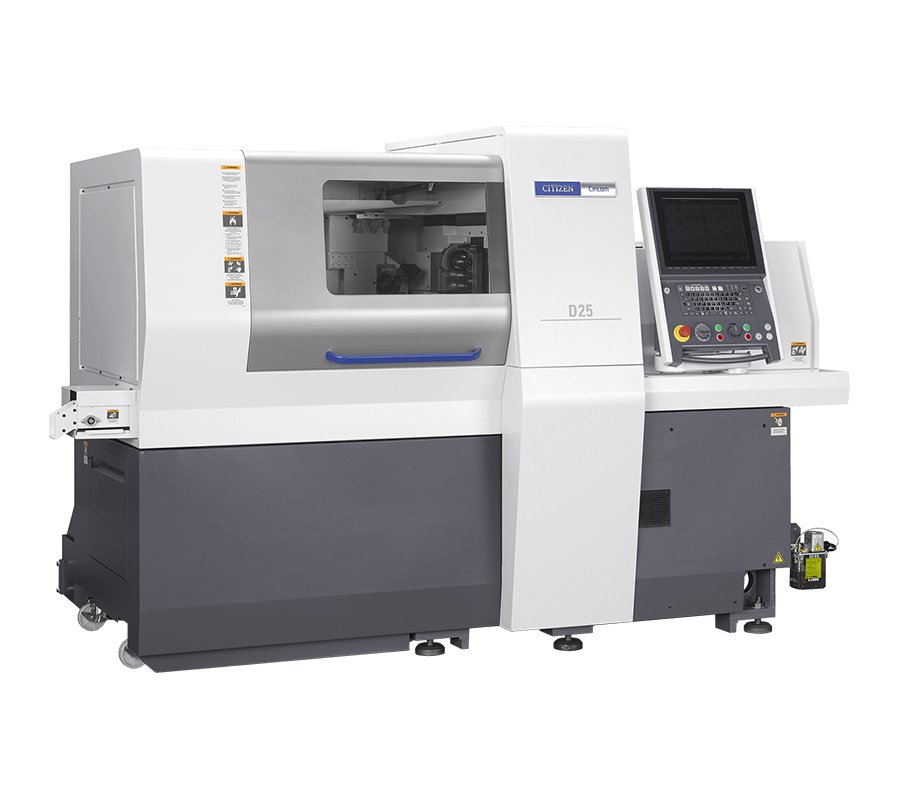

Sliding Headstock Type Automatic CNC Lathe

Cincom D25

  • It incorporates the B axis function on the structure with the double gang tool post, delivering both combined machining performance and high productivity.

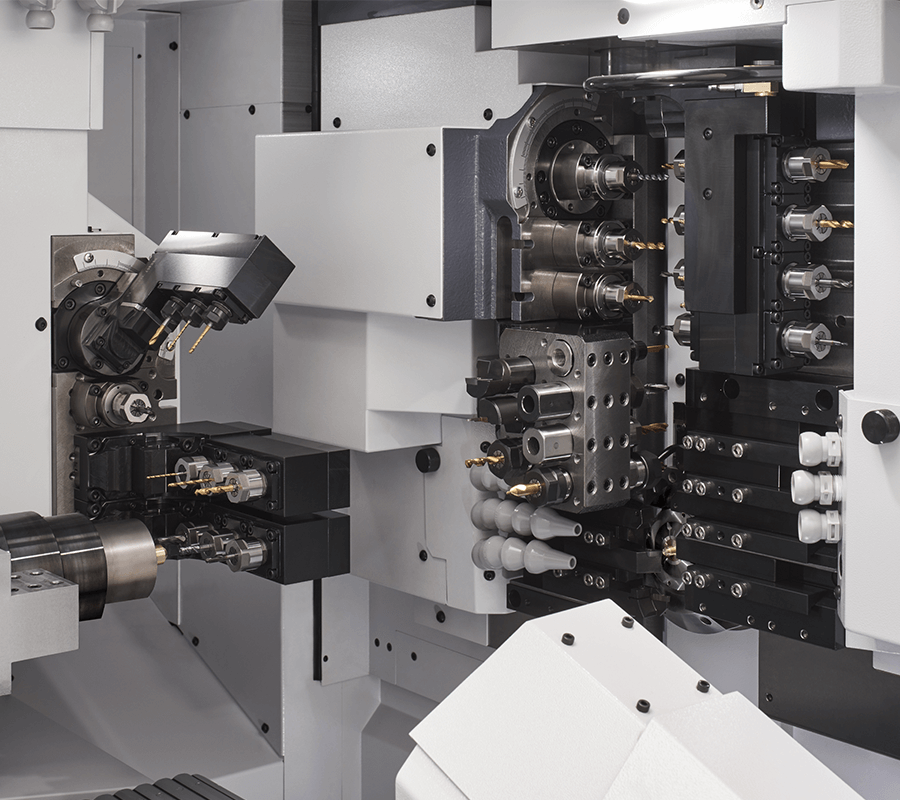

  • Maximum of 59 tools can now be mounted on the machine structure with the double gang tool post, enabling simultaneous machining and reducing the non-cutting time to achieve more productivity.

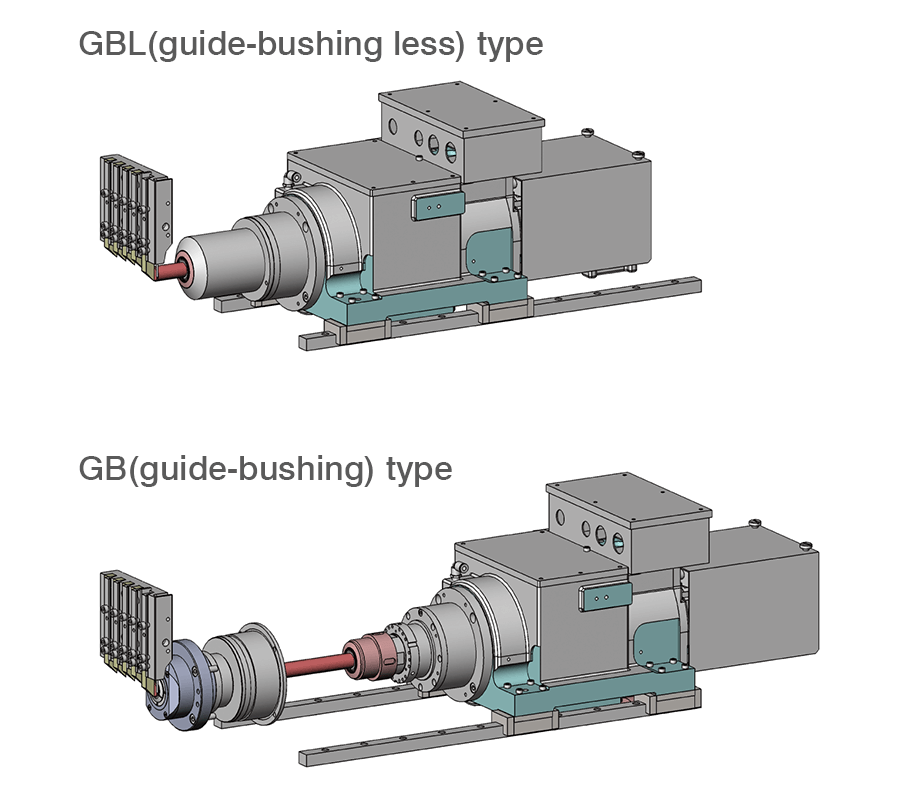

  • It can hold more tools, and comes standard with superior motors, as well as functions such as switching between GB and GBL machining.

Machine Specifications

Maximum machining diameter25mm Dia.
Maximum machining lengthGuide-bushing250mm
Maximum drilling diameter for main spindle12mm Dia.
Maximum front tapping diameter (Cut tap)M10
Spindle speedMax.10,000min-1
Maximum drilling diameter for rotary tool10mm Dia.
Maximum tapping diameter for gang rotary tool (Cut tap)M8
Spindle speed of the gang rotary toolMax.9,000min-1
Maximum chuck diameter of back spindle25mm Dia.
Maximum protrusion length of the back spindle workpiece50mm
Maximum drilling diameter in back machining process12mm Dia.
Maximum tapping diameter in back machining processM10
Back spindle speedMax.10,000min-1
Number of tools to be mounted5943
Tool sizeTurning tool16mm Sq./19mm Sq.
Sleeve25.4mm Dia.
Rapid feed rateZ2 axis24m/min
Axes other than the above32m/min
MotorsFor spindle drive3.7/5.5kW
For tool spindle drive2.2kW
For back spindle drive2.2/3.7kW
For driving rotary tools on the back tool post1.0kW
Rated power consumption13kVA
Load operation average power7.1kVA
Center height1,050mm
