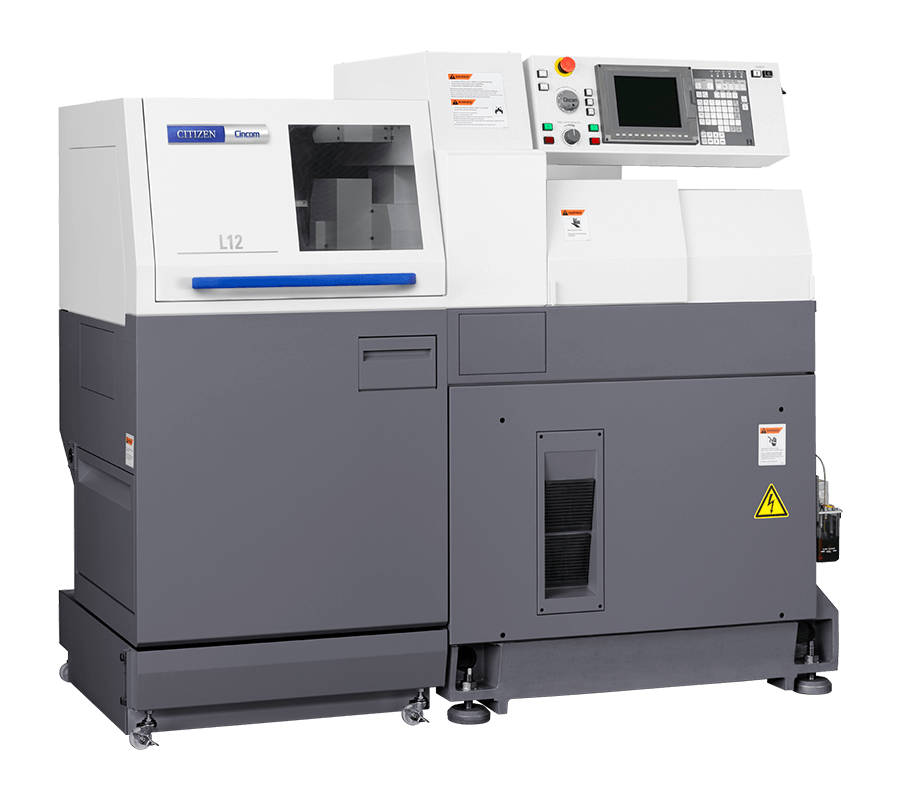

Cincom L12VII

It realizes increasing the maximum speed of not only the main spindle but also the back spindle and rotary tools. In addition to simultaneous machining with 5-axis control, it reduces cycle-time
It adopts horizontal tool layout that is one of features of L series, and flexibly corresponds to various complex machining with a wide variety of rotary tools
The switch between the guide bushing type and the guide bushing less type can be accomplished in a simple operation. It achieves a reduction in running costs

Machine Specifications

Item		L12VII
Maximum machining diameter		12mm Dia.
Maximum machining length	GB machine	135mm/chuck
Maximum machining length	GBL machine	30mm/chuck
Maximum drilling diameter for main spindle		8mm Dia.
Maximum tapping diameter for main spindle (tap,die)		M6
Main Spindle through-hole diameter		20mm Dia.
Spindle speed		15,000min-1
Maximum drilling diameter for gang rotary tool		5mm Dia.
Maximum tapping diameter for gang rotary tool		M4
Gang rotary tool spindle speed		10,000min-1
Maximum chuck diameter of back spindle		12mm Dia.
Maximum protrusion length of the back spindle workpiece		30mm
Maximum drilling diameter in back machining process		6mm Dia.
Maximum tapping diameter in back machining process		M5
Back spindle speed		10,000min-1
Number of tools to be mounted		Max.27
Tool size	Turning tool	10mm Sq.
Tool size	Sleeve	19.05mm Dia.
Rapid feed rate	All axis	35m/min
Motors	For spindle drive	2.2/3.7kW
	For tool spindle drive	0.75kW
	For back spindle drive	0.4/0.75kW
	For cutting coolant oil	0.25kW
Rated power consumption		6.1kVA
Load operation average power		3.2kVA
Center height		1,000mm
Weight		1,700kg

Option
Maximum drilling diameter for back tool post rotary tool	5mm Dia.
Maximum tapping diameter for back tool post rotary tool	M4
Rotary tool spindle speed of back tool post	9,000min-1
For rotary tool drive of Back tool post	0.5kW
