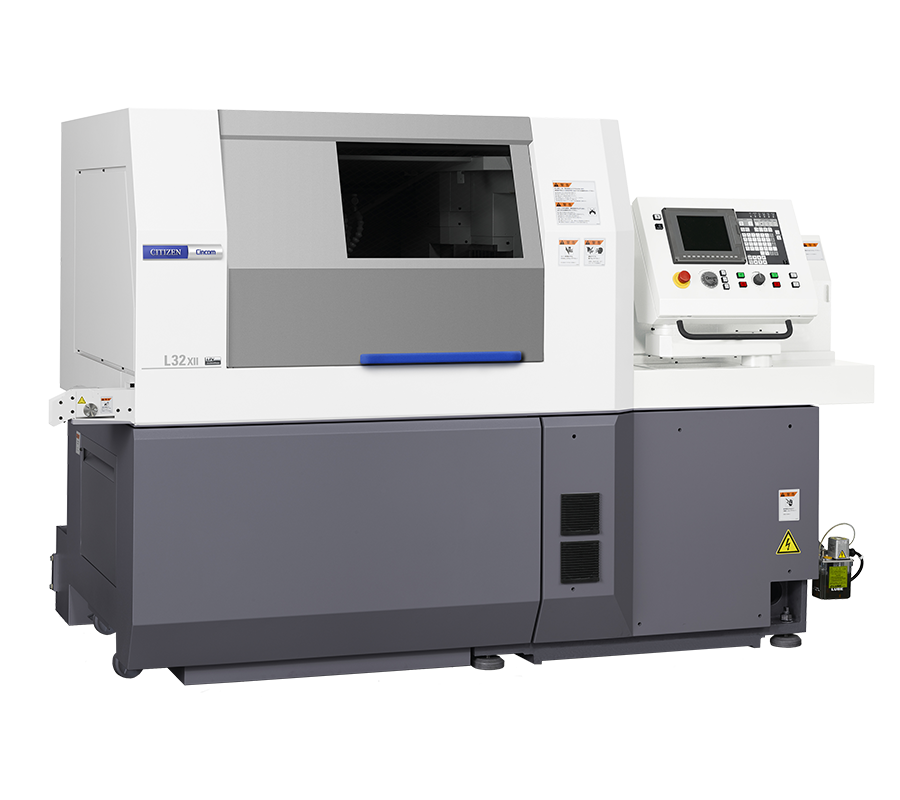

Cincom L32

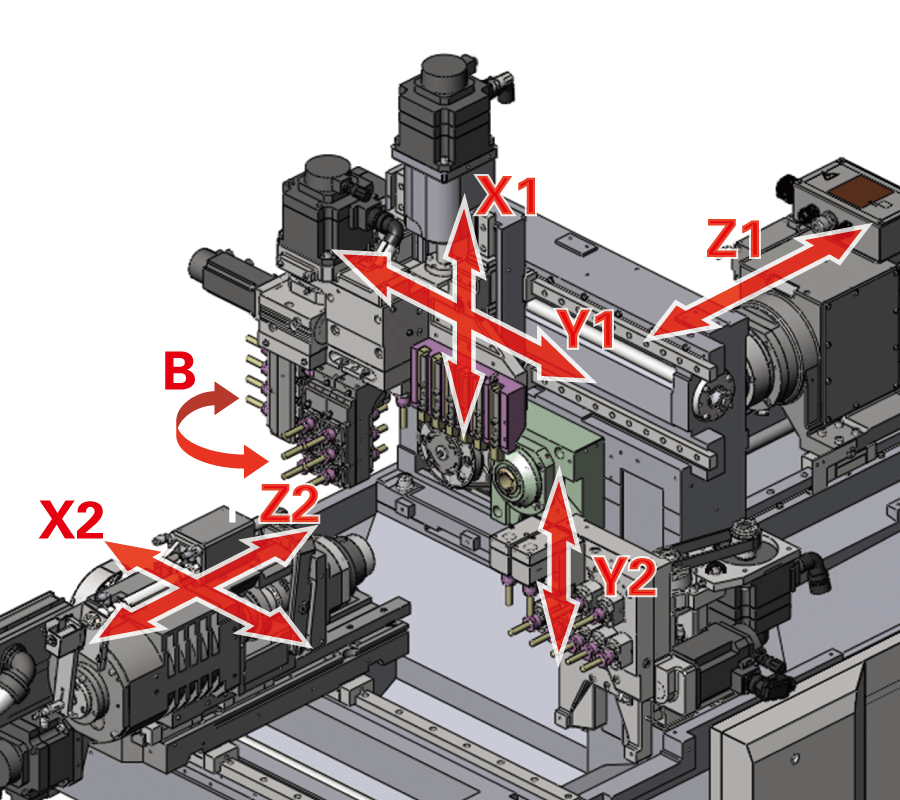

An optional B-axis tooling with ATC (automatic tool changer) can be equipped to the gang rotary turret. This device is not only perfect for machining medical components and other complex parts, it also supports a wide array of machining with a diverse assortment of tool variations. (L32XII ATC)

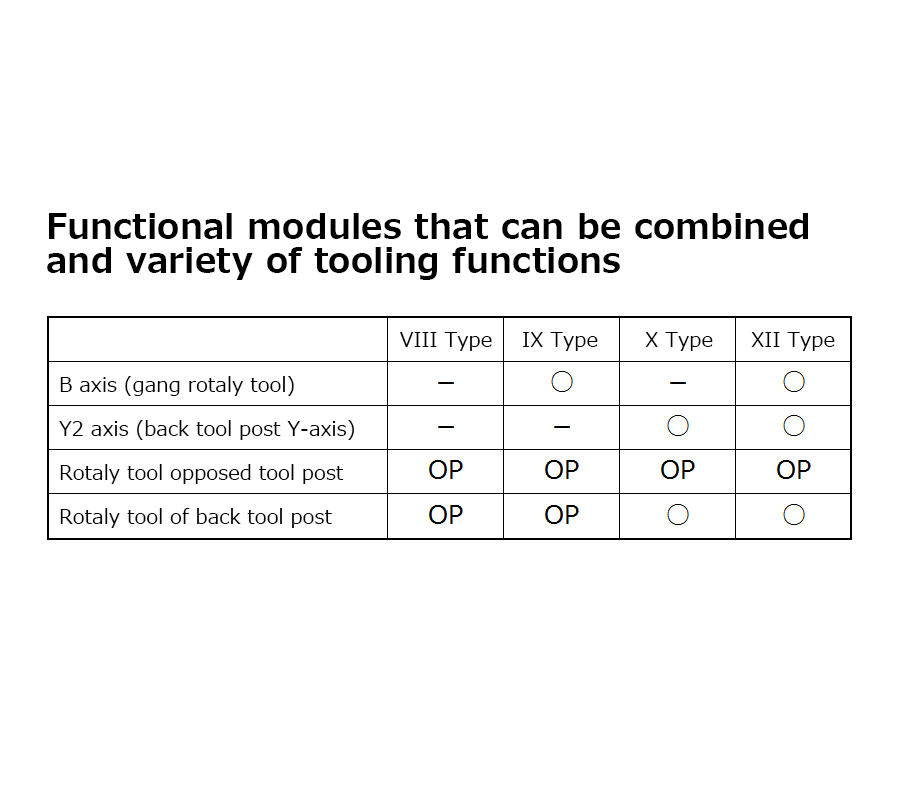

Flexibly corresponds to various machining, from simple machining to complex machining

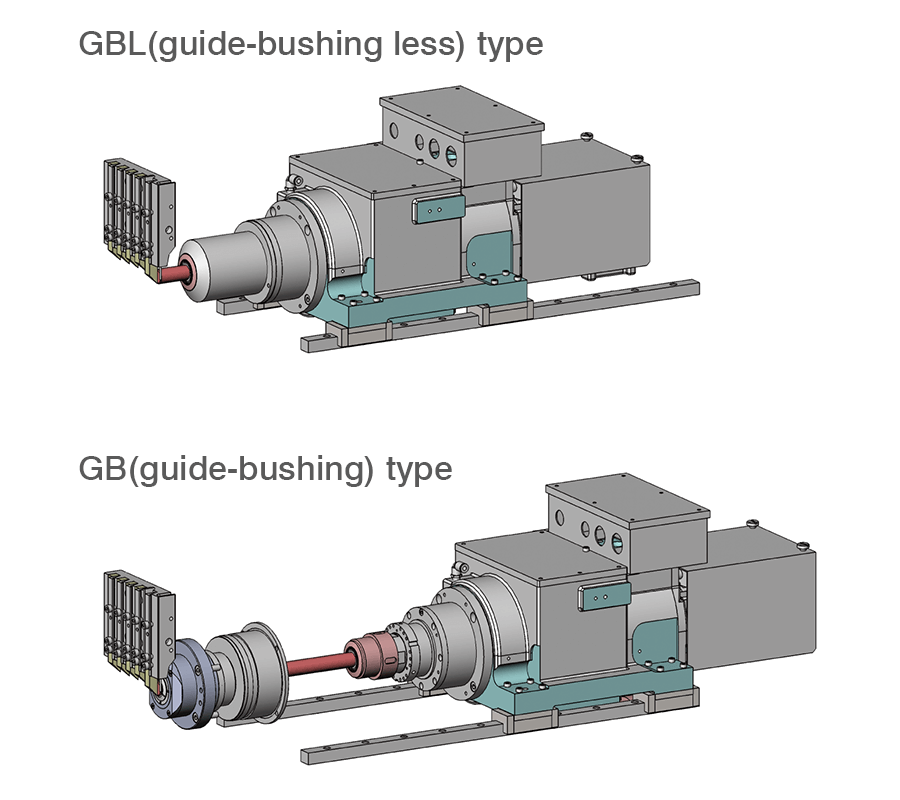

The switch between the guide bushing type and the guide bushing less type can be accomplished in a simple operation. It achieves a reduction in running costs

Catalog Download

Machine Specifications

Item		L32 VIII	L32 IX	L32 X	L32 XII
Maximum machining diameter		32mm Dia.
Maximum machining length	GB machine	320mm/chuck
Maximum machining length	GBL machine	Workpiece diameterx2.5/chuck
Maximum drilling diameter for main spindle		12mm Dia.
Maximum tapping diameter for main spindle(tap, die)		M12(Cut tap)
Spindle through-hole diameter		39mm Dia.
Spindle speed		Max.8,000min-1
Maximum chuck diameter of back spindle		32mm Dia.
Maximum drilling diameter in back machining process		10mm Dia.
Maximum tapping diameter in back machining process		M10(Cut tap)
Back spindle speed		Max.8,000min-1
Maximum drilling diameter for gang rotary tool		8mm Dia.
Maximum tapping diameter for gang rotary tool		M6(Cut tap)
Gang rotary tool spindle speed		Max.6,000min-1
Maximum drilling diameter for rotary tool of the opposed tool post		8mm Dia.
Note) Optional feature to all types
Maximum tapping diameter for rotary tool of the opposed tool post		M6(Cut tap)
Note) Optional feature to all types
Rotary tool spindle speed of the opposed tool post		Max.6,000min-1
Note) Optional feature to all types
Maximum drilling diameter for back tool post rotary tool		OP		8mm Dia.
Maximum tapping diameter for back tool post rotary tool		OP		M6(Cut tap)
Rotary tool spindle speed of back tool post		OP		Max.6,000min-1
Number of tools to be mounted		Max.30	Max.36	Max.44	Max.40
Tool size	Turning tool	16mm Sq.
Rapid feed rate	X1 axis	32m/min
	X2 axis	32m/min
	Y1 axis	32m/min
	Y2 axis	-		24m/min
	Z1 axis	32m/min
	Z2 axis	32m/min
Motors	For spindle drive	3.7/7.5kW
	For tool spindle drive(gang rotary tool post)	1.0kW
	For back spindle drive	2.2/3.7kW
	For spindle drive of opposed tool post	1.0kW Note) Optional feature to all types
	For spindle drive of back tool post	OP		1.0kW
	For cutting coolant oil	0.25kW
Rated power consumption		13.2kVA
Load operation average power		6.9kVA
Center height		1,050mm
Weight		2,900kg

ATC device	L32XII ATC
Max. ATC tooling rotations	12,000min-1
Motor output	2.2kW
Tool holder type	JBS-15T
No. of B-axis tools	13
Number of tools mountable on main unit	Max.34
Tool changing time (chip to chip)	4.0 sec
Maximum outer diameter of tools	30mm Dia.
Maximum grip diameter	10mm Dia. (ER16)
