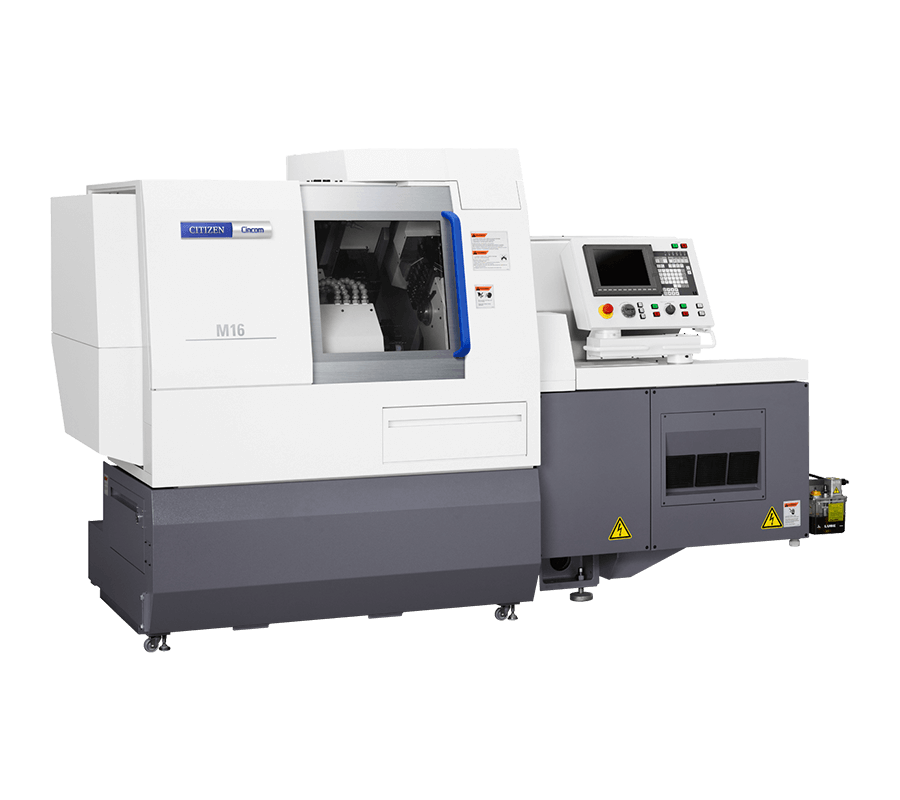

Cincom M16

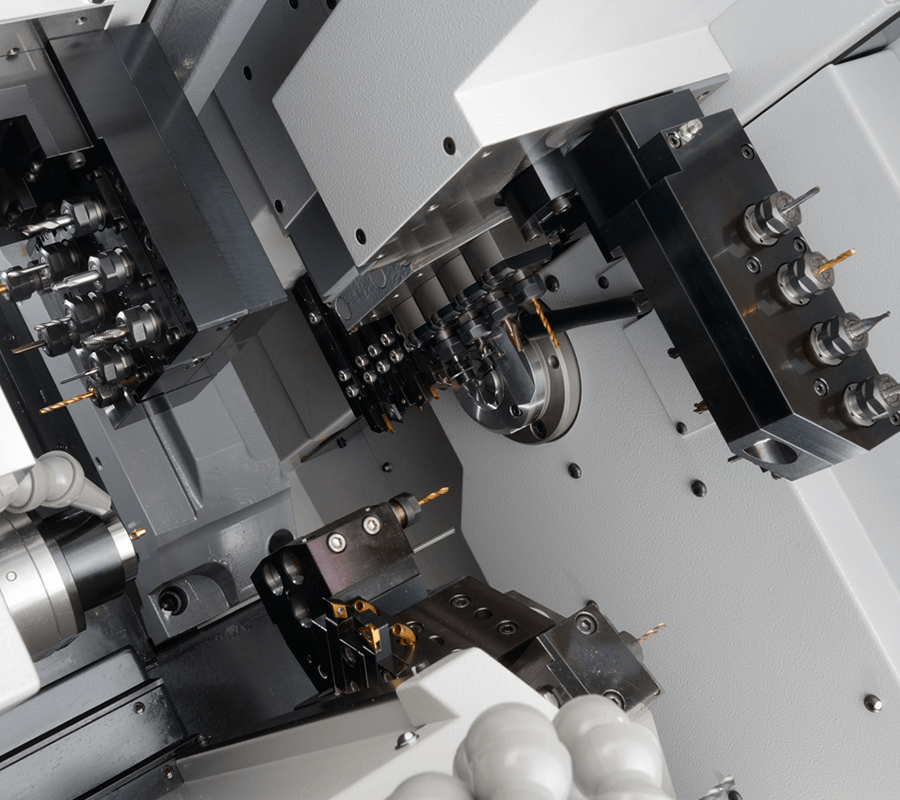

Realizing superior simultaneous machining performance through the machine structure with 2-main spindle and 3-tool posts

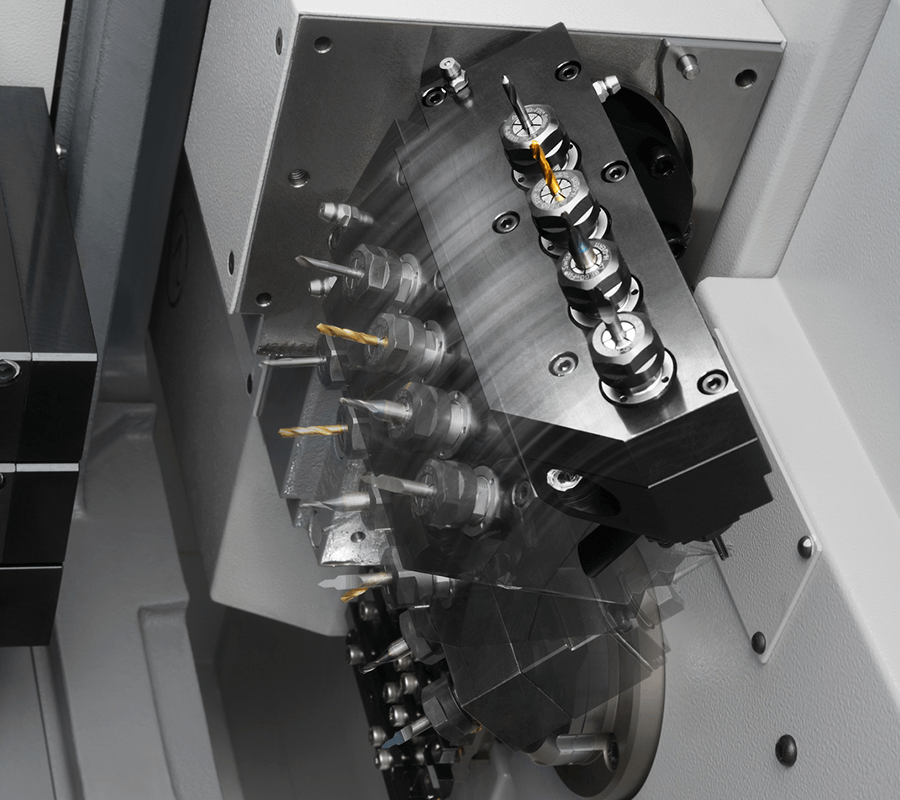

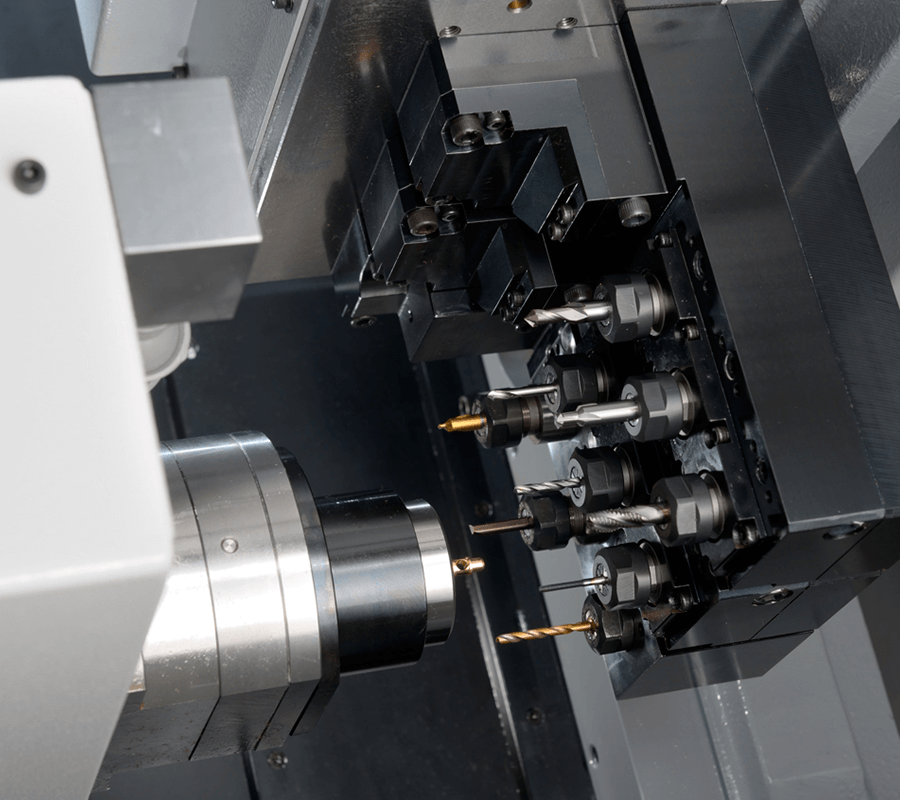

A plenty of tooling and machining functions that flexibly match with every machining need
Next-generation-type function expansion through integration of personal computer networking technology and full servo system

Machine Specifications

Item		M16VIII
Maximum machining diameter		16mm Dia.
Maximum machining length		200mm/chuck
Maximum drilling diameter for main spindle		10mm Dia.
Maximum front tapping diameter(tap, die)		M8
Main Spindle through-hole diameter		20mm Dia.
Spindle speed		12,000min-1
Maximum chuck diameter of back spindle		16mm Dia.
Maximum protrusion length of the back spindle workpiece		125mm
Maximum drilling diameter in back machining process		8mm Dia.
Maximum tapping diameter in back machining process		M6
Back spindle speed		12,000min-1
Gang tool rotary tool maximum drilling diameter		5mm Dia.
Gang tool rotary tool maximum tapping diameter		M5
Spindle speed of the gang rotary tool		8,000min-1
Maximum drilling diameter for turret rotary tool		5mm Dia.
Maximum tapping diameter for turret rotary tool		M5
Spindle speed of the gang rotary tool		8,000min-1
Maximum drilling diameter for back rotary tool		5mm Dia.
Maximum tapping diameter for back rotary tool		M5
Spindle speed of the back rotary tool		8,000min-1
Number of tools to be mounted		36+α
Tool size	Turning tool	10mm Sq.
Tool size	Sleeve	19.05mm Dia.
Rapid feed rate	X1 axis	32m/min
	X2 axis	16m/min
	X3 axis	32m/min
	Y1 axis	32m/min
	Y2 axis	8m/min
	Y3 axis	32m/min
	Z1 axis	32m/min
	Z2 axis	32m/min
	Z3 axis	32m/min
Motors	For spindle drive	2.2/3.7kW
	For back spindle drive	0.75/1.5kW
	For tool spindle drive(gang tool post)	0.69kW
	For tool spindle drive(turret)	0.69kW
	for back Tool spindle drive	0.75kW
	For cutting coolant oil	0.4kW
Rated power consumption		7.9kVA
Load operation average power		5.4kVA
Center height		1,150mm
Weight		2,950kg
