Cincom M32

Ultimate Gang + Turret: The M32 is reborn

Structural analysis was performed to achieve a highly rigid design that provides an optimal balance between strength and weight to greatly improve the rigidity required during machining.

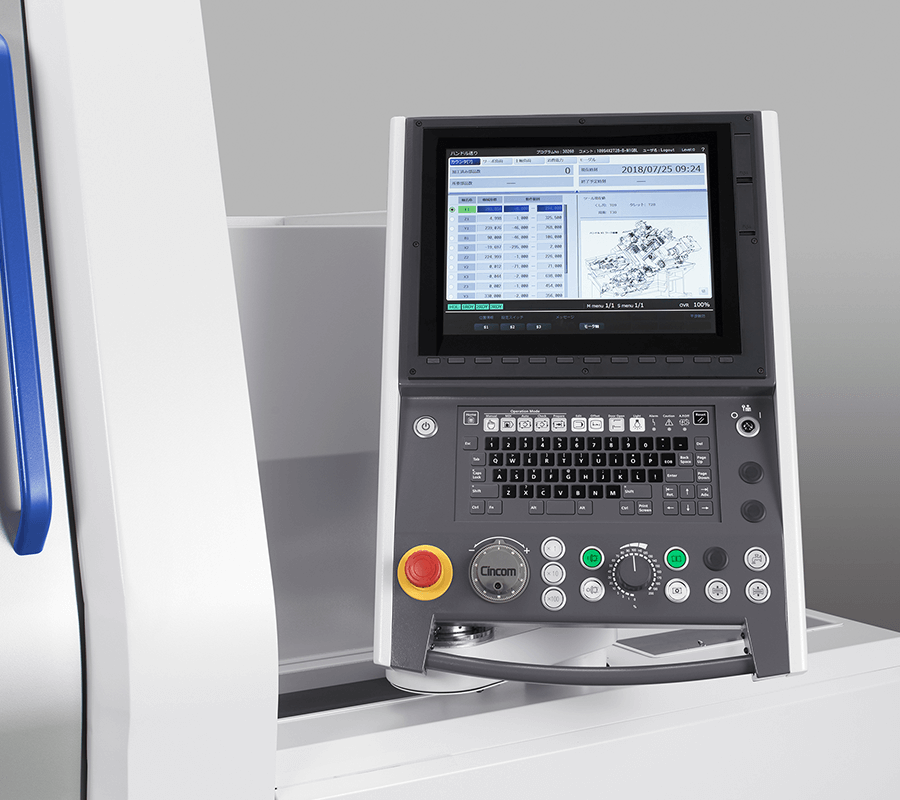

Adoption of newly designed cover to provide workability, as well as a new HMI operating panel for the new NC unit and touch panel provides improved operability and productivity.

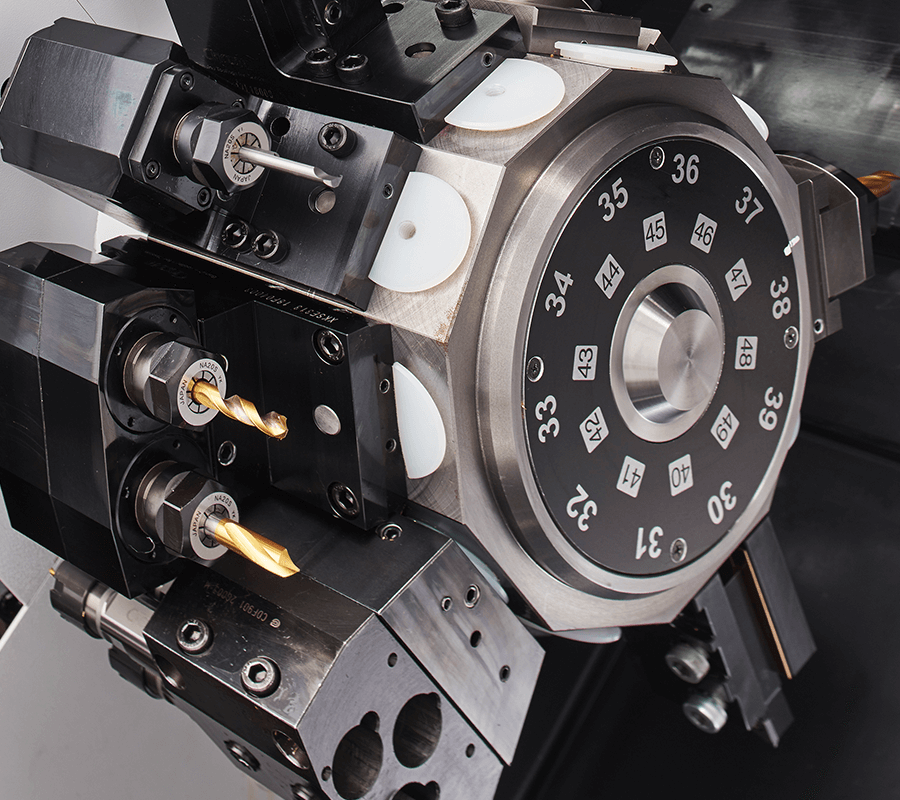

The turret tooling has been completely redesigned with a conversion to single-drive for rotary tools and strengthening of the rotary tools motor.
The gang tool post has been equipped with a programmable B axis (45° backside and 105° front side) type VIII. The back tool post has been equipped with three-tool adjustable angle spindles type VII and VIII to provide even more complex machining.
Compatible with LFV Modes 1, 2 and 3 (optional), this model alleviates chip-related issues not only when processing linear surfaces, but also in a wide range of other situations such as tapered, circular, drilling, and internal threading processing.

Catalog Download

Machine Specifications

Item		M32V	M32VII	M32VIII
Max. machining diameter (D)		32mm Dia. (38mm Dia. OP)
Max. machining length (L)		320mm/1chucking
Max. front drilling diameter		12mm Dia.
Max. tapping diameter for the front spindle		M12 (Cutting tap)
Main spindle speed		Max8,000min-1
Max. chuck diameter for the back spindle		32mm Dia. (38mm Dia. OP)
Max. drilling diameter for the back spindle		12mm Dia.
Max. tapping diameter for the back spindle		M12 (Cutting tap)
Max. length of the back spindle workpiece		145mm (Standard recovery unit)
Back spindle speed		Max.8,000min-1
Gang rotary tools	Max. drilling diameter	8mm Dia.
	Max. tapping diameter	M8 (Cutting tap)
	Main spindle speed	Max.9,000min-1
Turret rotary tools	Max. drilling diameter	12mm Dia.
	Max. tapping diameter	M12 (Cutting tap)
	Main spindle speed	Max.6,000min-1
Back rotary tools	Max. drilling diameter	8mm Dia.
	Max. tapping diameter	M6 (Cutting tap)
	Main spindle speed	Max.6,000min-1
Number of tools	Max.	25 to 27 +α	23 to 31 +α	30 to 36 +α
	Turning tools	5
	Cross drills	5 to 7		8(including 4 B-axis drills)
	Gang tool post backside drills	－		4(including 4 B-axis drills)
	Number of turret stations	10
	Back tool post drills	5	Max.9
Tool size	Turning tool	16mm Sq.
Tool size	Sleeve diameter	25.4mm Dia.
Rapid feed rate	X1,Y1,Z1,Z2,X3,Z3	32m/min
	Y3	－	32m/min
	X2	18m/min
	Y2	12m/min
	B1	－		50m/min
Motors	Front spindle drive	5.5/7.5kW
	Back spindle drive	5.5/7.5kW
	Gang rotary tool drive	2.2kW
	Turret rotary tool drive	2.2kW
	Back rotary tool drive	1.0kW
Pneumatic unit: Required pressure and required flowrate		0.5MPa at 110NL/min (When stationary)
Machine main unit dimensions		W2,860 × D1,465 × H1,900mm
Weight		4,300kg
Rated power consumption		24kVA		25kVA
Load operation average power		13.1kVA
Full-load current		79A
Main breaker capacity		100A
