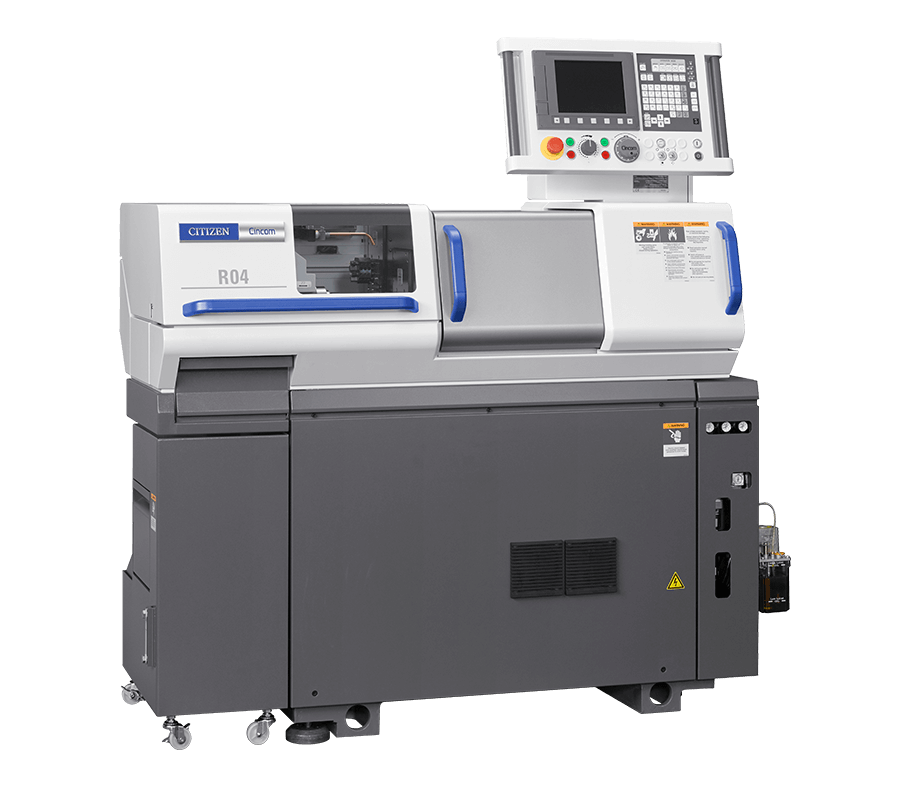

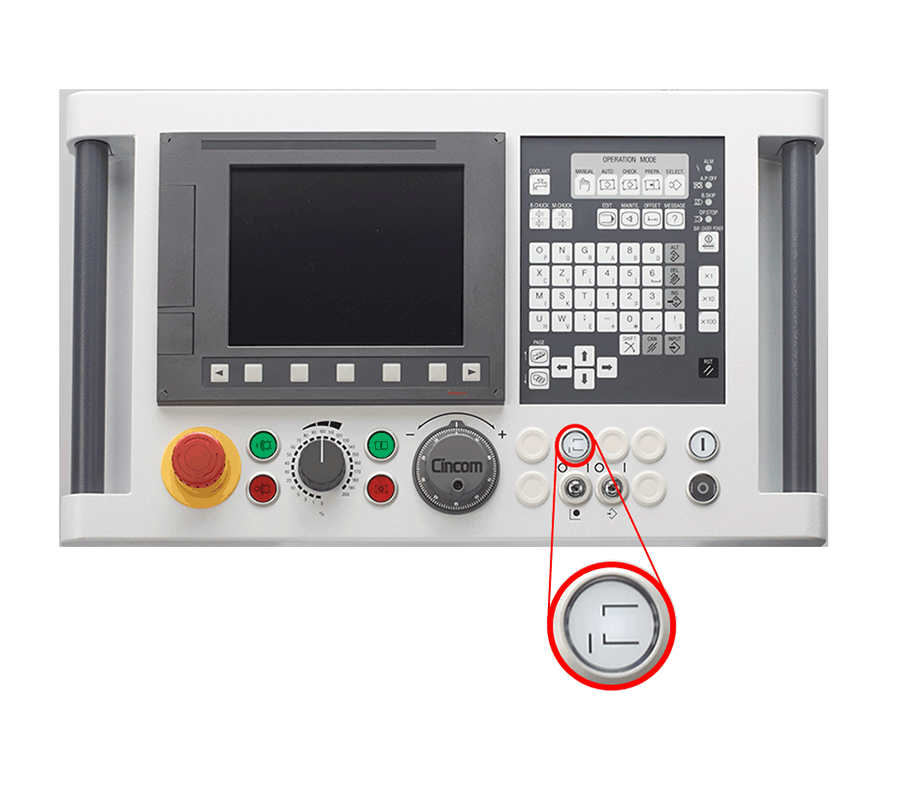

Sliding Headstock Type Automatic CNC Lathe

Cincom R01/04

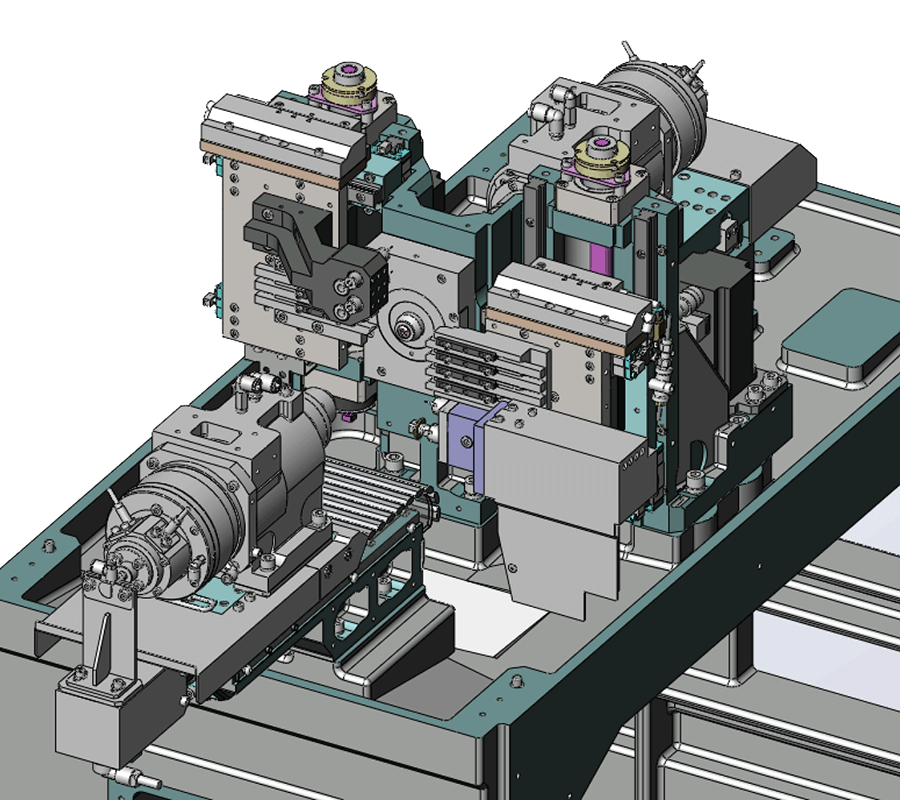

  • Control of thermal displacement of the entire machine is pursued through various methods, including the integration of the tool table and the guide bushing attachment, optimal motor output, and employment of the oil-cooling method.

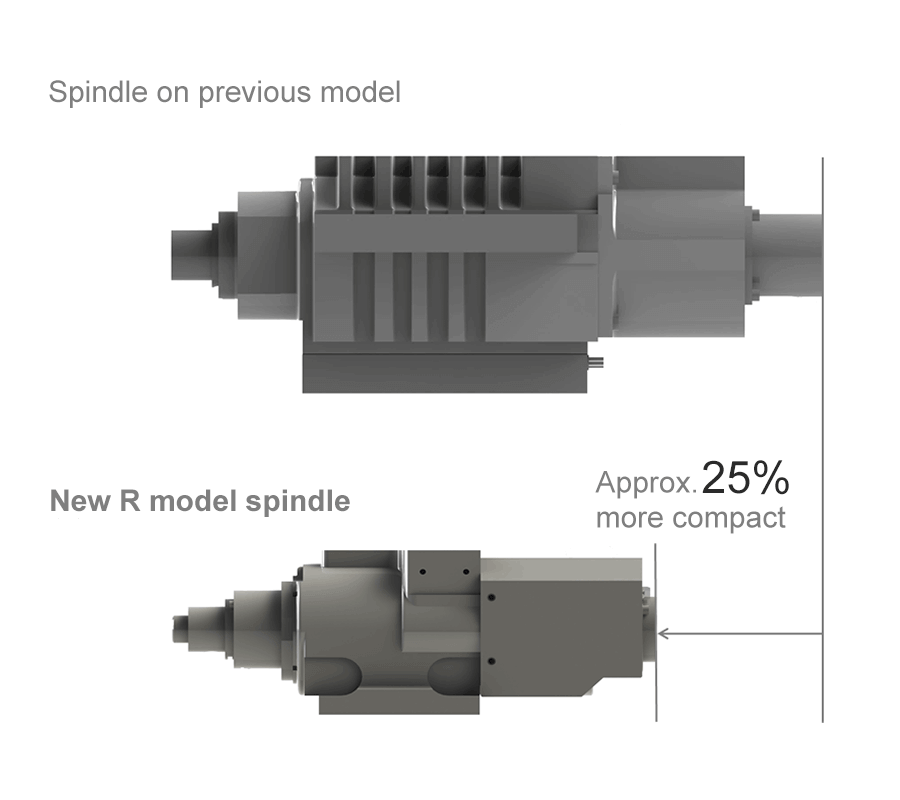

  • The spindle has been significantly reduced in weight, being approximately 25% smaller than conventional machines. Low vibration and quick acceleration enable a regular rotating speed of 20,000mn-1.
  • The depth of the body is reduced to 535mm by miniaturizing components and changing their layout, allowing the machine to be installed in a small area in a factory.

Machine Specifications

Maximum machining diameter1mm Dia.4mm Dia.
Maximum machining lengthFixed guide bushing20mm40mm
Rotary guide bushing20mm30mm
Maximum drilling diameter for main spindle3mm Dia.
Maximum front tapping diameter(tap, die)M3
Spindle through-hole diameter10mm Dia.
Spindle speedMax.20,000min-1
Maximum drilling diameter for rotary tool2mm Dia.
Maximum tapping diameter for rotary toolM2
Spindle speed of the gang rotary toolMax.8,000min-1
Maximum chuck diameter of back spindle-1mm Dia.-4mm Dia.
Maximum protrusion length of the back spindle workpiece-10mm-10mm
Maximum drilling diameter in back machining process-3mm Dia.-3mm Dia.
Maximum tapping diameter in back machining process-M3-M3
Back spindle speed-Max.20,000min-1-Max.20,000min-1
Number of tools to be mounted13171317
Tool sizeTurning tool8mm Sq.
Sleeve15.875mm Dia.
Rapid feed rateX1 axis30m/min
MotorsFor spindle drive0.5/0.75kW
For tool spindle drive0.1kW
For back spindle drive-0.5/0.75kW-0.5/0.75kW
For cutting coolant oil0.06kW
Rated power consumption2.3kVA3.4kVA2.3kVA3.4kVA
Load operation average power0.9kVA1.6kVA0.9kVA1.6kVA
Center height1,000mm
