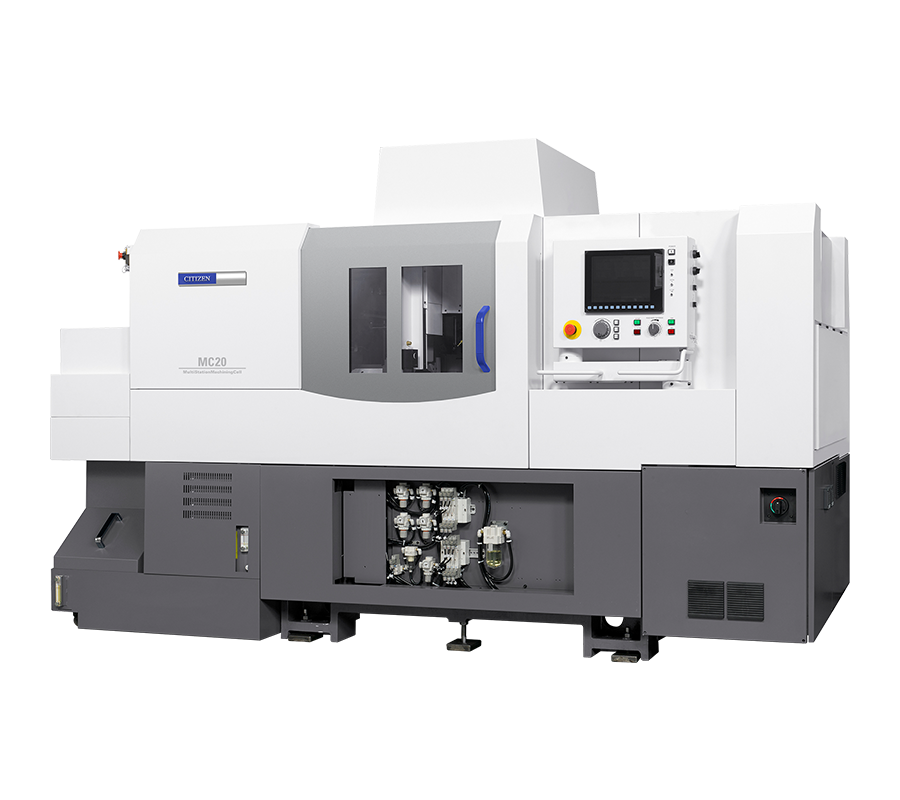

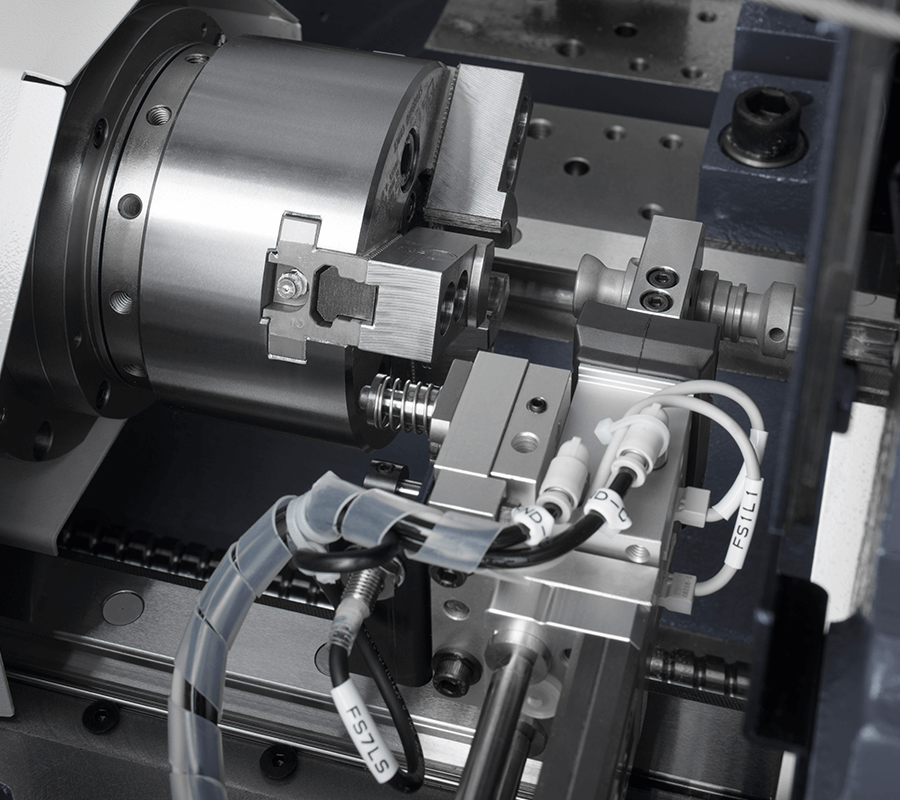

MC20III

By integrating three single-axis lathes into a single machine unit, it realizes ultra-high productivity that exceeds the limits of productivity achievable by conventional automatic lathes

By combining three machining modules in a multi-station configuration, the MC20 will support a variety of machining layouts to enable ultra-high productivity levels. Machining processes can also be optimised through the Cincom dynamic control software that supports highly flexible operations thus making ‘Ko No Ryosan’ (mass customization) a reality.

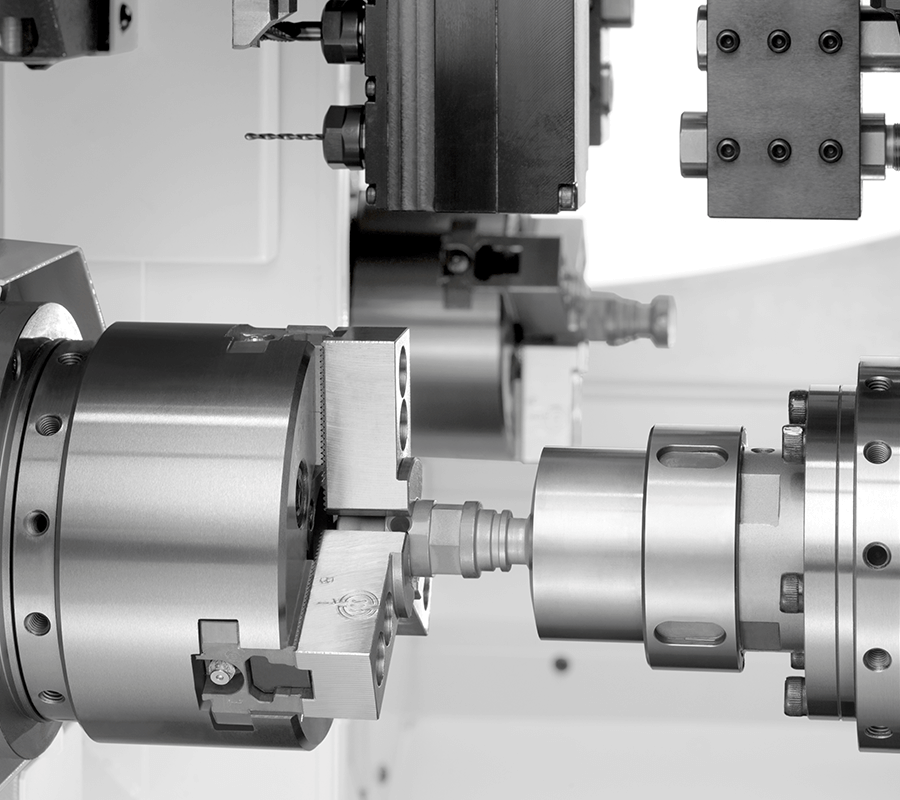

Expanded clearance between two modules helps improve working efficiency during tooling.

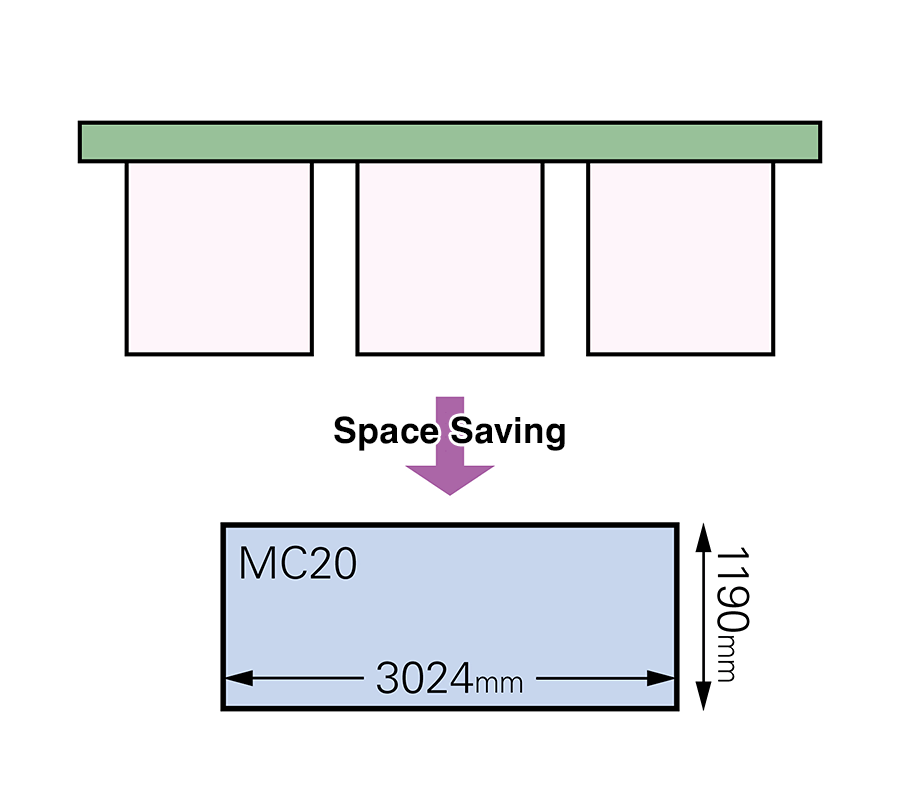

Production line relocation is accomplished by moving a single machine unit, and production line setup changes are achieved by changing the setup on a single machine
By combining various types of modules not restricted those for turning operations, it evolves further with versatile functionality

Catalog Download

Machine Specifications

Item		MC20III
Number of mounted modules		3
Chuck size		4-inch chuck
Maximum diameter for Workpiece through hole		20mm Dia.
Workpiece maximum length		70mm
Maximum drilling diameter for main spindle		7mm Dia.
Maximum tapping diameter for main spindle(Cutting tap)		M6
Spindle speed		Max8,000min-1
Gang tool rotary tool maximum drilling diameter		5mm Dia.
Gang tool rotary tool maximum tapping diameter(Cutting tap)		M5
Number of tools to be mounted in standard machining specification		5 per 1 module
Number of tools to be mounted in standard machining specification(turning tool)		2
Number of tools to be mounted in standard machining specification(Cross drilling)		3
Cutting, cross, and end surface machining specifications		6 per 1 module
Cutting, cross, and end surface machining specifications(Cutting tool)		2
Cutting, cross, and end surface machining specifications(Cross drilling)		2
Cutting, cross, and end surface machining specifications(End surface drilling tool)		2
Maximum machining specification		9 per 1 module
Maximum machining specification(Cutting tool)		4
Maximum machining specification(Cross drilling)		1
Maximum machining specification(End surface drilling tool)		4
Tool size	byte	13mm Sq.
Tool size	sleeve	19.05mm Dia., 20mm Dia.
Rapid feed rate	X, Y, and Z axis	32m/min
Rapid feed rate	A axis	40m/min
Motors	For spindle drive	2.2/3.7kW
	For tool spindle drive(gang tool post)	0.75kW
	For cutting coolant oil	0.18kW×3
Rated power consumption		16kVA
Center height		1,000mm
Machine Weight		3,600kg
