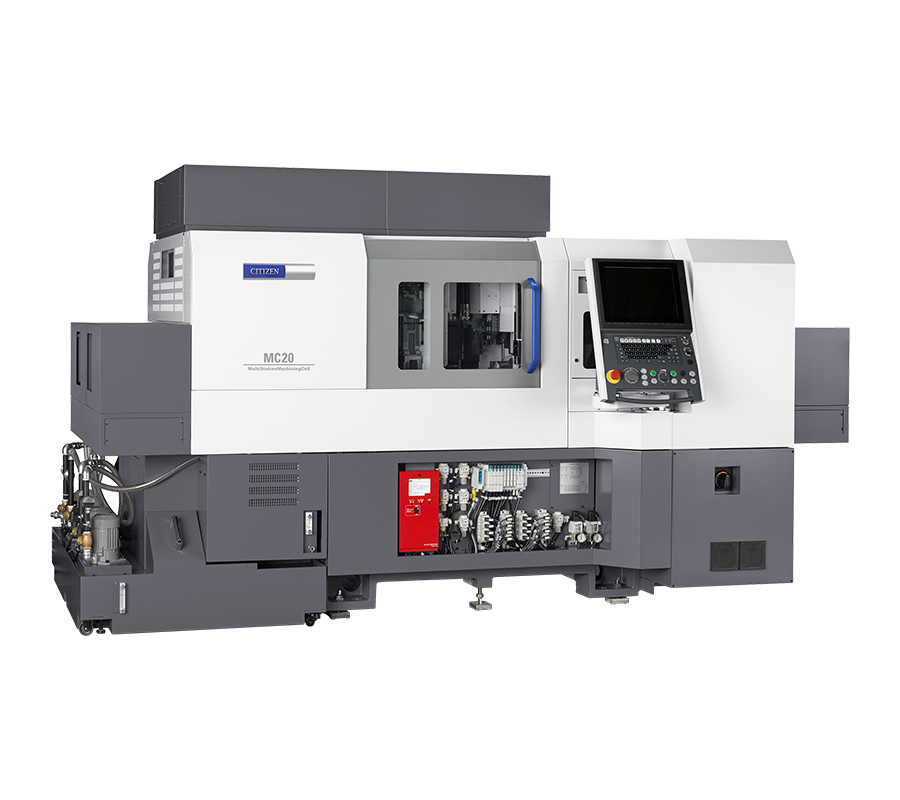

MC20IV

Even more evolved multi-station machining cell equipped with four modules

Based on the MC20 Series, this machining cell has a modular design to enable a multi-station configuration, and the four machining stations provide optimal allocation of machining processes and reduced takt time.

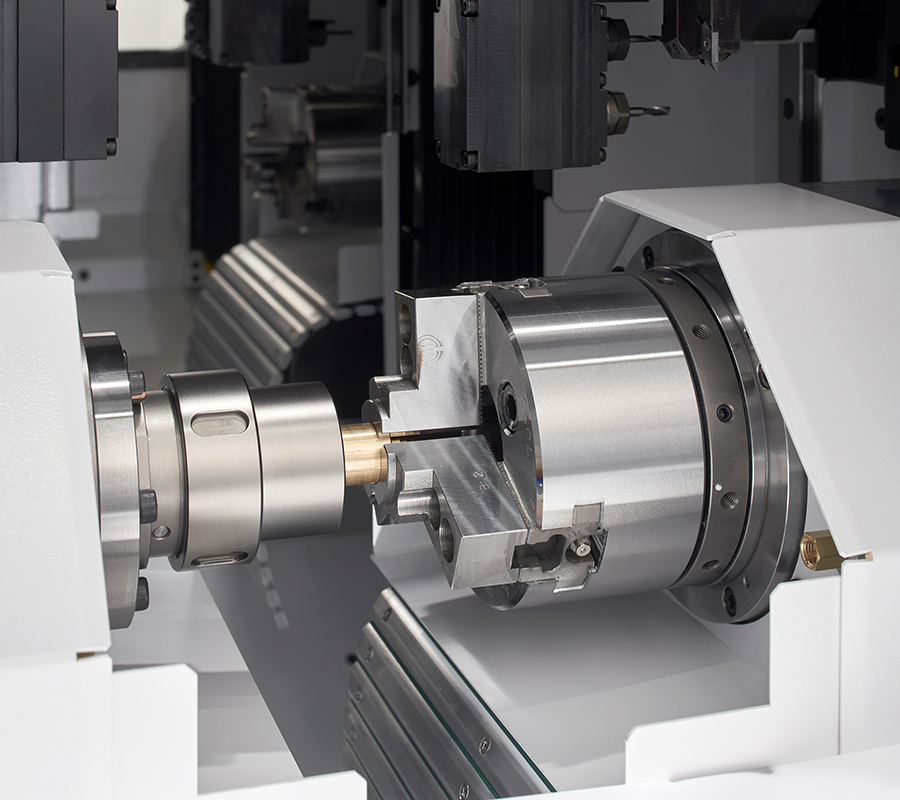

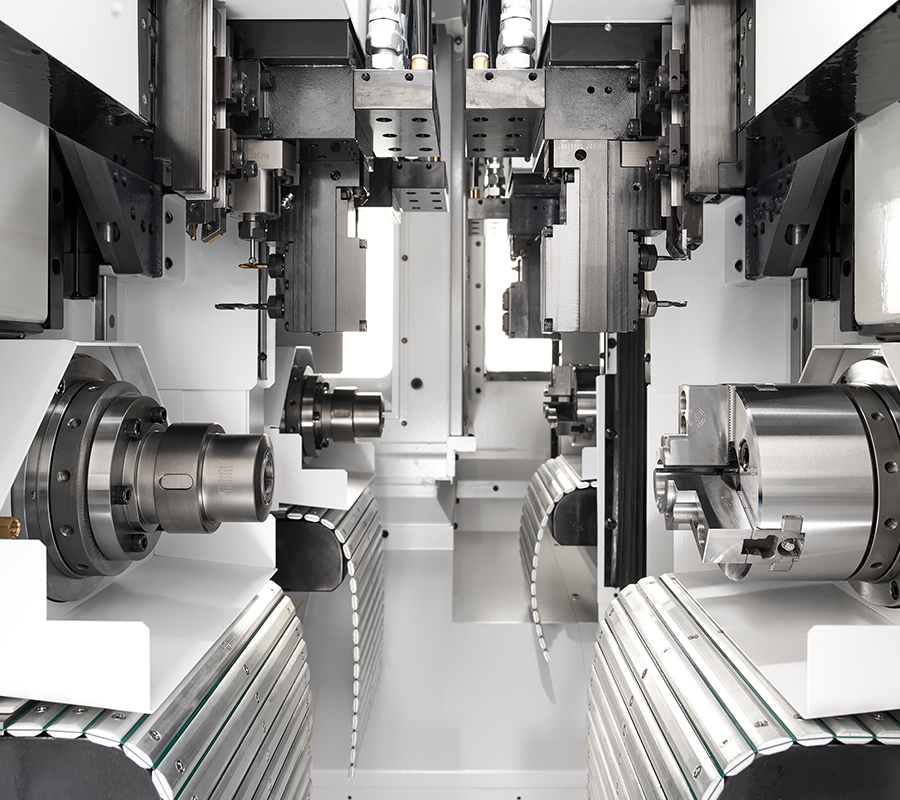

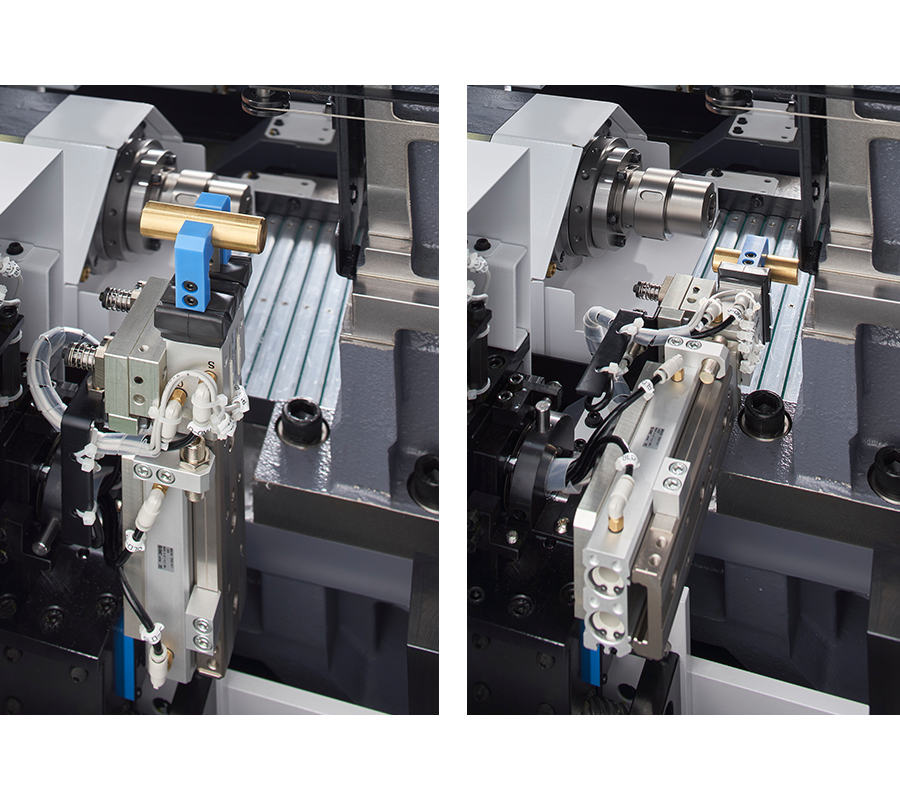

Consisting of a headstock and tool post, the four identical machining modules have a machine configuration in which they are all located on a single head to dramatically improve per-unit area productivity in comparison with conventional production lines.
The individual modules can be easily set up once you become familiar with handling the lathe consisting of one spindle and one tool post.

Catalog Download

Machine Specifications

Item		MC20IV
Number of mounted modules		4
Chuck size		4-inch chuck
Maximum diameter for Workpiece through hole		20mm Dia.
Workpiece maximum length		70mm
Maximum drilling diameter for main spindle		7mm Dia.
Maximum tapping diameter for main spindle(Cutting tap)		M6
Spindle speed		Max8,000min-1
Gang tool rotary tool maximum drilling diameter		5mm Dia.
Gang tool rotary tool maximum tapping diameter(Cutting tap)		M5
Number of tools to be mounted in standard machining specification		5 per 1 module
Number of tools to be mounted in standard machining specification(turning tool)		2
Number of tools to be mounted in standard machining specification(Cross drilling)		3
Cutting, cross, and end surface machining specifications		6 per 1 module
Cutting, cross, and end surface machining specifications(Cutting tool)		2
Cutting, cross, and end surface machining specifications(Cross drilling)		2
Cutting, cross, and end surface machining specifications(End surface drilling tool)		2
Maximum machining specification		9 per 1 module
Maximum machining specification(Cutting tool)		4
Maximum machining specification(Cross drilling)		1
Maximum machining specification(End surface drilling tool)		4
Tool size	byte	13mm Sq.
Tool size	sleeve	19.05mm Dia., 20mm Dia.
Rapid feed rate	X, Y, and Z axis	32m/min
Rapid feed rate	A axis	40m/min
Motors	For spindle drive	2.2/3.7kW
	For tool spindle drive(gang tool post)	0.75kW
	For cutting coolant oil	0.18kW×2　0.25kW×2
Rated power consumption		22kVA
Center height		1,060mm
Machine Weight		5,000kg
