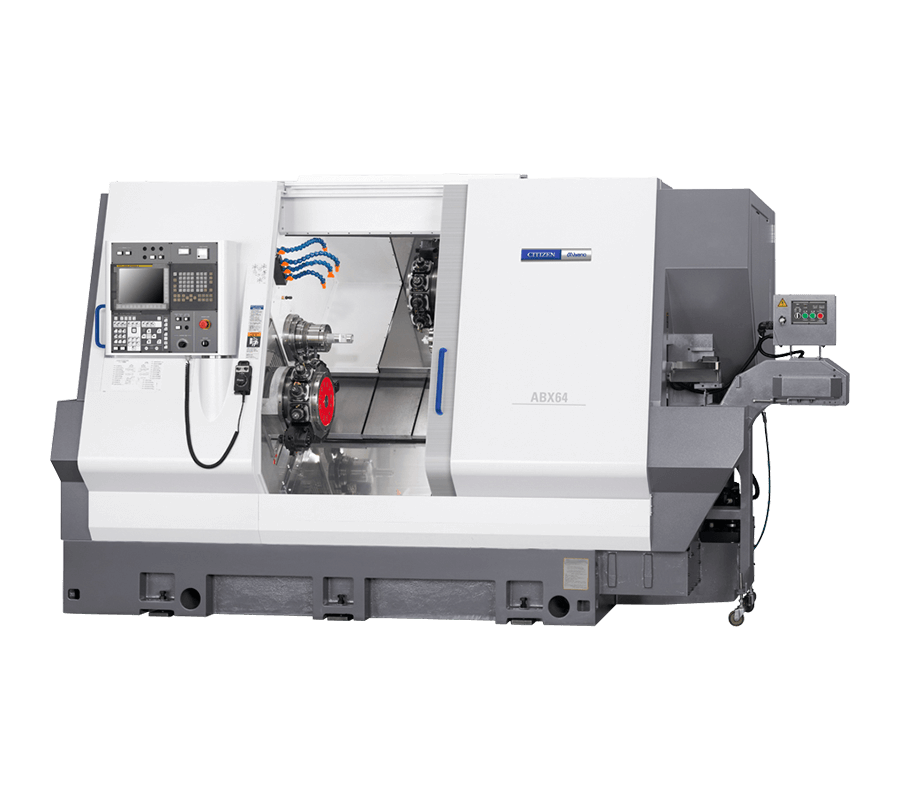

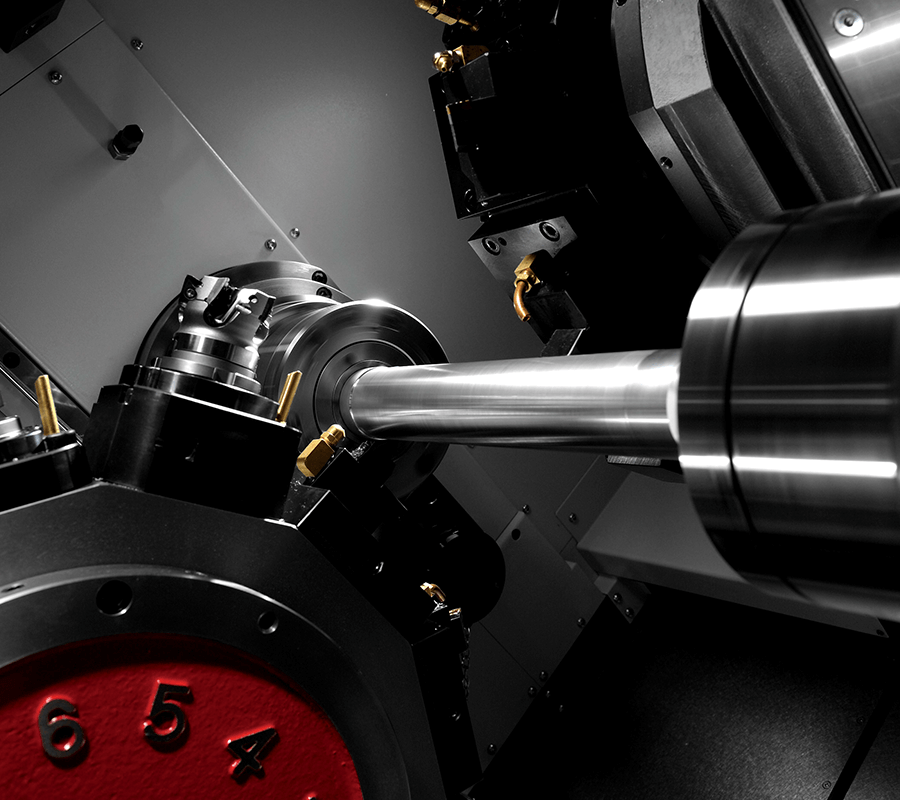

Fixed Headstock Type CNC Automatic Lathe
Machine Specifications
| Items | ABX-51SYY2 | ABX-64SYY2 | ||
|---|---|---|---|---|
| Machining Capacity and Chuck System | Maximum Machining Diameter of Bar Work | SP1/SP2 | 51mm Dia./51mm Dia. | 64mm Dia./51mm Dia. |
| Collet Chuck | SP1/SP2 | Stationary | ||
| Power Chuck | SP1/SP2 | 6"/6" hydraulic drive | ||
| Standard Turning Length | 125mm | |||
| Spindle | Spindle Nose | SP1/SP2 | A2-6/A2-6 | A2-8/A2-6 |
| Spindle motor(30min./Cont.) | SP1 | 15/11kW | ||
| SP2 | 7.5/5.5kW | |||
| Spindle Speed Range | SP1 | 50 - 5,000min-1 | 40 - 4,000min-1 | |
| SP2 | 50 - 5,000min-1 | |||

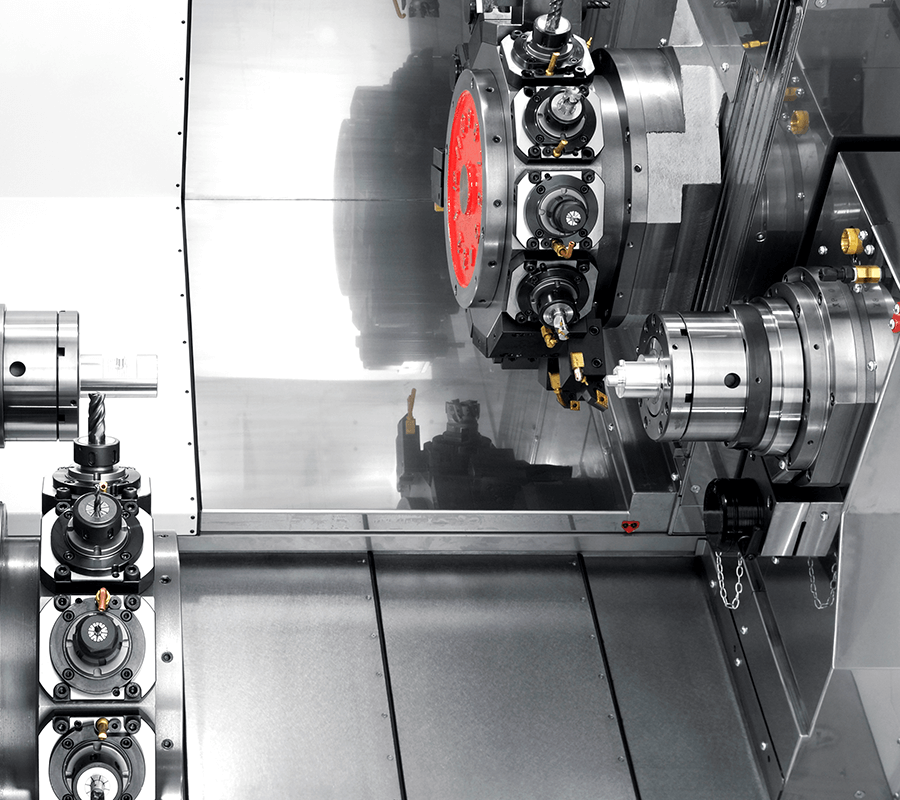

| Turrets(Upper L/R Turrets & Lower Turret) | Type of Turret | 12St.Turret | ||
| Shank Height of Square Turning Tool | 20mm Sq. | |||
| Diameter of Drill Shank | 40mm Dia. , 20mm Dia. , 25mm Dia. | |||
| Slide Stroke | X1, X2 axis | 190mm | ||
| Z1/Z2 axis | 550mm/721mm | |||
| Y1, Y2 axis | ±40mm | |||
| Zs axis | 756mm | |||
| Rapid Traverse Rate | X1, X2 axis | 16m/min | ||
| Z1/Z2 axis | 30/20m/min | |||
| Y1, Y2 axis | 12m/min | |||
| Zs axis | 30m/min | |||

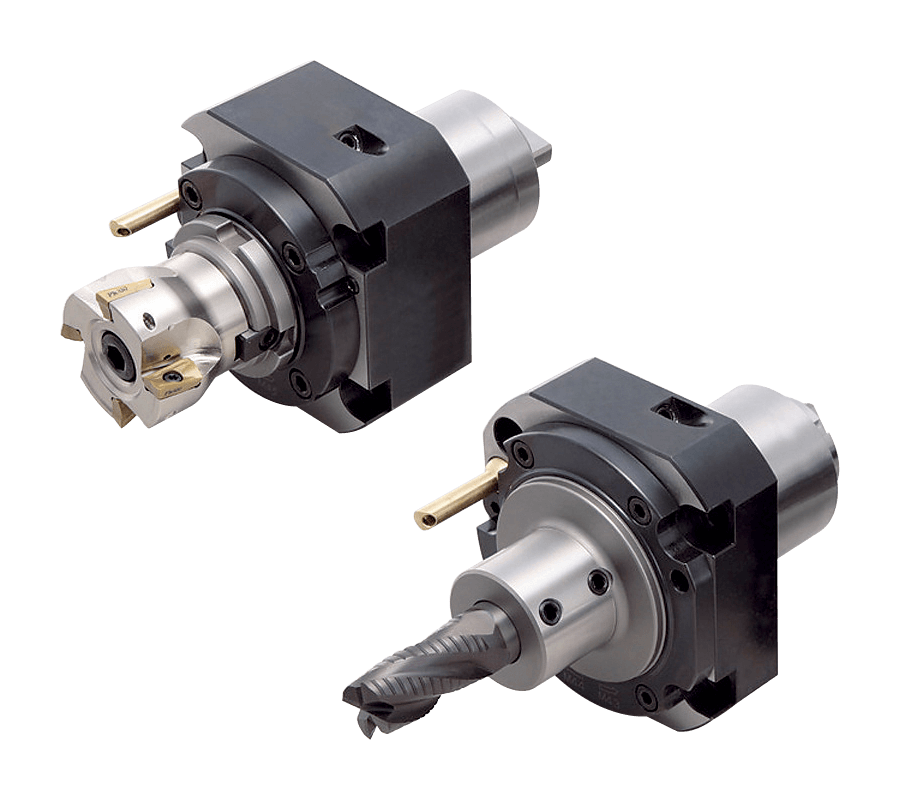

| Revolving Tools(Option) | Maximum Number of Revolving Tools | 24 | ||
| Rotation speed of revolving tools | 60 - 6,000min-1 | |||
| Rivolving Tool Motor | AC Servo 4.5kW | |||
| Machine Dimensions | Machine Height | 2,222mm | ||
| Floor Space | 3,290×2,204mm | |||
| Machine Weight | 10,750kg | 10,900kg | ||
