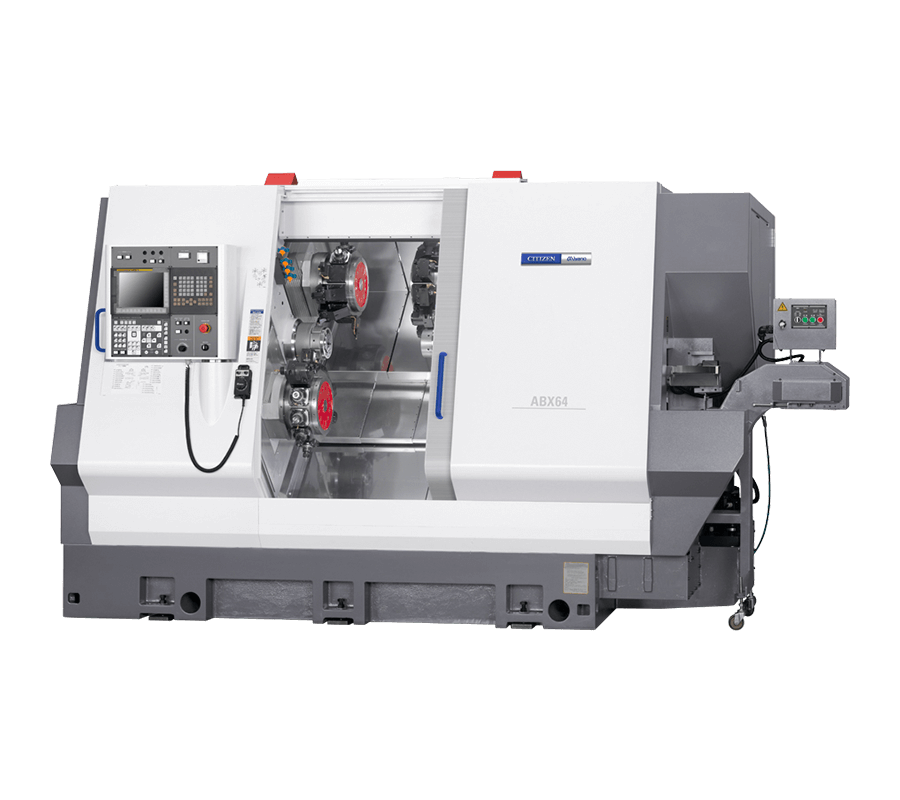

Fixed Headstock Type CNC Automatic Lathe

Miyano ABX51/64THY

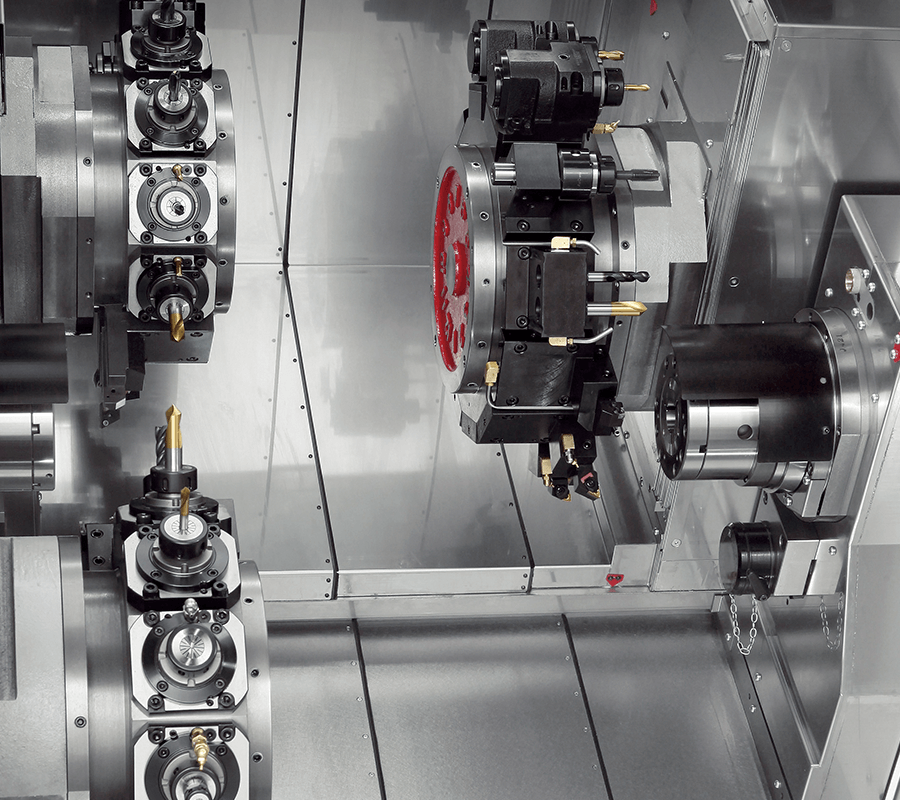

  • Upper/ lower turrets equipped with Y-axis function and left/right spindles for simultaneous left and right processing, enabling faster completion of products requiring front/back processing

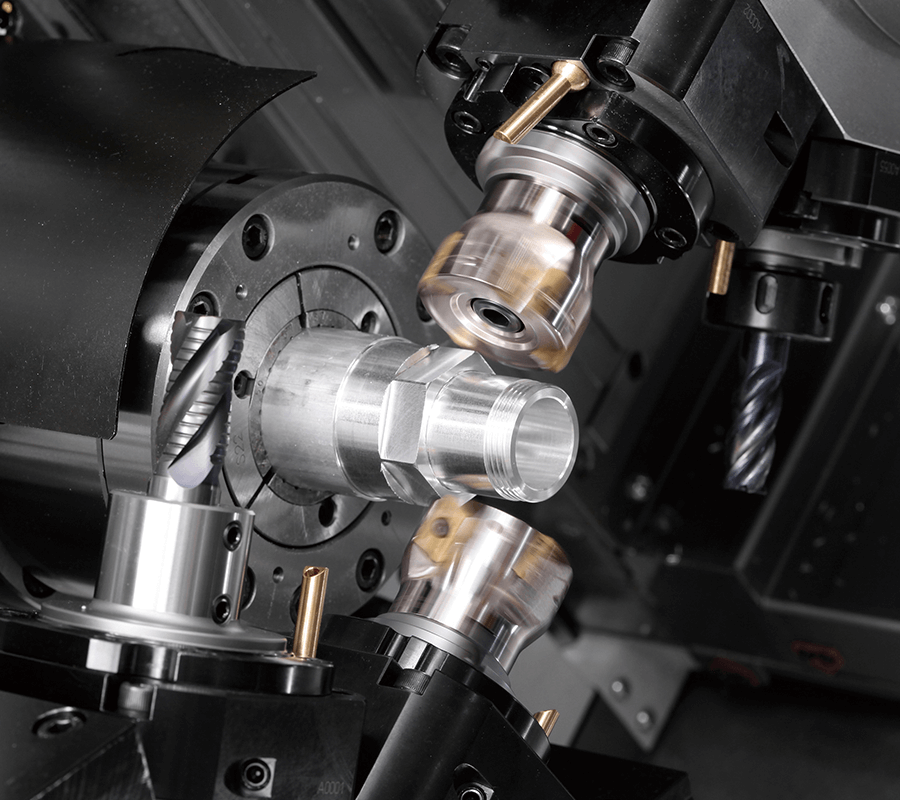

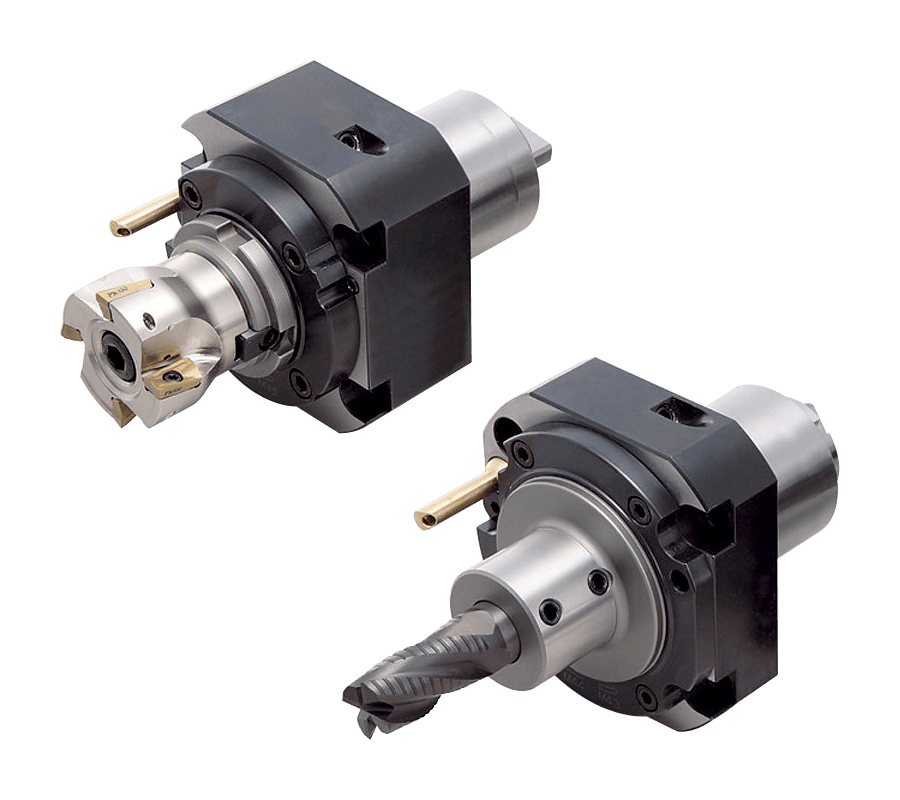

  • Up to 36 revolving tools(40 Nm) realize high rigidity and stable milling
Catalog Download

Machine Specifications

ItemsABX-51THY2ABX-64THY2
Maximum Machining Diameter of Bar WorkSP1/SP251mm Dia./51mm Dia.64mm Dia./51mm Dia.
Power ChuckSP1/SP26"/6" hydraulic drive
Maximum Machining Length125mm
Spindle motor(30min./Cont.)SP115/11kW
SP27.5/5.5kW
Spindle Speed RangeSP1/SP250 - 5,000min-140 - 4,000min-1
Type of Turret12St.Turret
Shank Height of Square Turning Tool20mm Sq.
Diameter of Drill Shank40mm Dia., 25mm Dia., 20mm Dia.
Slide StrokeX1,X2,X3 axis190mm
Z1,Z3/Z2 axis270mm/550mm
Y1,Y2,Y3 axis±40mm
Maximum Number of Revolving Tools36
Machine Height2,222mm
Floor Space3,290×2,204mm
Machine Weight11,050kg11,200kg
