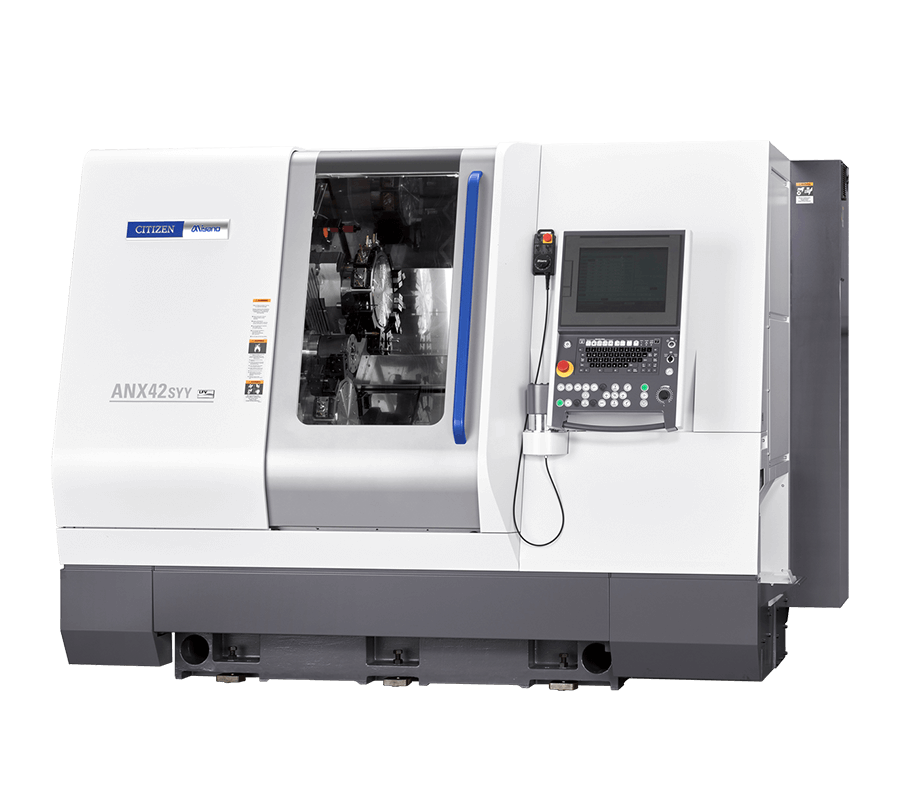

Fixed Headstock Type CNC Automatic Lathe

Miyano ANX42SYY

Innovative Turret Lathe

ANX Opens Up a New Era

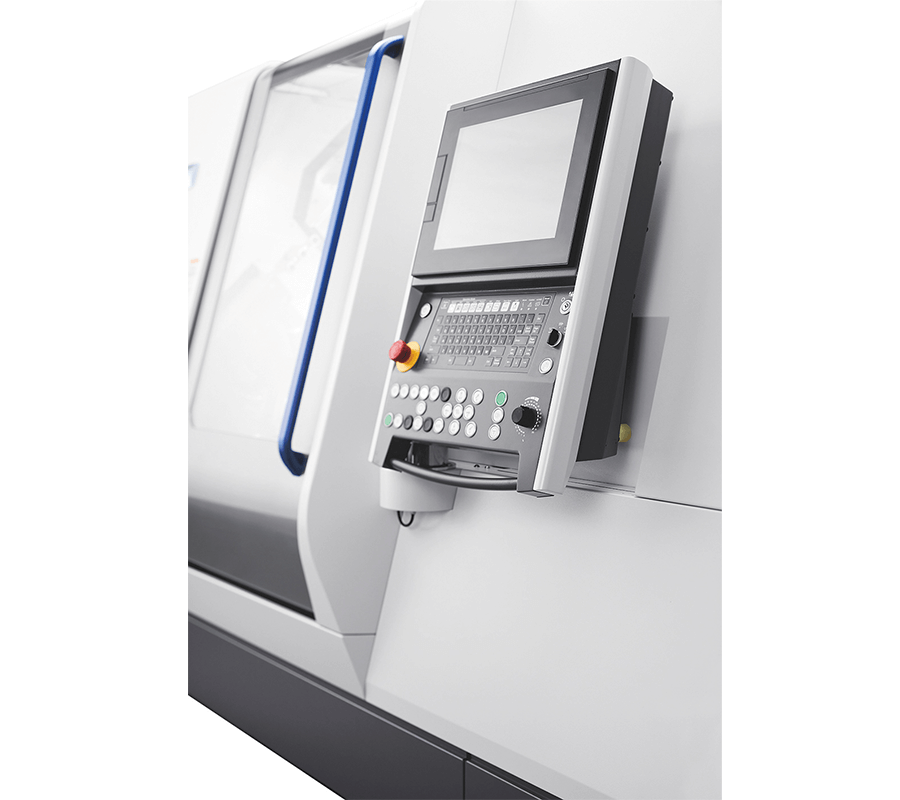

Now a turret lathe from Miyano brand is equipped with LFV technology for the first time. This solves the problem of chip entanglement that had persisted for many years. Another noteworthy feature is the operation panel featuring the new HMI (human machine interface). Machine operating convenience has been improved, including compatibility of operations that assures ease of use even for users of the Cincom brand in addition to those of the Miyano brand.

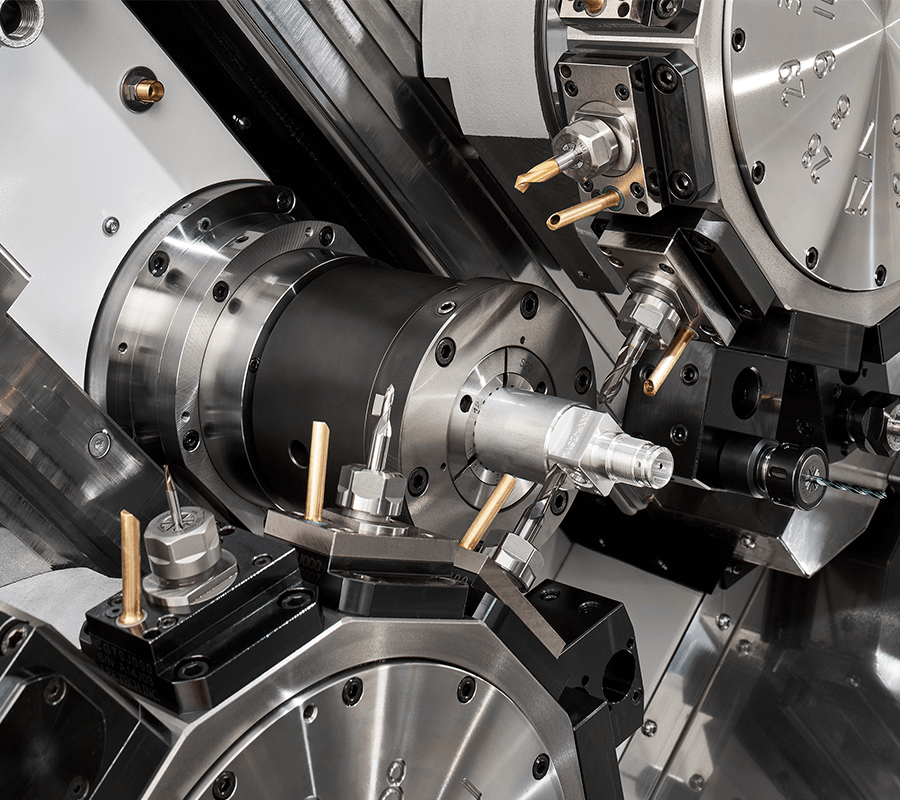

  • The machine is configured with two spindles, two turrets and a double Y axis, and the rapid traverse rate has been increased by adopting linear guides for all axes.
  • The spindles have built-in motors, which shortens acceleration/deceleration times and improves response time.

Machine Specifications

Max. machining length130mm
Standard machining diameter42mm Dia.
Number of spindles2
Spindle speed6,000min-1
Collet chuck typeDIN173E、HAINBUSH、H-S20
Power chuck type5" Powerw chuck
Number of tool posts2
Type of tool post12st.Turret
Dimensions of tools used20mm Sq.
Dimensions of tool post holes25mm Dia.
Number of installed rotary toolsMax.24
Rotating speed of rotary tools6,000min-1
Feed rateX1, X2, X3 axis24m/min
Z1, Z2 axis24m/min
Y1, Y2 axis18m/min
Spindle motor11/7.5kW(10min/cont.)
Rotary tools motor2.2kW
Rated power consumption34kVA
Load operation average power18.4kVA
Required floor surface areaW2,650×D1,645mm
Machine Weight6,250kg
