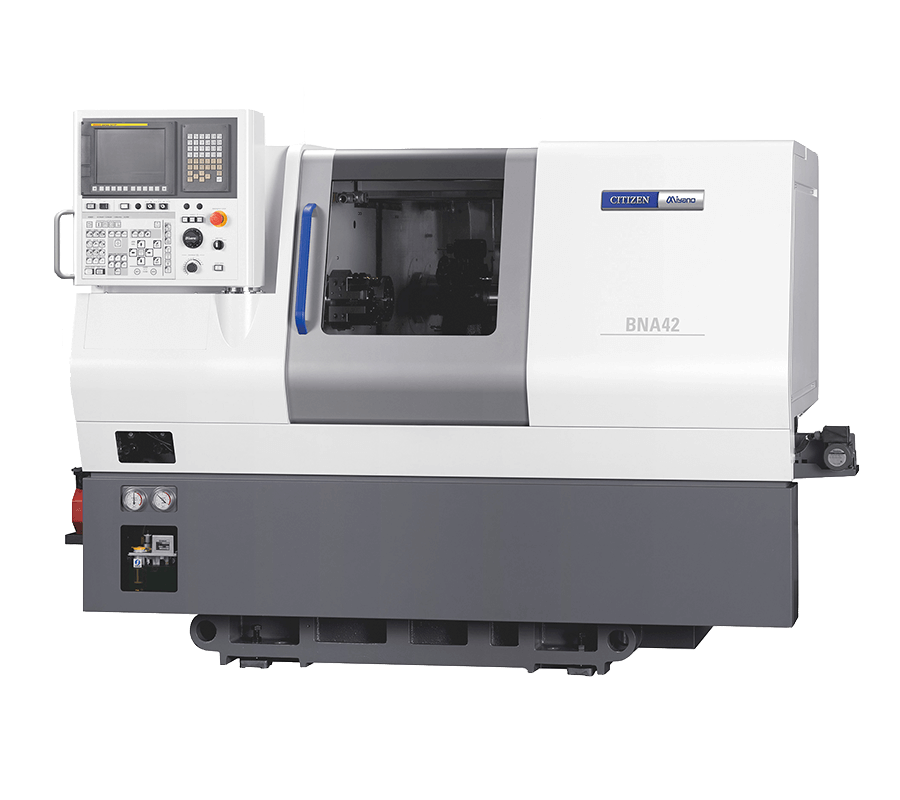

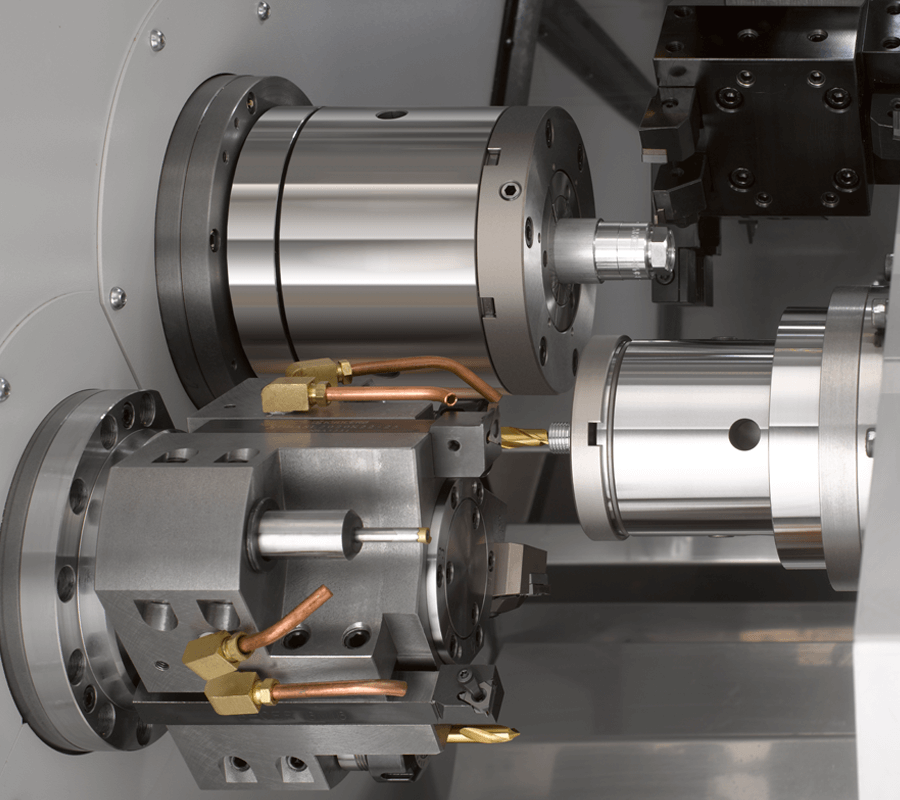

Fixed Headstock Type CNC Automatic Lathe
Machine Specifications

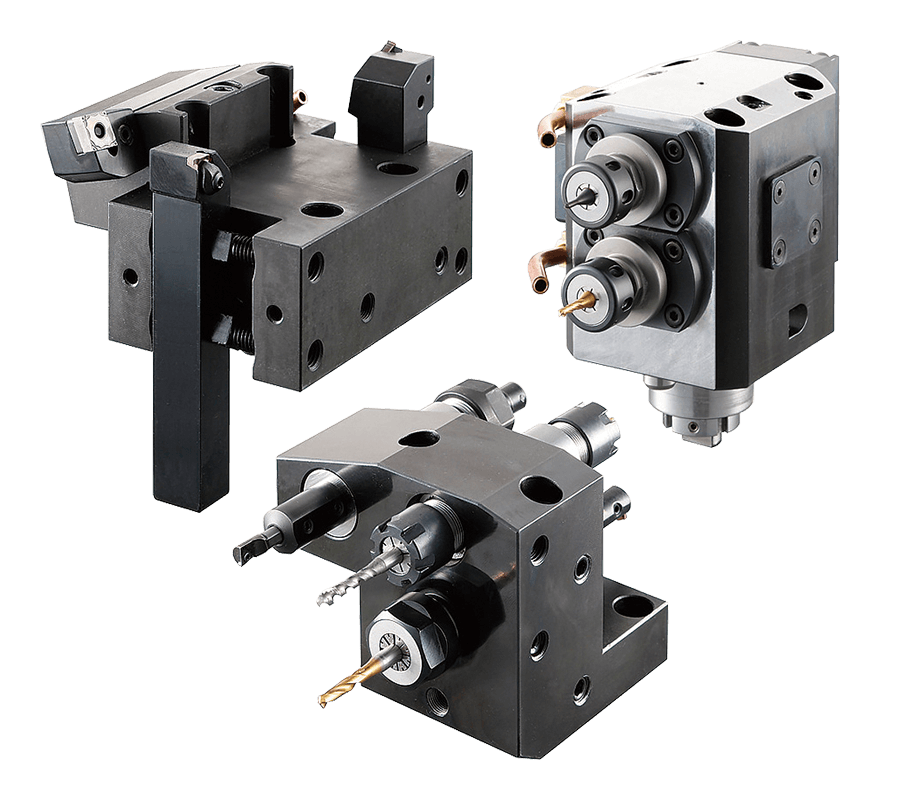

| Items | BNA-42DHY3 | ||
|---|---|---|---|
| Machining Capacity and Chuck System | Maximum Machining Diameter of Bar Work | SP1/SP2 | 42mm Dia./34mm Dia. |
| Maximum Machining Length | 100mm | ||
| Power Chuck | SP1/SP2 | 5"/4" | |
| Collet Chuck Type | SP1/SP2 | Stationary | |
| Spindle | Spindle Nose | SP1/SP2 | Special Flat Type |
| Spindle motor(15min. Rating/Cont.) | SP1 | 7.5/5.5kW | |
| SP2 | 5.5/3.7kW | ||
| Spindle Speed Range | SP1 | 60 - 6,000min-1 | |
| SP2 | 50 - 5,000min-1 | ||
| Turret | Type of Turret | SP1 | 8St.Turret |
| SP2 | 6St.Turret | ||
| Shank Height of Square Turning Tool | 20mm Sq. | ||
| Diameter of Drill Shank | 25mm Dia. | ||
| Turret Indexing & Clamp Method | AC Servo motor & curvic coupling | ||
| Slide Stroke | X1 axis | 140mm | |
| Z1 axis | 235mm | ||
| Y axis | 70mm(±35) | ||
| X2 axis | 140mm | ||
| Z2 axis | 360mm | ||
| Indexing Time | 0.2Sec./1St. | ||
| Revolving Tools | Maximum Number of Revolving Tools | SP1/SP2 | 8/--- |
| Tool Spindle Speed Range | 50 - 5,000min-1 | ||
| Revolving Tool Motor | 2.8/1.0kW | ||
| Machine Dimensions | Machine Height | 1,700mm | |
| Floor Space | 2,350×1,450mm | ||
| Machine Weight | 3,100kg | ||
