Model BNA42GTY : CITIZEN MACHINEY ASIA CO.,LTD.

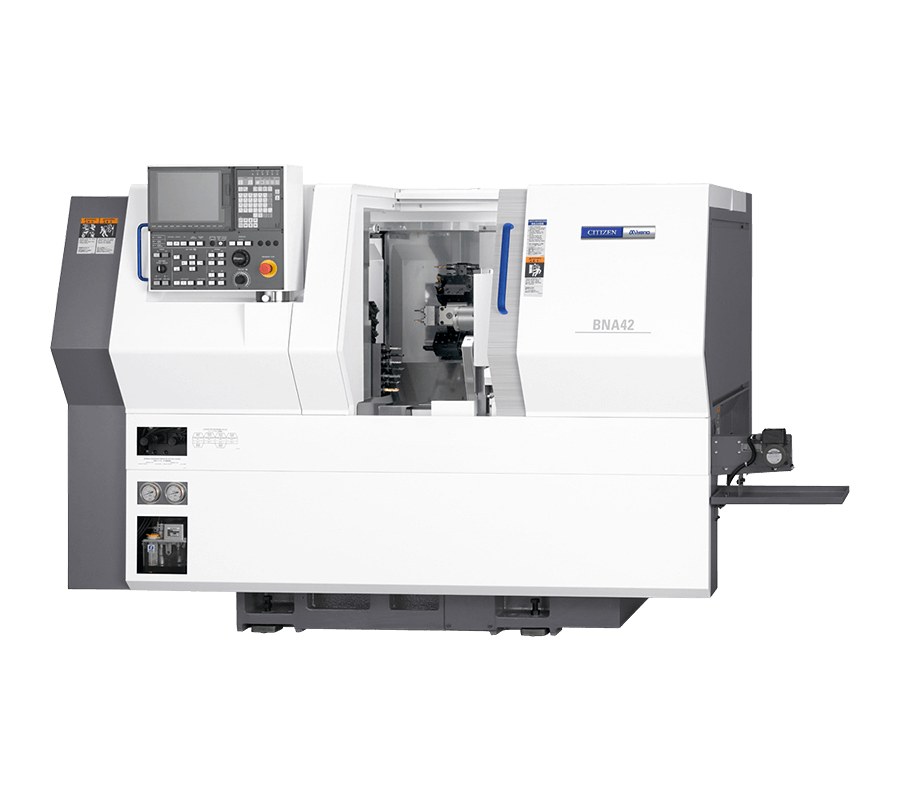

Miyano BNA42GTY

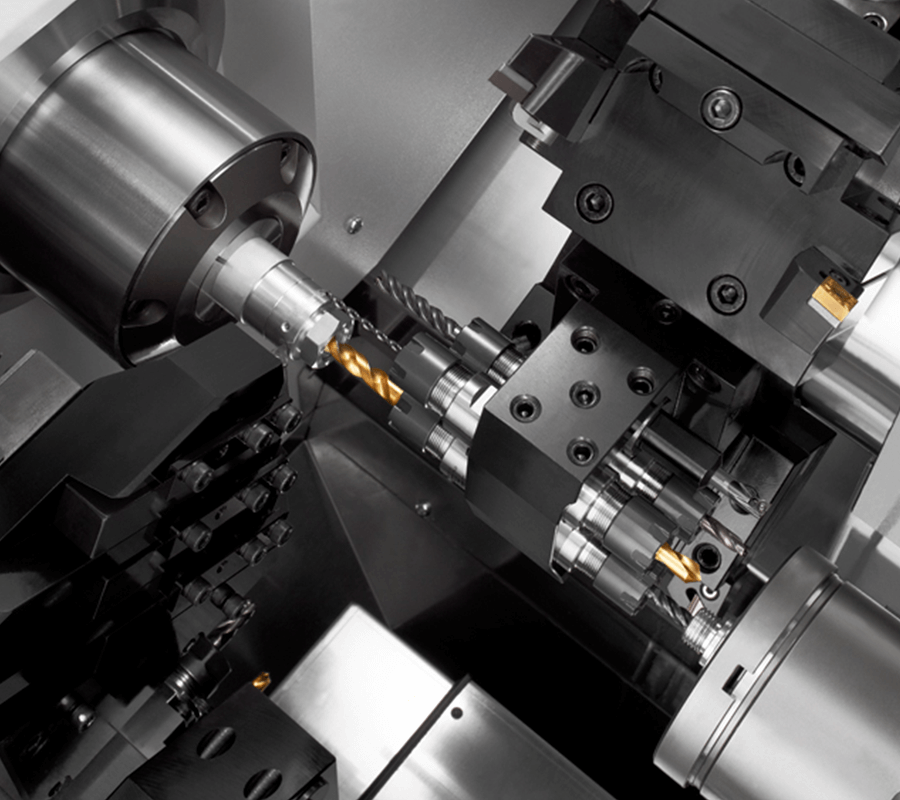

Through a new machine composition with 2 spindles, 1 turret + 1 gang tool post, it realizes higher productivity than turret machines

It is the top-of-the-range product of BNA series, of which simultaneous machining performance such as 3-axis overlapping machining in 3 systems has been improved

Items	BNA-42GTY
Maximum Machining Diameter of Bar Work	SP1	42mm Dia.
SP2	34mm Dia.
Maximum Machining Length	100mm
Spindle motor(15min./Cont.)	SP1	11/7.5kW
SP2	5.5/3.7kW
Spindle speed	SP1	6,000min-1
SP2	5,000min-1
Type of Turret	8St.Turret(half-indexing mechanism)
Shank Height of Square Turning Tool	20mm Sq.
Diameter of Drill Shank	25mm Dia.
Rapid feed rate	Z1 axis	30m/min
X1 axis	24m/min
Y1 axis	30m/min
Z2 axis	20m/min
X2 axis	20m/min
Y2 axis	12m/min
Z3 axis	20m/min
X3 axis	12m/min
Maximum Number of Revolving Tools	8
Machine Height	1,680mm
Floor Space	2,350×1,475mm
Machine Weight	3,750kg

Items

BNA-42GTY

Maximum Machining Diameter of Bar Work

SP1

42mm Dia.

SP2

34mm Dia.

Maximum Machining Length

100mm

Spindle motor(15min./Cont.)

SP1

11/7.5kW

SP2

5.5/3.7kW

Spindle speed

SP1

6,000min-1

SP2

5,000min-1

Type of Turret

8St.Turret(half-indexing mechanism)

Shank Height of Square Turning Tool

20mm Sq.

Diameter of Drill Shank

25mm Dia.

Rapid feed rate

Z1 axis

30m/min

X1 axis

24m/min

Y1 axis

30m/min

Z2 axis

20m/min

X2 axis

20m/min

Y2 axis

12m/min

Z3 axis

20m/min

X3 axis

12m/min

Maximum Number of Revolving Tools

Machine Height

1,680mm

Floor Space

2,350×1,475mm

Machine Weight

3,750kg
