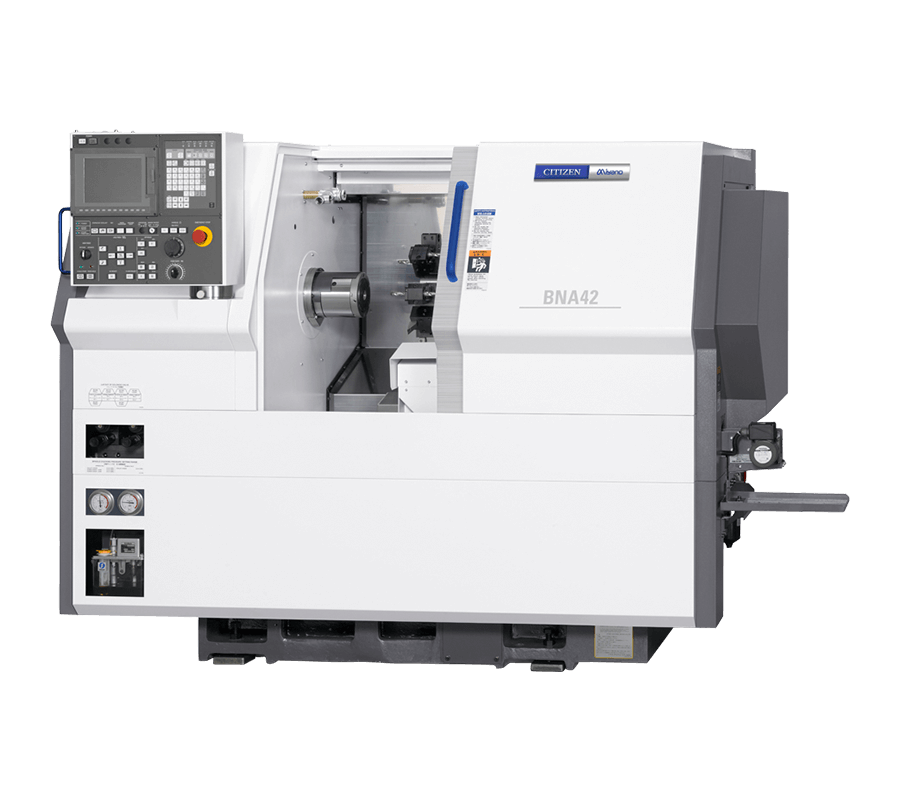

Fixed Headstock Type CNC Automatic Lathe

Miyano BNA42MSY

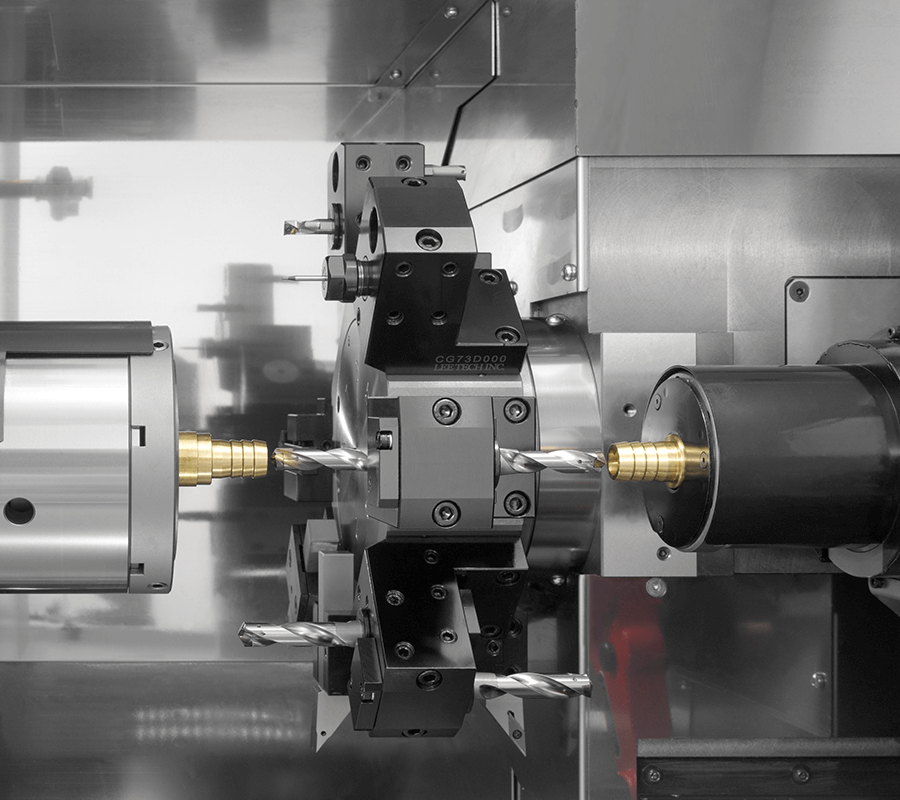

  • While it is a 2-spindle, 1-turret machine, it dramatically reduces cycle time thanks to a simultaneous machining through overlapping control
  • A half-indexing mechanism and a tool holder that can be fitted with multiple revolving tools at one position means you’ll never feel short of tools

Machine Specifications

Maximum Machining Diameter of Bar WorkSP142mm Dia.
SP234mm Dia.
Maximum Machining Length100mm
Spindle motor(15min./Cont.)SP111/7.5kW
Spindle speedSP16,000min-1
Type of Turret8St.Turret(half-indexing mechanism)
Shank Height of Square Turning Tool20mm Sq.
Diameter of Drill Shank25mm Dia.
Rapid feed rateZ1 axis20m/min
X1 axis20m/min
Y1 axis12m/min
Z2 axis20m/min
X2 axis12m/min
Maximum Number of Revolving Tool8
Machine Height1,620mm
Floor Space2,388×1,450mm
Machine Weight3,000kg
