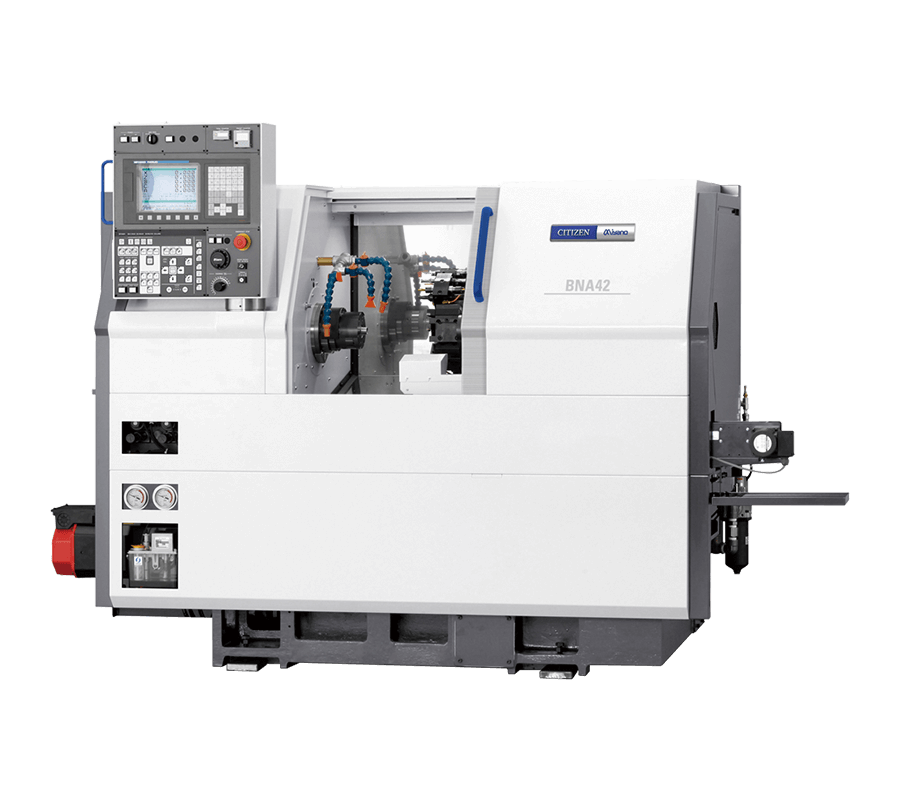

Fixed Headstock Type CNC Automatic Lathe

Miyano BNA42S

  • Miyano’s unique control technology reduces the non-cutting time by 27% (compared to conventional Miyano products)
  • Having a sub-spindle, it enables completion of products that requires front/back processing

Machine Specifications

Maximum Machining Diameter of Bar WorkSP1/SP242mm Dia./34mm Dia.
Maximum Machining Length100mm
Power ChuckSP1/SP25"/---
Spindle motor(15min./Cont.)SP17.5/5.5kW
Spindle Speed RangeSP160 - 6,000min-1
SP250 - 5,000min-1

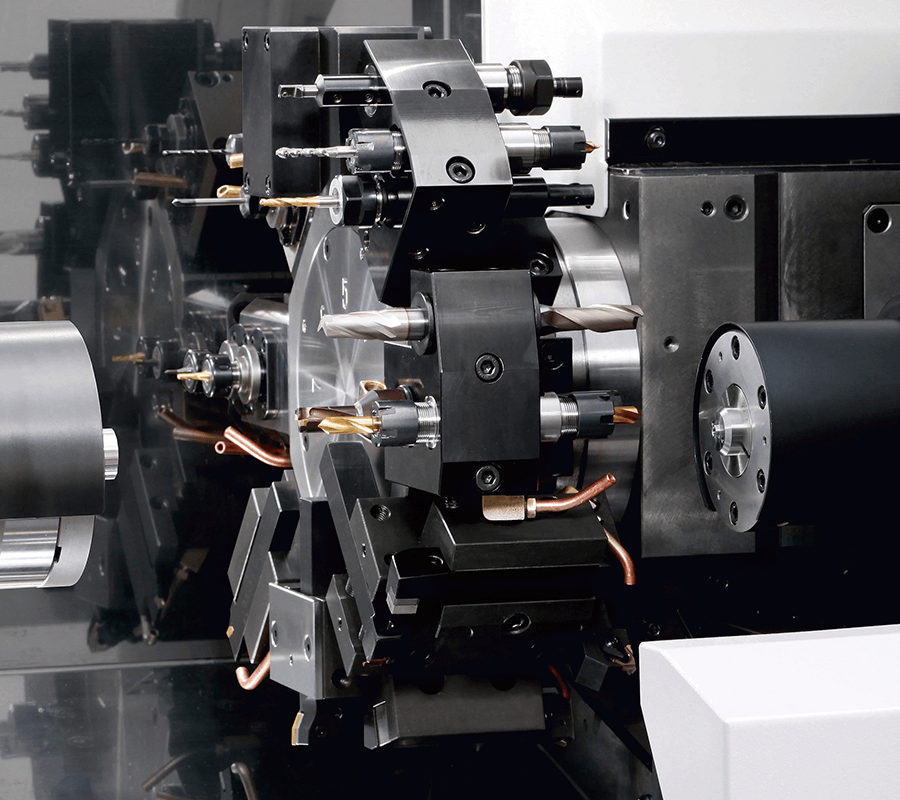

Type of Turret8St.Turret
Shank Height of Square Turning Tool20mm Sq.
Diameter of Drill Shank25mm Dia.
Slide StrokeX axis135mm
Z axis235mm
B axis(Z2 axis)310mm

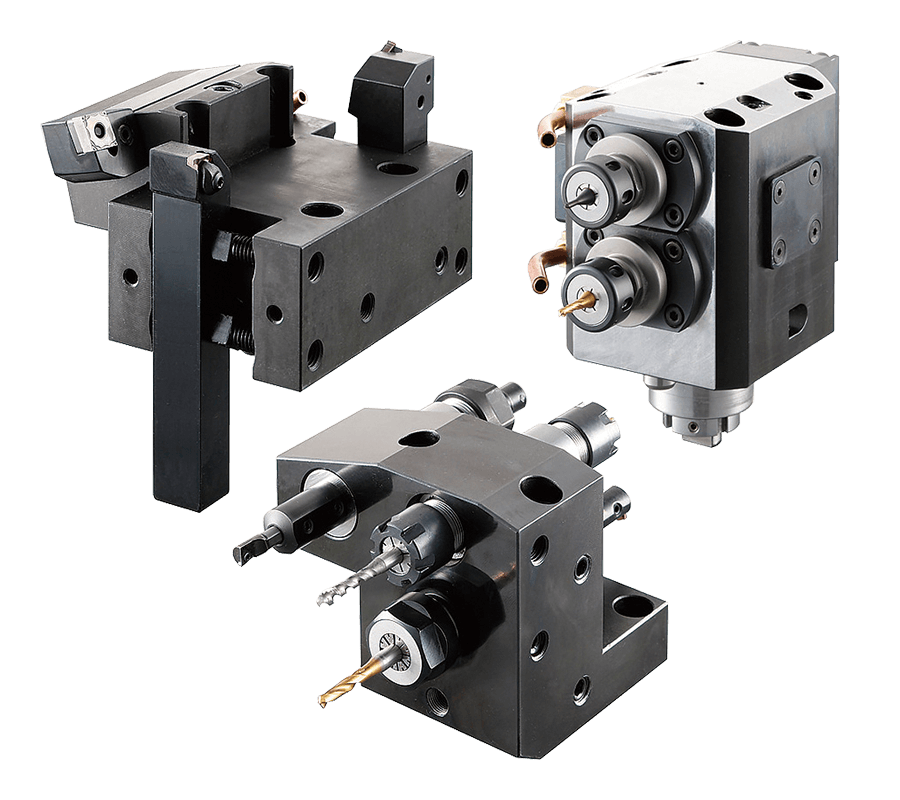

Maximum Number of Revolving Tool8
Floor Space2,150×1,290mm
Machine Height1,660mm
Machine Weight2,800kg
