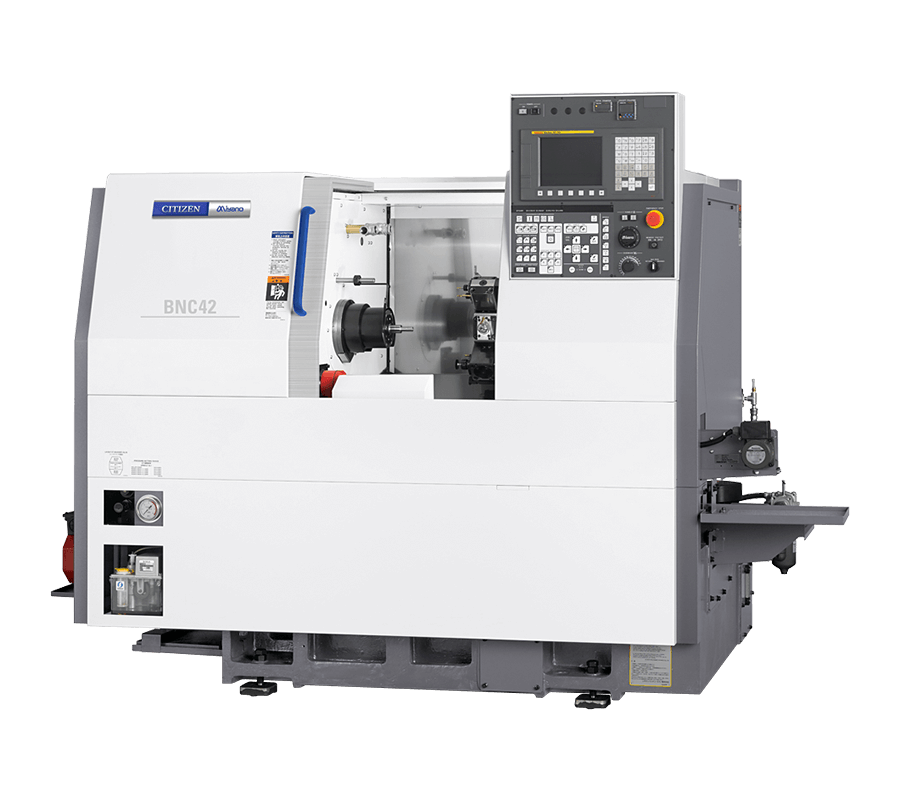

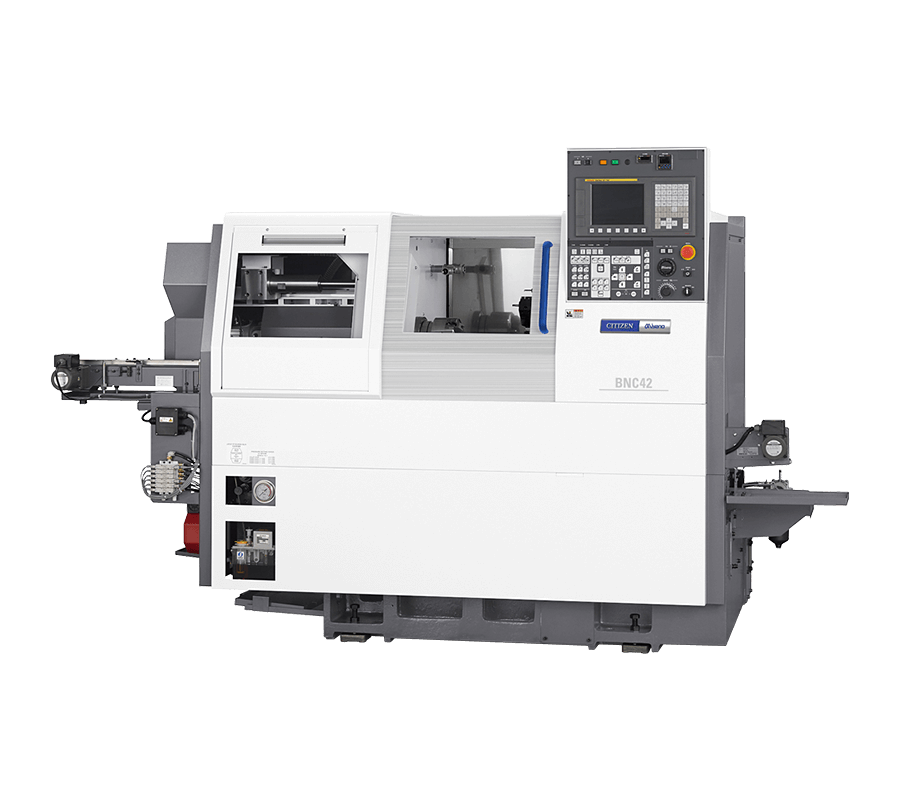

Fixed Headstock Type CNC Automatic Lathe
Machine Specifications
| Items | BNC-42C7 | ||
|---|---|---|---|
| Machining Capacity and Chuck System | Maximum Machining Diameter of Bar Work | SP1 | 42mm Dia. |
| Maximum Machining Length | *175mm | ||
| Power Chuck | SP1 | 5", 6" Hollow chuck | |
| Collet Chuck Type | SP1 | HARDINGE S20, DIN173E, B&S＃22D, JPN34 | |
| Spindle | Spindle Nose | SP1 | Special Flat Type |
| Spindle motor | SP1 | 7.5/5.5kW | |
| 15Min. Rating/Cont | |||
| Spindle Speed Range | SP1 | 60 - 6,000 min-1 | |

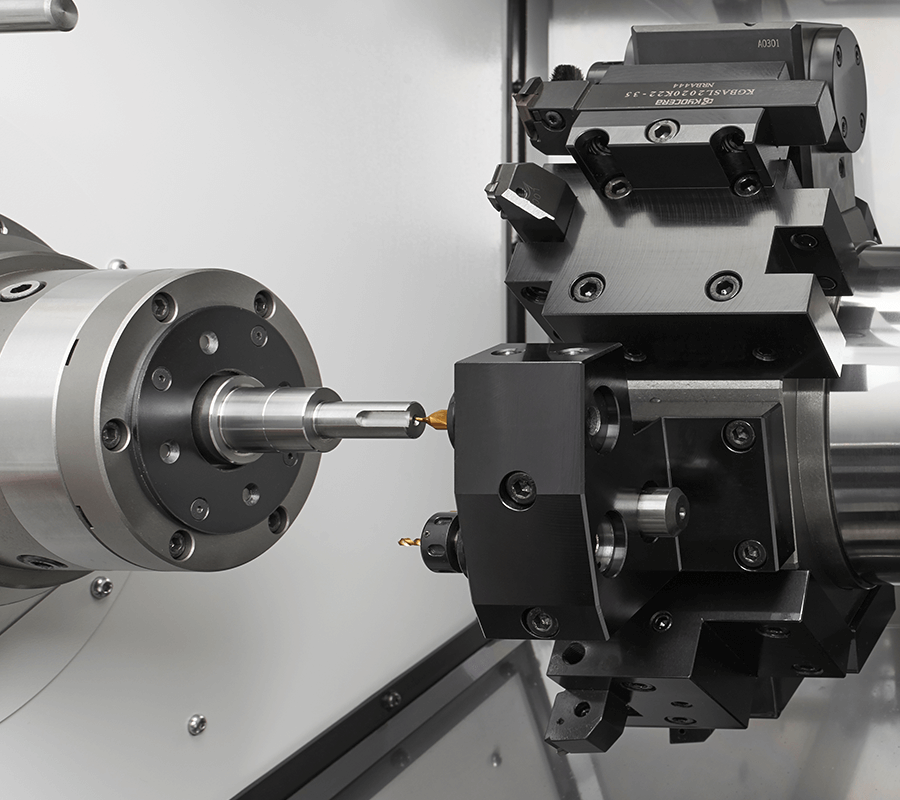

| Turret | Type of Turret | 8St.Turret | |
| Shank Height of Square Turning Tool | 20mm Sq. | ||
| Diameter of Drill Shank | 25mm Dia. 32mm Dia. | ||
| Slide Stroke | X axis | 135mm | |
| Z axis | 235mm | ||
| Turret Indexing & Clamp Method | AC Servo motor & | ||
| curvic coupling | |||
| Indexing Time | 0.2Sec./1St. | ||
| Revolving Tools(Option) | Maximum Number of Revolving Tool | 8 | |
| Tool Spindle Speed Range | 50 - 5,000 min-1 | ||
| Revolving Tool Motor | 2.8/1.0kW | ||
| Machine Dimensions | Floor Space | 2,272×1,270mm | |
| Machine Height | 1,686mm | ||
| Machine Weight | 2,400kg | ||
