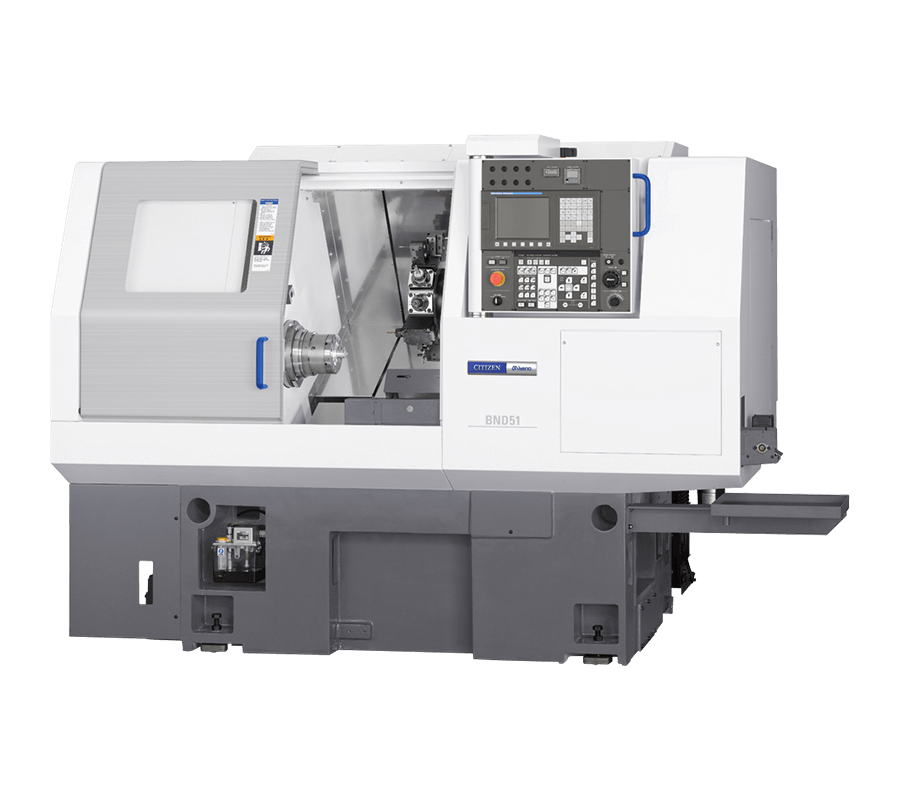

Fixed Headstock Type CNC Automatic Lathe

Miyano BND51

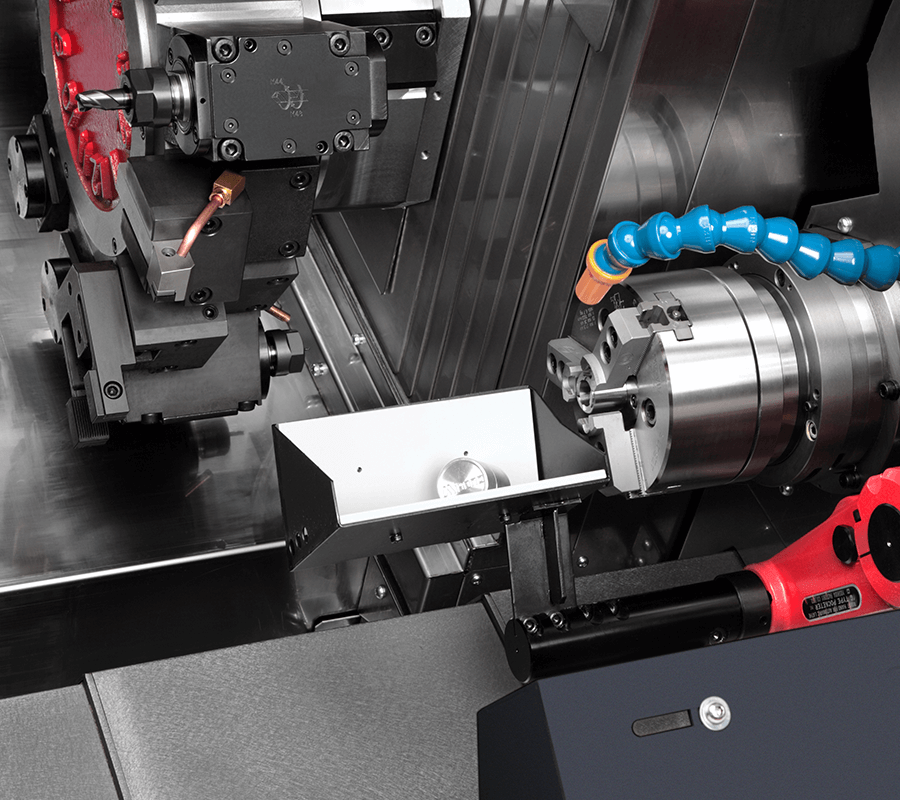

  • A rigid stable and fully synchronized Sub spindle slide ensures both performance and accuracy
  • BND51SY’s Y-axis function is more capable for complex high-value parts

Machine Specifications

Maximum Machining Diameter of Bar Work51mm Dia.
Maximum Machining LengthBar320mm
Type of Turret12St.Turret
Slide StrokeX axis175mm
Z axis435mm
Y axis+40mm/-35mm
B axis530mm
Shank Height of Square Turning Tool20mm Sq.
Tool hole diameter25mm Dia.
Maximum Number of Revolving Tool12
Main spindle speed range50 - 5,000min-1
Spindle motor(30min./Cont.)15/11kW
Machine WeightApprox.4,500kg
