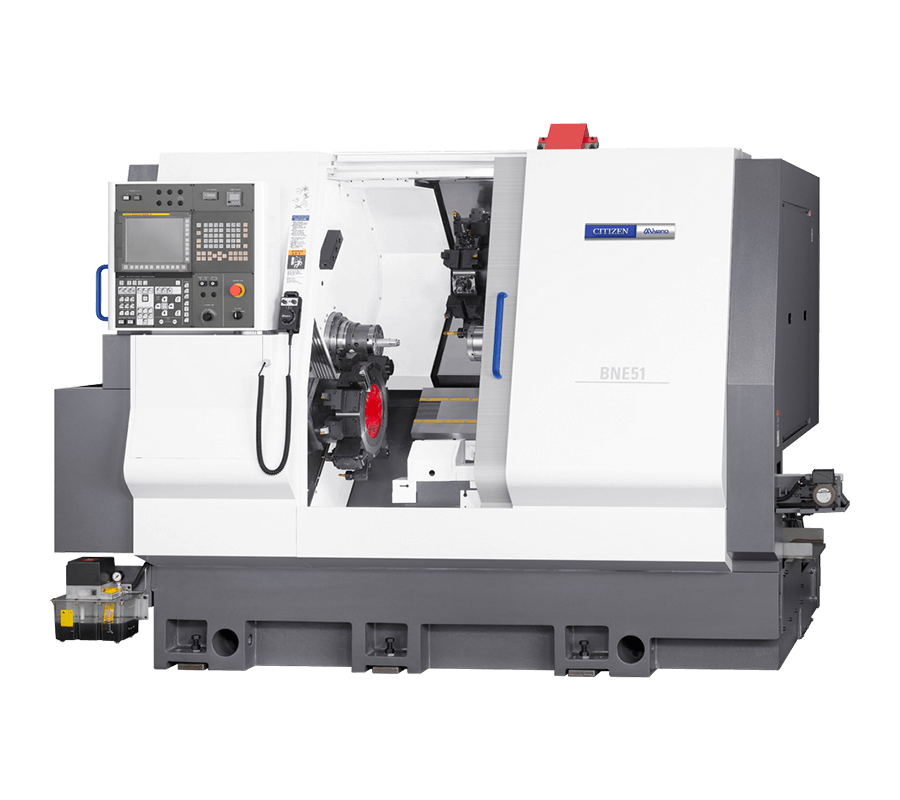

Miyano BNE42/51

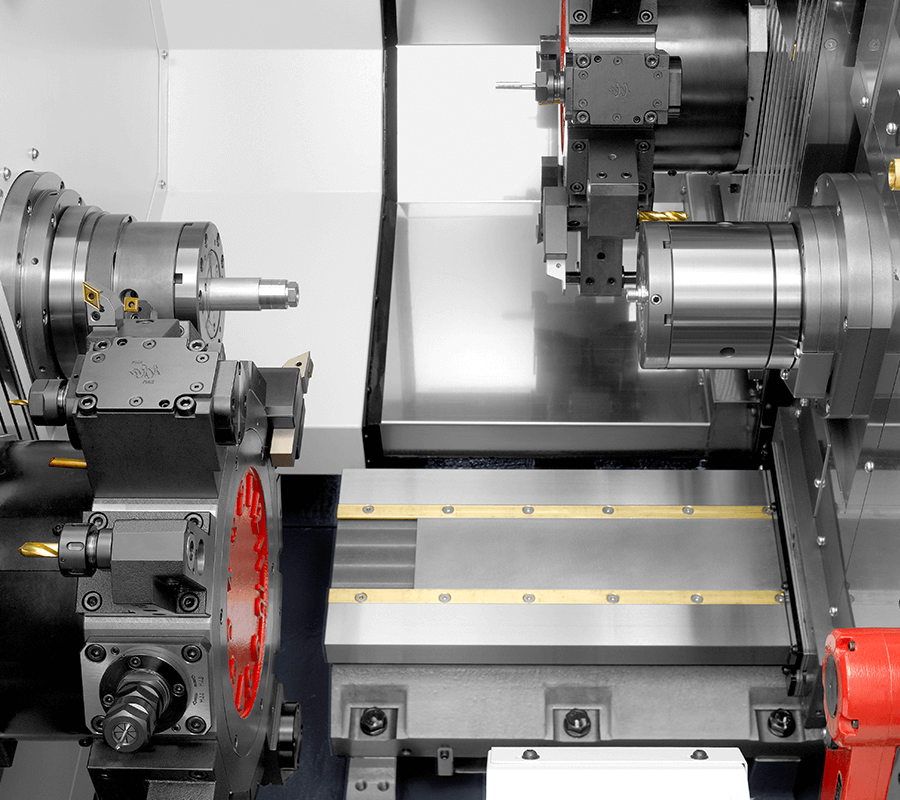

The machine structure with 2 spindles and 2 turrets makes completed machining available and realizes aggregation of processes and reduction of machining time

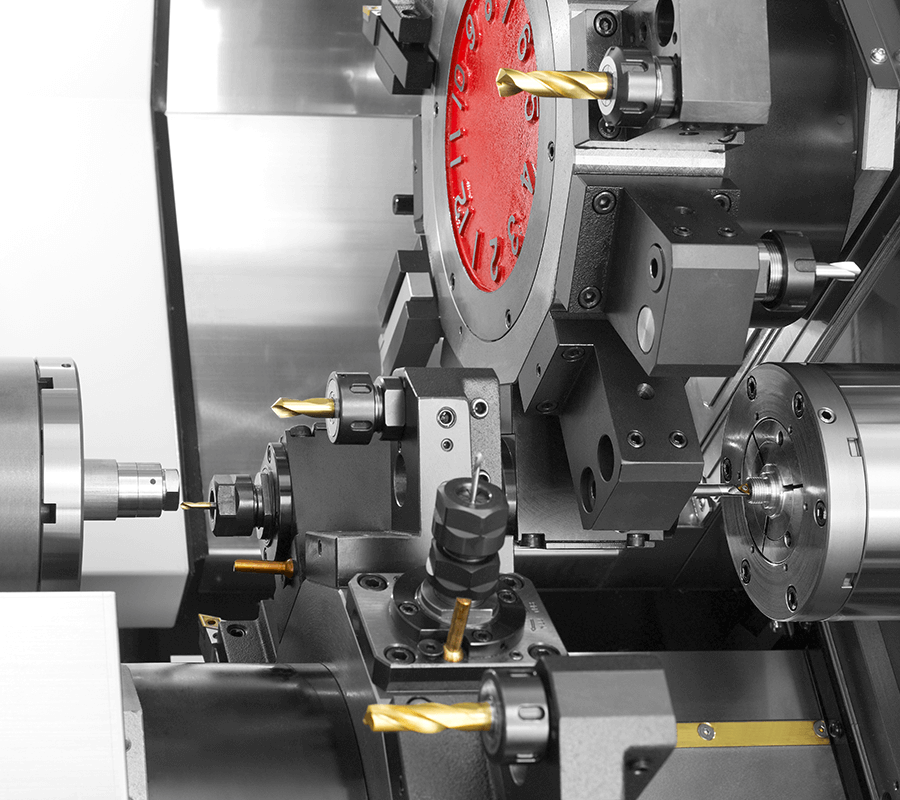

In addition to balance cutting and redundant cutting by upper and lower turrets, differential velocity cutting by rotary tools shorten machining time

Catalog Download

Machine Specifications

Items			BNE-42S6	BNE-51S6	BNE-42SY6	BNE-51SY6
Power Chuck	SP1/SP2		5"/5" hydraulic drive	6"/5" hydraulic drive	5"/5" hydraulic drive	6"/5" hydraulic drive
Maximum Machining Diameter of Bar Work	SP1		42mm Dia.	51mm Dia.	42mm Dia.	51mm Dia.
Maximum Machining Diameter of Bar Work	SP2		42mm Dia.
Standard Turning Length	SP1		90mm
Type of Turret	HD1		12St.Turret
Type of Turret	HD2		12St.Turret
Slide Stroke	HD1	X1 axis	175mm
		Z1 axis	380mm
		Y axis	-		±40mm
	HD2	X2 axis	145mm
	HD2	Z2 axis	175mm
R spindle travel			450mm
Shank Height of Square Turning Tool			20mm Sq.
Tool hole diameter			25mm Dia.
Maximum Number of Revolving Tools			12+12
Main spindle speed range	SP1		6,000min-1	5,000min-1	6,000min-1	5,000min-1
Main spindle speed range	SP2		5,000min-1
Spindle motor	SP1		15/11kW
Spindle motor	SP2		5.5/3.7kW
Machine Height			1,925mm
Floor Space			2,690×2,160mm
Machine Weight			7,600kg	7,800kg	7,600kg	7,800kg
