High Precision CNC Lathe

Miyano GN3200

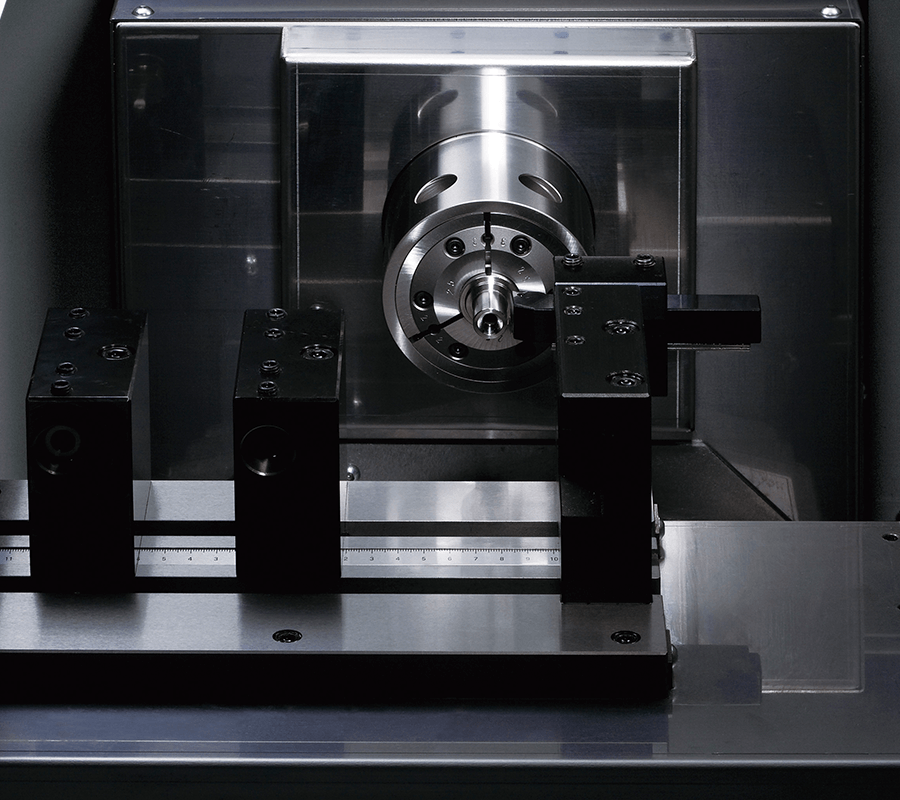

  • The single-slide mechanism that provides high damping maximizes micromotion tracking to reduce lost motions down to nearly none
  • The incorporation of a high-speed gantry loader with a loading time of 3.5 seconds and a wide choice of infeed and outfeed devices allows stand-alone automation or integration with other processes.

Machine Specifications

Machining Capacity and Chuck SystemPower ChuckPneumatic3"(4") Precision Chuck
Diaphragm ChuckPneumatic4"
Maximum diameter of Collet ChuckStationary(with Pad)35mm Dia.
Pull type(with Pad)40mm Dia.
Maximum Machining Length50mm
SpindleSpindle motor15min./cont.2.2/1.5 kW
Spindle Speed Range80 - 8,000 min-1
TurretType of TurretHorizontal Linear Turret
Shank Height of Square Turning Tool10mm Sq., 12mm Sq., 16mm Sq.
Diameter of Drill Shank20mm Dia.
Slide TravelX axis180mm
Z axis200mm
Machine DimensionsMachine Height1,600mm
Spindle Center Height875mm
Floor Space(Width × Length)700mm×1,460mm
Machine Weight(machine only)1,500kg
