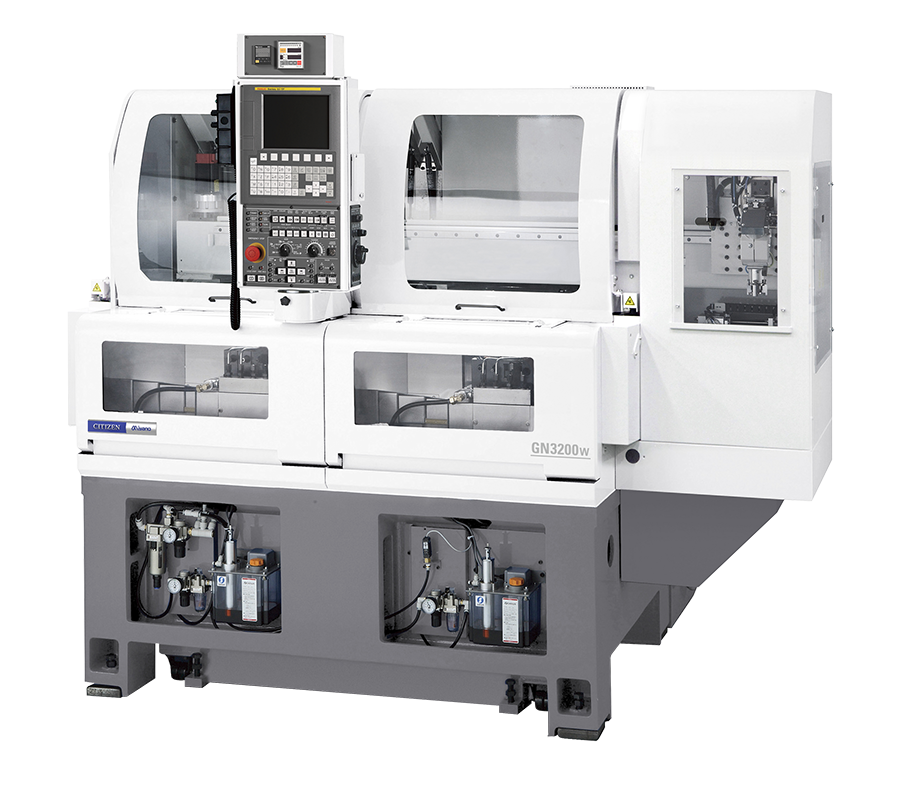

Miyano GN3200W

The GN3200W is the twin spindle version of the GN3200 which, equipped with a high speed loader, makes even higher productivity available. The machine width is 33% shorter than previous Miyano models and the required floor space has been reduced by 27%, realizing significant space saving.

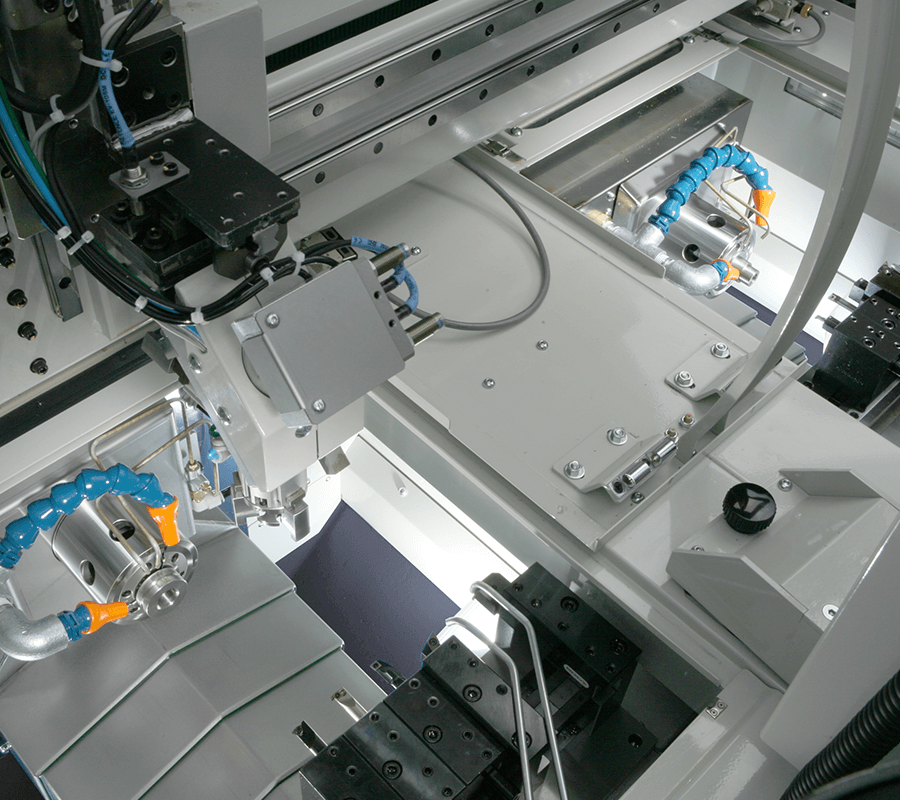

Various automation needs are met by combining peripheral devices such as the high-speed gantry loader that allows selection of either one or two 2 saddles, in/out stocker, etc

Catalog Download

Machine Specifications

Items			GN-3200W
Machining Capacity and Chuck System	Power Chuck	Pneumatic	3"(4") Precision Chuck
	Diaphragm Chuck	Pneumatic	4"
	Maximum diameter of Collet Chuck	Stationary(with Pad)	35mm Dia.
	Maximum diameter of Collet Chuck	Pull type(with Pad)	40mm Dia.
	Maximum Machining Length		50mm
Spindle	No of Turret		2
	Spindle motor(15min./cont.)	L/R-Spindle	2.2/1.5 kW
	Spindle Speed Range	L/R-Spindle	80 - 8,000min-1
Turret	No of Turret		2
	Type of Turret		Horizontal linear turret
	Shank Height of Square Turning Tool		10mm Sq., 12mm Sq., 16mm Sq.
	Diameter of Drill Shank		20mm Dia.
	Slide Travel	X1 axis, X2 axis	180mm
	Slide Travel	Z1 axis, Z2 axis	200mm
Machine Dimensions	Machine Height		1,600mm
	Spindle Center Height		875mm
	Floor Space(Width × Length)		1,400mm×1,477mm
	Machine Weight		2,650kg
