High Precision CNC Lathe

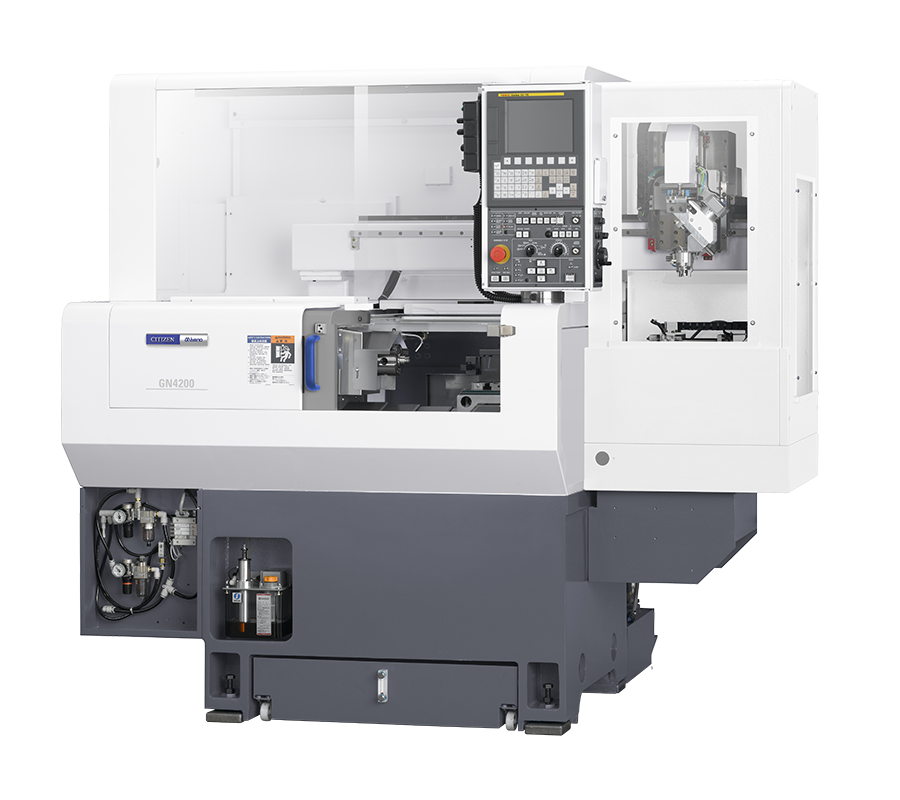

Miyano GN4200

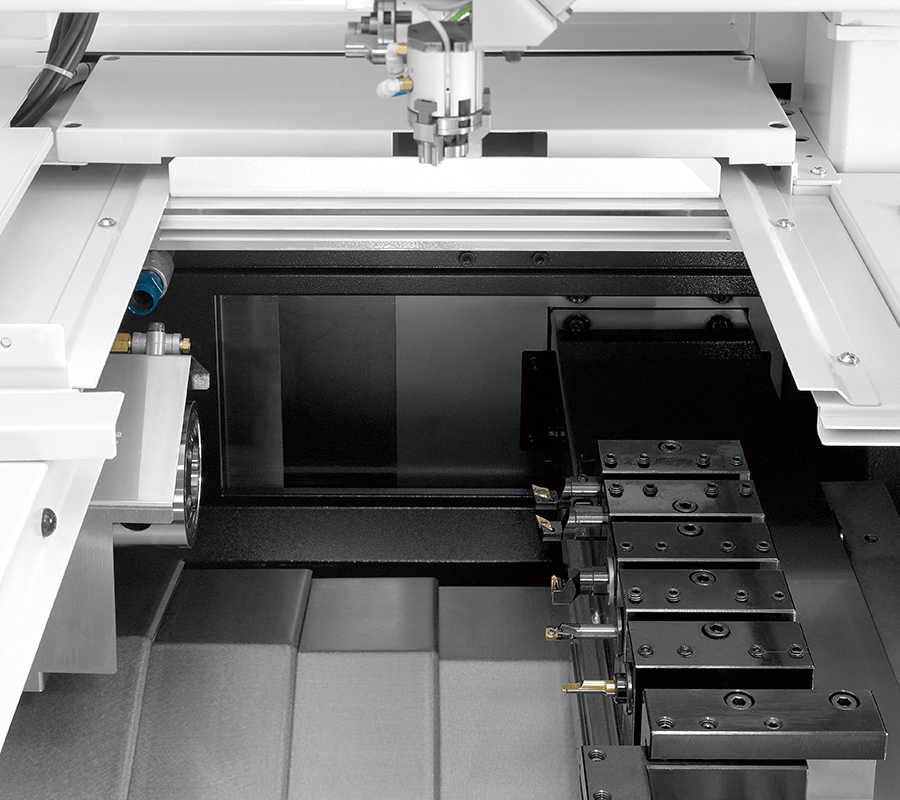

  • A tool table with an X-axis slide stroke 50 mm bigger than on existing machines allows a wide range of fixed and rotary tools to be mounted
  • Faster cycle times are achieved with quick acceleration/deceleration of axis moves over short travel distances

Machine Specifications

Machining Capacity and Chuck SystemMaximum Diameter of Collet ChuckFine Precision Air Chuck45mm Dia.
Pull Type Collet Chuck40mm Dia.(Stationary 35mm Dia.)
Maximum Machining Length80mm
SpindleSpindle motor15min./cont.5.5/3.7kW
Main spindle speed range8,000min-1
SlideType of TurretHrizontal Linear Turret
Type of SideX axisDovetail
Z axisDovetail
Slide StrokeX axis300mm
Z axis250mm
Machine DimensionsMachine Height1,695mm
Floor SpaceW1,350mm×D1,325mm
Machine Weight1,500kg

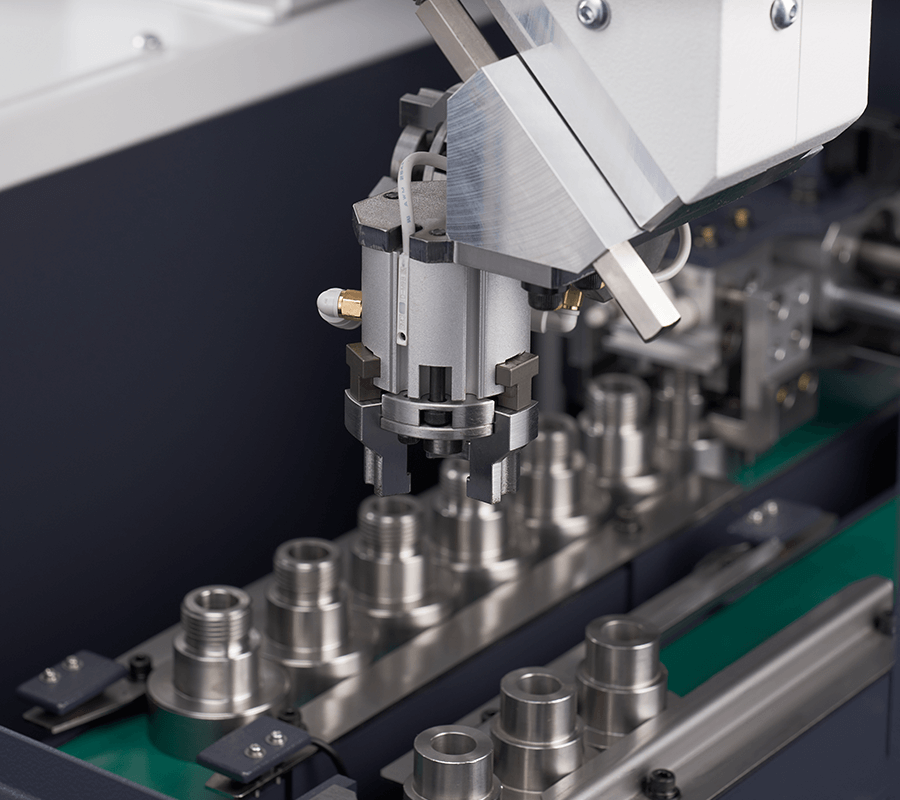

Loader SpecificationsType of Loader2-Axes Gantry Loader(2Hands)
Maximum Workpiece Size40mm Dia. × 40mm Dia.
Maximum Workpiece Weight250g
Control SystemPMC Axis Control
Control SoftFlexible Loader Control
Drive SystemRight and Left OperationRack & Pinion
Upper and Lower SidesRack & Pinion
