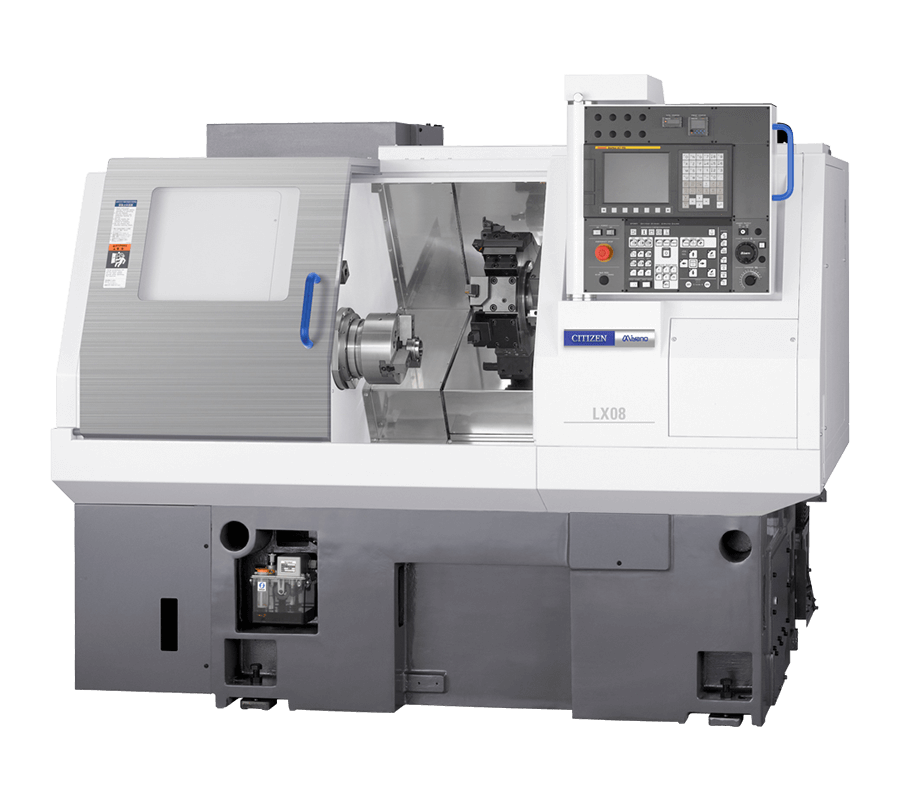

Fixed Headstock Type CNC Automatic Lathe

Miyano LX08C

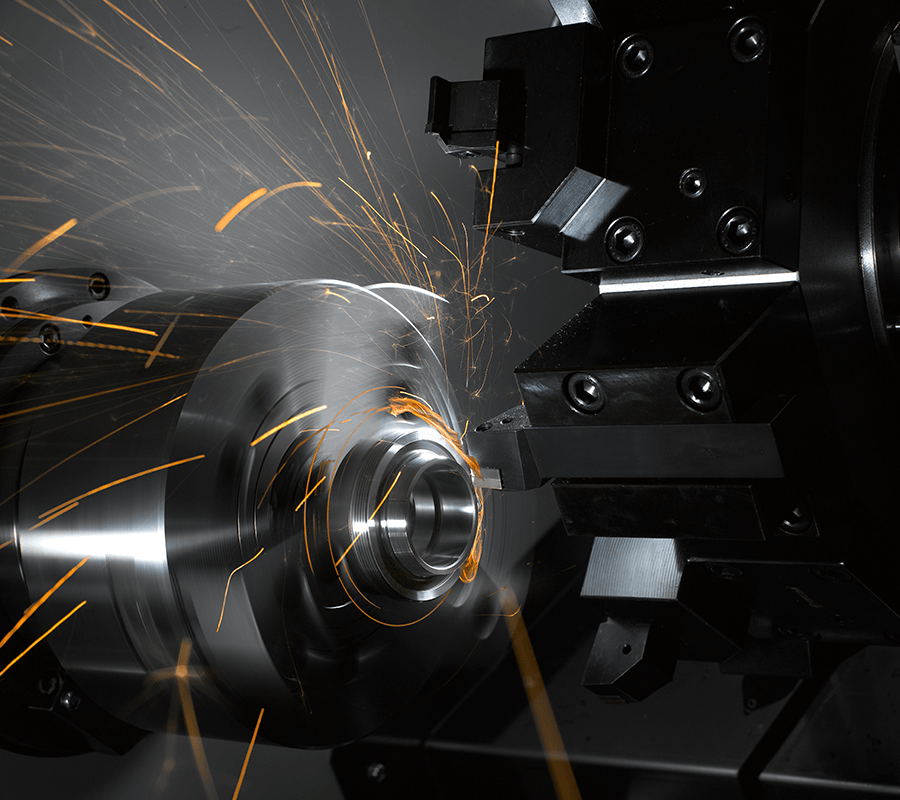

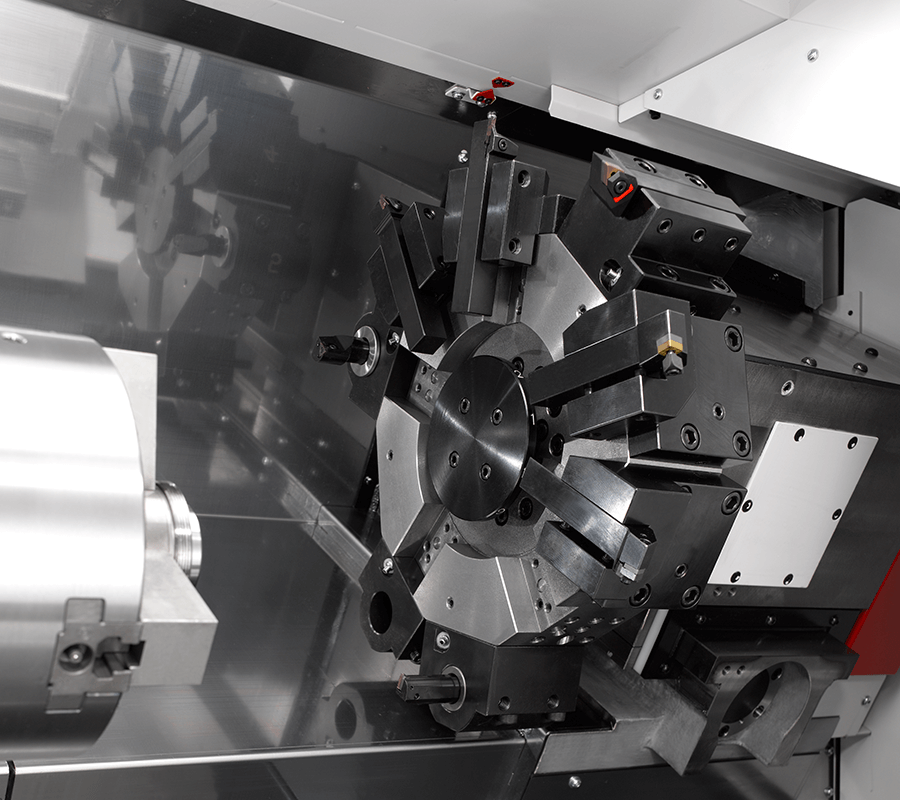

  • By having the wedge-clamp-type direct mount 10-station tool turret for 25-byte, it becomes possible to operate hard cutting

Machine Specifications

Power Chuck8"
Maximum machining diameter210mm
Maximum Machining Length320mm
Spindle Speed Range40 - 4,000 min-1
Spindle motor30min./cont.11/7.5kW
Type of Turret10St.Turret
O.D. tool mount methoddirect tool mount
Shank Height of Square Turning Tool25mm Sq.
Tool hole diameter40mm Dia.
Slide TravelX axis175mm
Z axis435mm
Tail-stock taper size(Opt.)MT4
Quill type tail-stockMax. thrust force3116N(318kgf)
Slide type tail-stockMax. thrust force5,488N(560kgf)
Floor space(machine only)2,035×1,690mm
Machine WeightApprox.4,500kg
