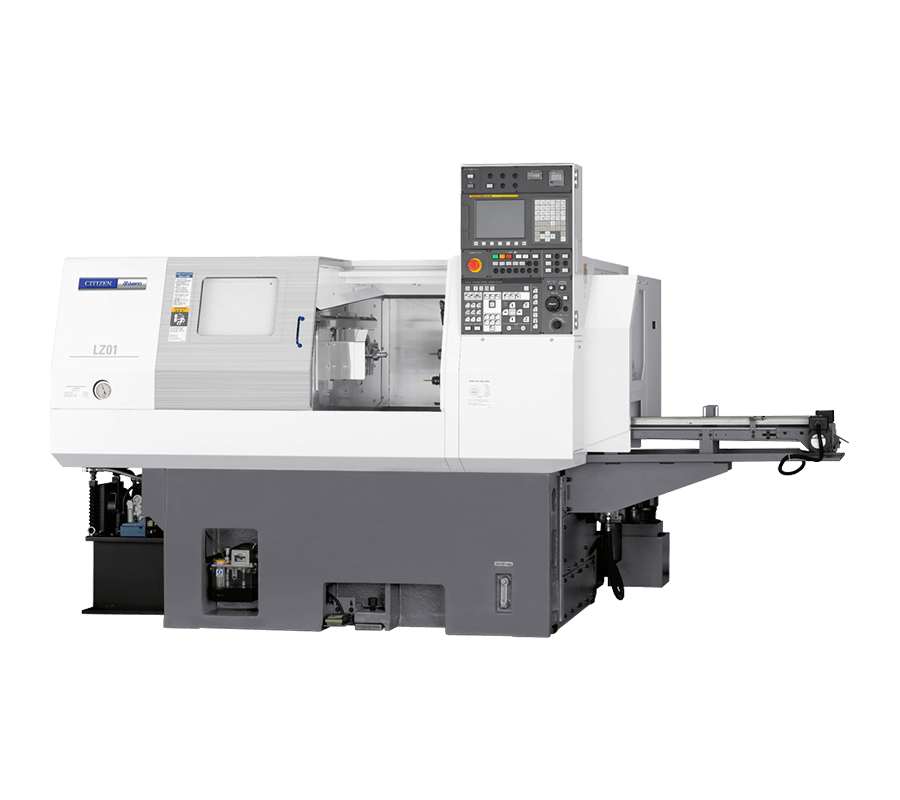

Fixed Headstock Type CNC Automatic Lathe

Miyano LZ01

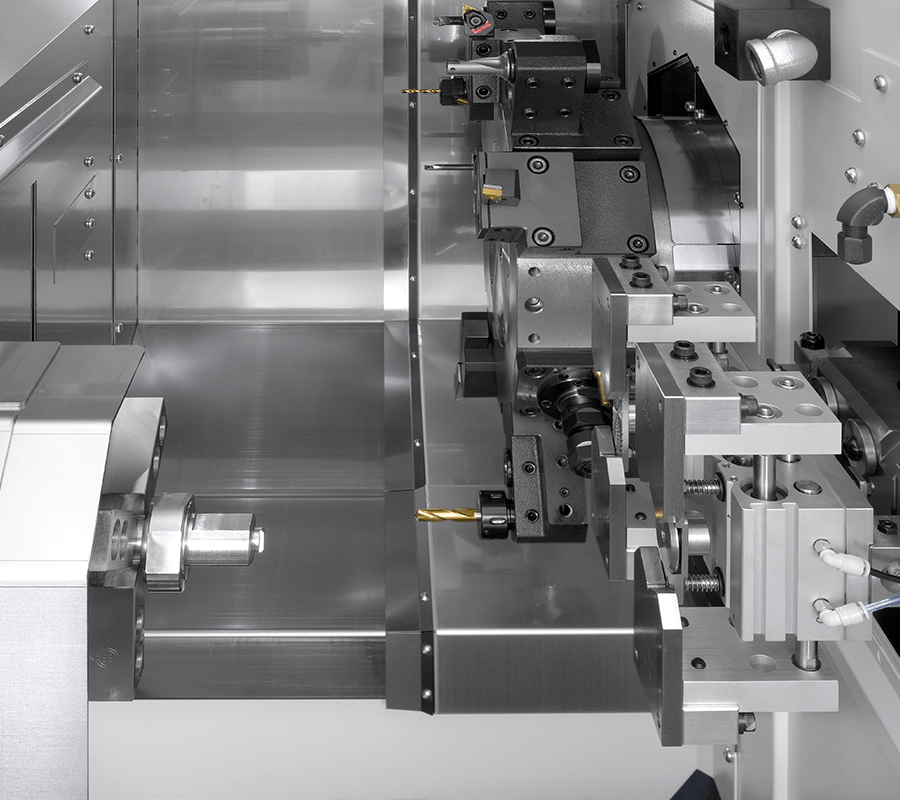

  • The tool post is a single slide with a y-axis (01RY) mechanism only that achieves both rigidity and high-speed travel with the x-axis as the main axis and a linear guide for the z-axis

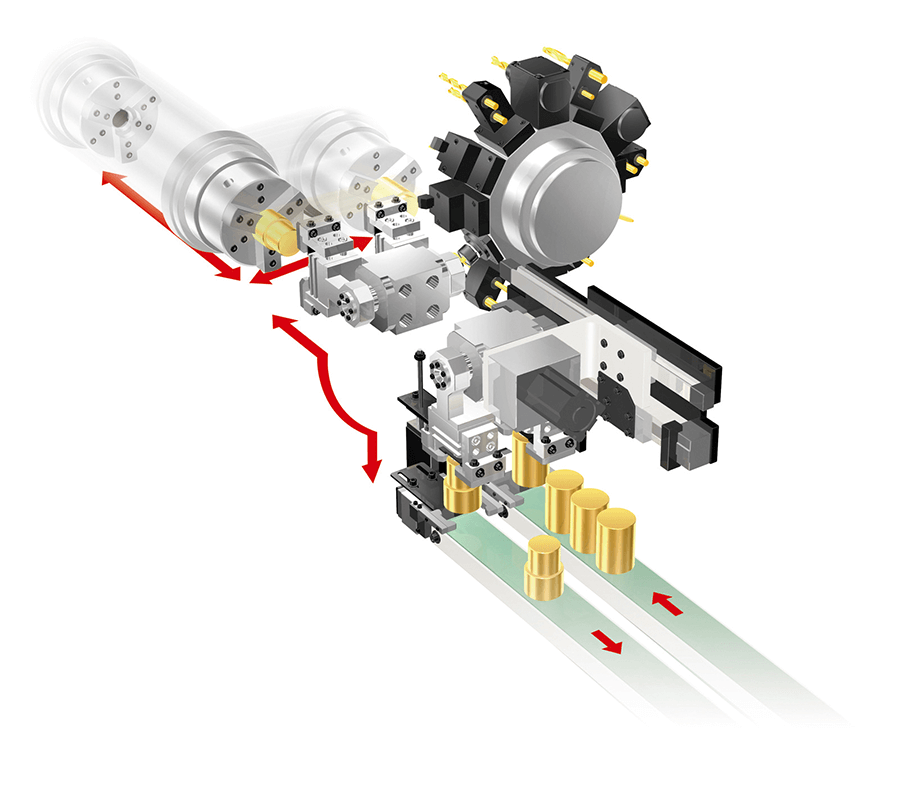

  • A wide range of automation needs are met using an enhanced system configuration centered on the loader head

Machine Specifications

Power chuck size6" hydraulic drive
Maximum turning diameter/Power chuck70mm Dia.
Maximum diameter of Collet Chuck(Stationary type)50mm Dia.
Maximum Machining Length80mm
Main spindle speed range60 - 6,000min-1
Main spindle motor7.5/5.5kW
Main spindle slide travelX axis245mm
Z axis240mm
Type of Turret12St.Turret
Shank Height of Square Turning Tool20mm Sq.
Tool hole diameter25mm Dia.
Maximum Number of Revolving Tools6
Slide StrokeY axis-±35mm
Maximum work size70mm Dia.×80mm Dia.
Maximum work weight0.7kg×2
Machine Height1,680mm
Floor Space2,100×1,555mm
Machine WeightApprox.3,600kg4,000kg
