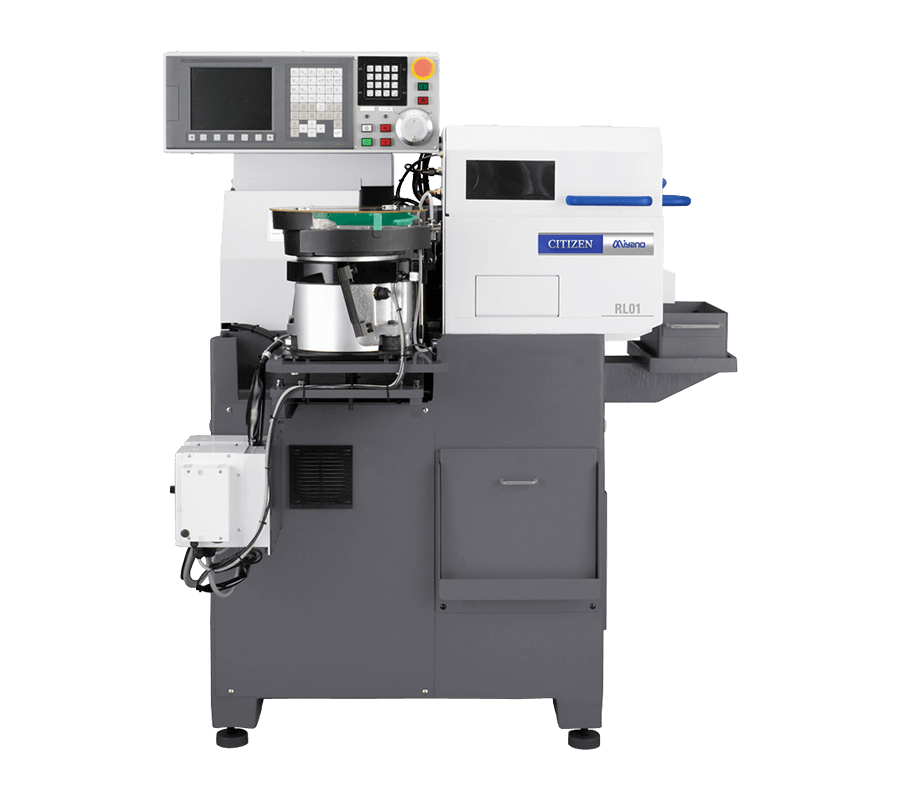

High Precision CNC Lathe
Machine Specifications
| Items | RL01 Ⅲ | RL01 Ⅴ | ||
|---|---|---|---|---|
| Machining Capacity and Chuck System | Maximum machining diameter | 10mm | ||
| Maximum Machining Length | (L) | 50mm | ||
| Maximum Front drilling Diameter | 5mm Dia.(BSBM) | 6mm Dia.(BSBM) | ||
| Maximum Front Tapping Diameter | M5(BSBM) | M6(BSBM) | ||
| Collet Chuck | Pull Type(standard) | |||
| Stationary Type(Option) | ||||
| Diaphram Chuck | 3”Pneumatic(Option) | |||
| Spindle | Spindle motor | 0.4kW(inverter) | 0.55kW/1.1kW(AC Spindle) | |
| Spindle Speed Range | 360 - 6,000min-1 | |||

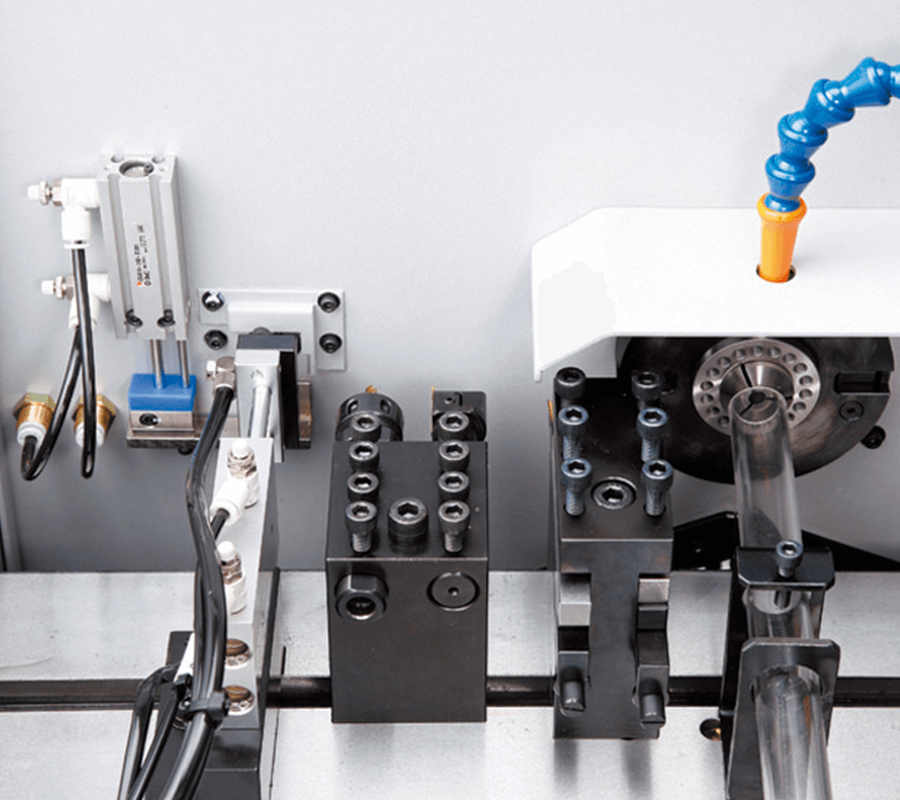

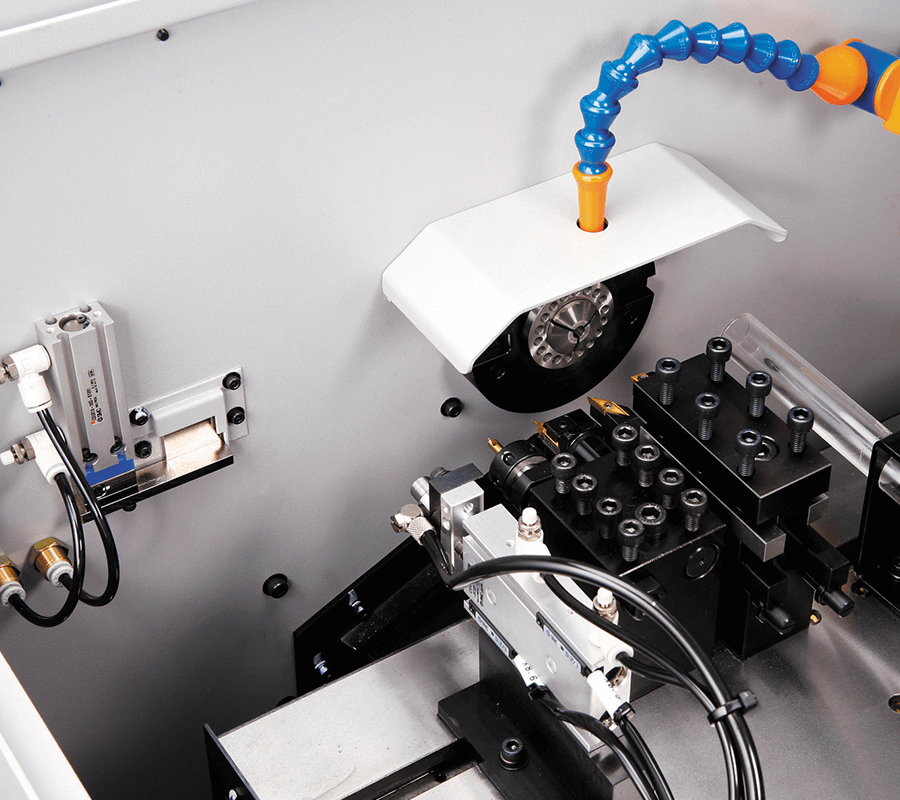

| Turret | Type of Turret | Hrizontal Linear Turret | ||
| Number of Tools to be Mounted | 4(standard) | |||
| Shank Height of Square Turning Tool | 10mm Sq. | |||
| Diameter of Drill Shank | 16mm Dia. | |||
| Slide Travel | X axis | 170mm | ||
| Z axis | 80mm | |||
| Machine Dimensions | Machine Height | 1,430mm | ||
| Spindle Center Height | 1,050mm | |||
| Floor Spase(Width × Length) | 1,210mm×985mm | |||
| Machine Weight(Machine Body) | 700kg | |||
| Traverse Perfomance(Maximum Workpiece Size) | 10mm Dia.×50mm | |||
