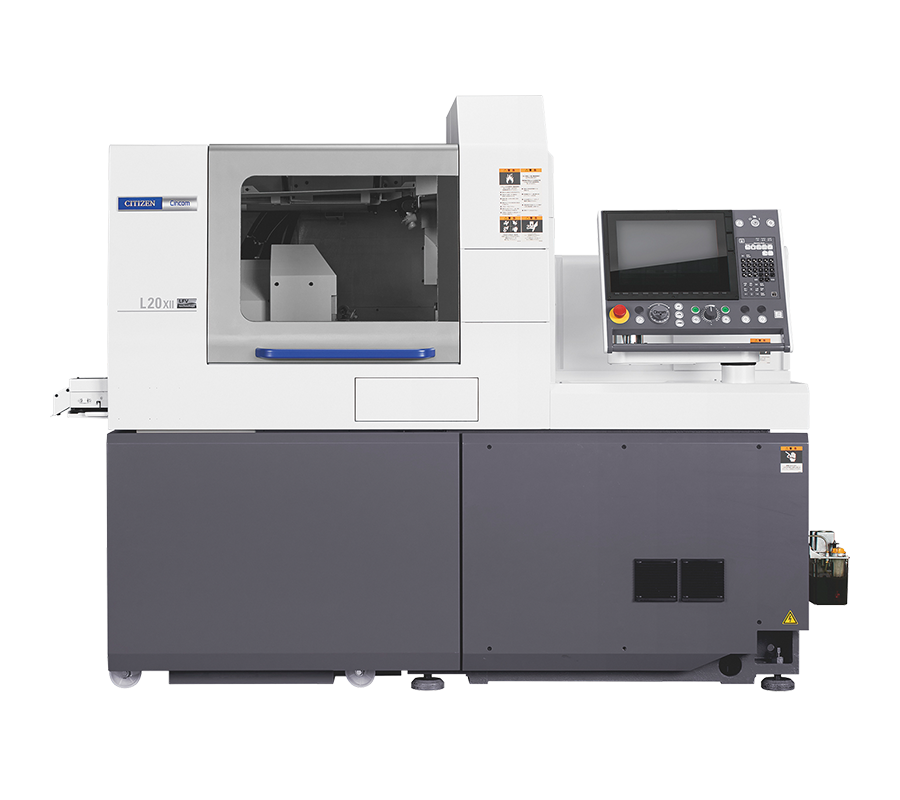

Cincom L20XIIB5

Cincom’s best-selling L series machines have been relaunched with exciting new functions.

The L20XIIB5 finally enables simultaneous 5-axis control, greatly expanding the machining range of CNC automatic lathes. Improved basic performance, along with great advances in ease of use.

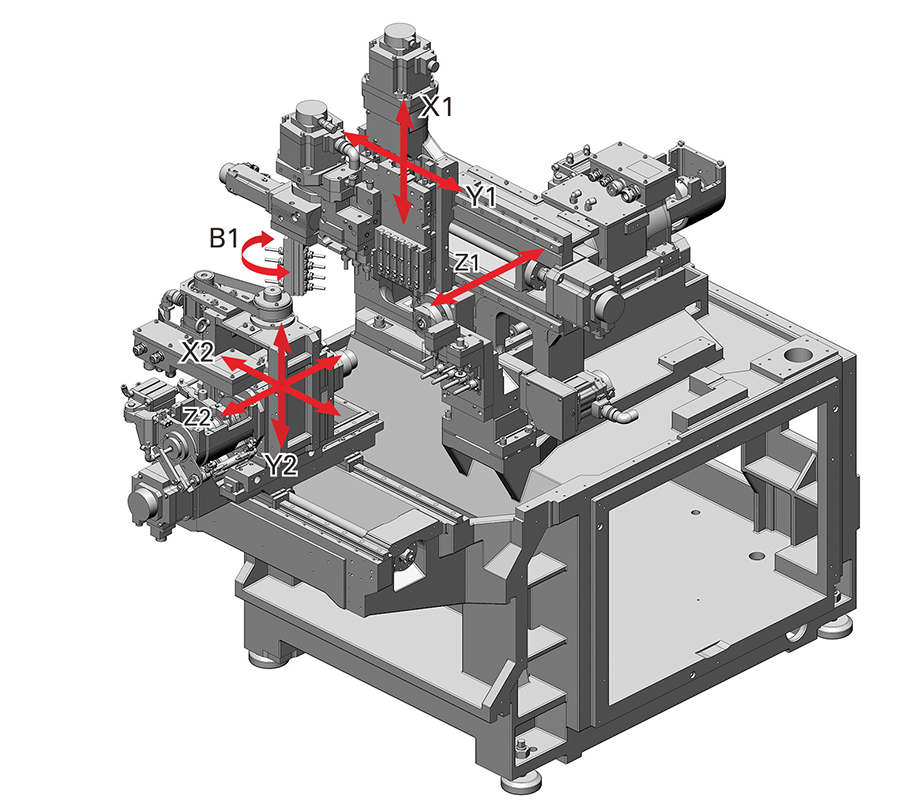

The latest NC unit is installed. This enables simultaneous 5-axis control, and machining of contoured surfaces with highly flexible tool movements.

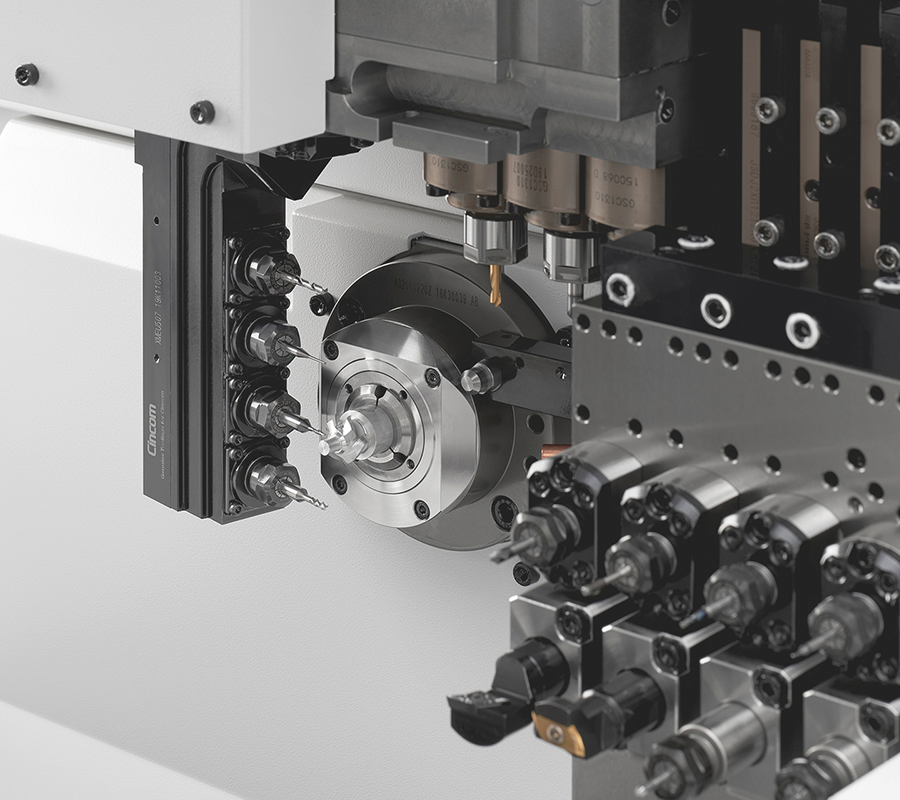

B-axis tools expand the machining range for the front spindle to 110°. This allows more complex machining with higher accuracy.

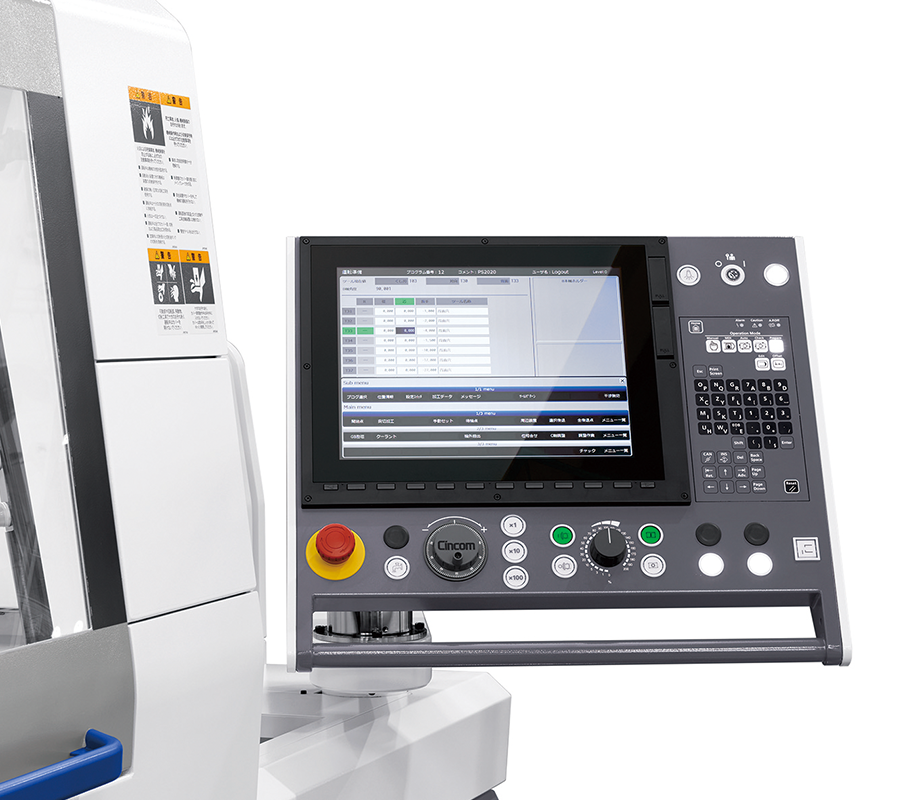

A15-inch touch panel is adopted, and the new HMI (Human Machine Interface) enables intuitive operation.
The cutting room door is a flip-up type with a built-in damper, and provides a wide opening for good operating convenience.The larger window also improves visibility when the door is closed.
Motor-driven knock-out devices, loaders/unloaders, ATC units, servo-driven chucking devices, etc., are available. Peripheral units with greater ease of use support factory automation.

Catalog Download

Machine Specifications

Item		L20XIIB5
Max.machining diameter		20mm Dia.(25mm Dia.OP.)
Max.machining length	GB 20mm Dia.spec.	200mm per chucking
	GB 25mm Dia. spec.	188mm per chucking
	GBL	Max.50mm per chucking (GBL)
Max.front drilling diameter		10mm Dia.
Max.front tapping diameter		M8 (cutting tap)
Spindle through-hole diameter		26.4mm Dia.
Spindle speed		Max10,000min-1
Max.taking-out length of the product		130mm
Max.drilling diameter in back machining		8mm Dia.
Max.tapping diameter in back machining		M8
Back spindle speed		Max.10,000min-1
Rotary tools on the gang tool post	Maximum drilling diameter	8mm Dia.
	Max. tapping diameter	M6 (cutting tap)
	Spindle speed	Max.9,000min-1（rated speed: 9,000min-1）
Rotary tools on the opposite tool post*	Maximum drilling diameter	5mm Dia.
	Max.tapping diameter	M4 (cutting tap)
	Spindle speed	Max.7,500min-1（rated speed: 6,000min-1）
Back rotary tool	Maximum drilling diameter	5mm Dia.
	Max. tapping diameter	M4 (cutting tap)
	Spindle speed	Max.7,500min-1（rated speed: 6,000min-1）
Number of mountable tools	Max.	41
	Turning tools on the gang tool post	6
	Rotary tools on the gang tool post	21
	Front drilling tools	6
	Back drilling tools	8
Tool size	Turning tools	12 mm Sq. (13mm Sq., 16mm Sq.）
Tool size	Sleeve	19.05mm Dia.
Rapid traverse rate	X1,Y1,Z1,X2,Z2 axis	32m/min
Rapid traverse rate	Y2 axis	8m/min
Motor	For front spindle drive	2.2/3.7/5.5kW (continuous/15 minute/10%ED ratings)
Motor	For back spindle drive	1.5/2.2/3.7kW (continuous/40%ED/10%ED ratings)
Rated power consumption		8.3kVA
Load operation average power		4.5kVA
Machine body dimensions		W2,222 × D1,265 × H1,835mm
Machine weight		2,680kg

*Rotary tools on the opposite tool post are optional.
